- Page 1 PGE-W series Crane Scale Technical Manual V1.19F...
-
Page 2: Table Of Contents
PGE-W series crane scale Technical Manual CONTENTS Dimensions Specifications Introduction. And features Precautions Installation Battery and Charging Name and function Operation 1. Basic operation ...7 2. Auto Sleep ...7 Functions & Descriptions a. Parameter Settings b. Calibration c. Error Codes ..10 d. -
Page 3: Dimensions
PGE-W series crane scale Technical Manual 1. DIMENSIONS PGE-W2 10.6” 6.8” 1.97” 1.85” 24” PGE-W5 11.7” 7.3” 1.97” 1.97” 29” PGE-W10 11.7” 7.3” 2.17” 2.75” 33” - 1 -... -
Page 4: Specifications
PGE-W series crane scale Technical Manual 2. SPECIFICATIONS Model # PGE-W2 PGE-W5 PGE-W10 Maximum Capacity 2000Kg/4400lb 5000Kg/11000lb 10000Kg/22000 Resolution 1:80000 1:80000 1:80000 Minimum 1kg/.5lb 2kg/1lb 2kg/5lb 14-104 Operating Temps 14-104 degrees 14-104 degrees degrees Power 9v/800mA 9v/800mA 9v/800mA Display 1.2” LED Display Unit of Measure Lb/ Kg Shipping Weight... -
Page 5: Introduction. And Features
PGE-W series crane scale Technical Manual 3. INTRODUCTION & FEATURES This service manual is for the PGE-W Crane scale. High accuracy analog to digital converter • Using Rocker and Micro switch keys. • Non volatile memory for system parameters and calibration data. •... -
Page 6: Installation
PGE-W series crane scale Technical Manual 5. INSTALLATION The location must be such that the instrument is not subject to excessive vibrations, heat or humidity. Avoid direct sunlight on the front of the instrument. The unit has to be installed at the right height to allow an easy reading of the display and convenient keyboard operation. -
Page 7: Name And Function

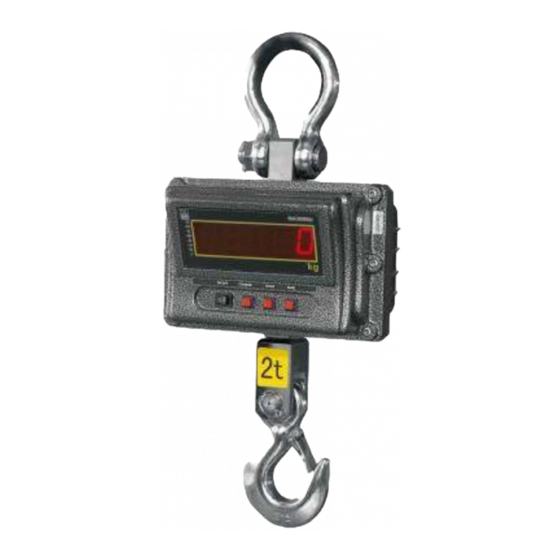

PGE-W series crane scale Technical Manual 7. NAME AND FUNCTION Loop Display Key Board Load Housing Hook Display DISPLAY : Displays weight or messages. HOLD LAMP : Indicates that the hold feature has been activated. • STABLE : Indicates that the scale is stable •... - Page 8 PGE-W series crane scale Technical Manual Remote REMOTE CONTROLLER PGE-W series crane scale come with 4 keys at the remote controller. 3 key function is same on the crane scale, one key is standby (no function) Please pull out the antenna before operate the remote controller The remote controller operates up to a distance of around 75 feet, but this is dependant on the operating environment.
-
Page 9: Operation
PGE-W series crane scale Technical Manual 8. OPERATION 1. Basic Operation A. Power on and off Please press ON/OFF key before you operate this scale, and if you want to switch off press ON/OFF key again. B. Zero the scale When there is no item on the scale but reading is not zero, press the Zero key to make re-zero reading. -
Page 10: Functions & Descriptions
PGE-W series crane scale Technical Manual 8. FUNCTIONS & DESCRIPTIONS 9. A. PARAMETER SETTINGS Turn on the scale. Press ZERO and CHANGE keys both during the self checking. Display will show “ P1---“. Then want to press password. use HOLD key to move the active digit, use CHANGE key to increment a digit, use ZERO key to sure, default password is “000”, Display will shows “F0 di”, scale enter setting mode, after enter mode, use CHANGE key to shift parameter items, use ZERO key to... -
Page 11: Calibration
PGE-W series crane scale Technical Manual F7 ci Set new password P1--- F8 cl Calibrate, Unld calibrate weight load complete See detail in Calibration 9. B. CALIBRATION 1) Turn ON the Scale. 2) Press ZERO and CHANGE keys both during self checking. Display shows “P1---”, waiting for password. -
Page 12: Error Codes
PGE-W series crane scale Technical Manual 9. C. ERROR CODES Error Message Description Solution ----- Maximum load exceeded Unload or reduce weight Err 4 Zero setting error Zero setting range exceeded due to switching on.(4%max) Make sure platform empty. Err 5 Key board error Check the keys and connecter. -
Page 13: Drawing
PGE-W series crane scale Technical Manual 8. D. DRAWING Parts Name Material Spec Loop Back Cover Screw(internal hexagon) M4x10 Washer Overlay PCBA Power Switch Function Switch Screw M6x15 Front Cover Load Cell Screw M4x10 Battery Bar Battery Lead Acid Battery Cover Screw M4x8 - 11 -... - Page 14 PGE-W series crane scale Technical Manual B-TEK Scales 1510 Metric Avenue SW Canton, OH 44706 Tel: (330) 471-8900 Fax: (330) 471-8909 www.B-TEK.com - 12 -...
