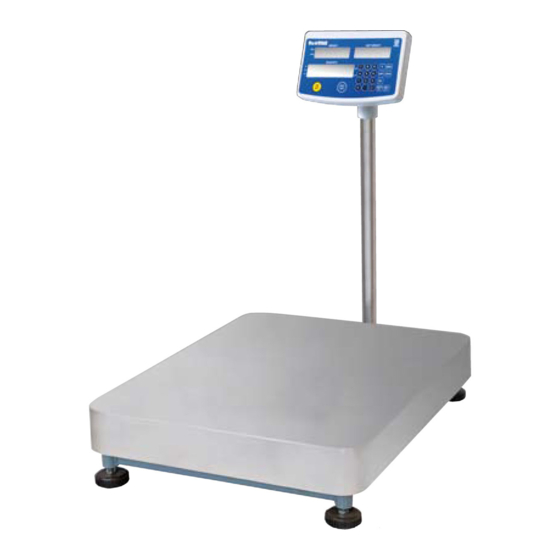

- Page 1 C200 Series Bench Scales User’s guide V-1.19...
-
Page 3: Table Of Contents
C200 series bench scales service manual CONTENTS SECTION 1 SPECIFICATIONS……………………………………………………..…….1 1.1 General specifications………………………………………………………….1 1.2 Standard Models………………………………………………………………..1 SECTION 2 UNPACKING & INSTALLATION…………………………………………….2 2.1 Unpacking………………………………………………………………………2 2.2 Installing the scale………………………………………………………………..2 2.3 To level the scale………………………………………………………………..2 2.4 Load cell connector……………………………………………………………..3 2.5 Performance test………………………………………………………………..3 2.6 Installation precautions…………………………………………………………3 SECTION 3 OPERATION KEY FUNCTION………………………………………………4 SECTION 4 BEEP SIGNALS AND CONDITION SYMBOLS…………………………...5 4.1 Message by beep………………………………………………………………..5... - Page 4 C200 series bench scales service manual SECTION 7 FACTORY MODE AND CALIBRATE………… ………..……………………..11 7.1 Enter factory mode……………………………...………………....…….11 7 . 2 Ty p e s e t t i n g … … … … … … … … … … … … … . … … … … … … … 11 7.3 Calibra te………………….……...
-
Page 5: Section 1 Specifications
C200 series bench scales service manual SECTION1. SPECIFICATIONS 1.1 General Specifications Measuring System : strain gauge load cell system Accumulation function : accumulate times and accumulate total weight Limit Function : user can input low limit and low limit by numeric keyboard, 3 checkweighing alarm mode selectable. -
Page 6: Section 2 Unpacking & Installation
C200 series bench scales service manual SECTION 2. UNPACKING & INSTALLATION 2. 1. Unpacking Unpack the container carefully. Examine the packaging and the device for any damage, and report it to the shipper if there is any. Try to keep the scale upright. -
Page 7: Load Cell Connector
C200 series bench scales service manual 2.4 Load cell connect Load cell connect as below ( 5pin air connecter) EXC+ SEN+ SIG+ SIG- LOAD CELL SEN- SHIELD EXC- 2.5 Performance Test 1. Connect the AC adapter at the rear of the scale, then plug the cord in line outlet． 2. -
Page 8: Section 3 Operation Key Function
C200 series bench scales service manual SECTION 3. OPERATION KEY FUNCTIONS ON/OFF : ON/OFF key for the balance. TARE/ZERO : when current weight less than 2% of capacity, do zero operate, when current weight more than 2% of capacity, do tare operate, in setting mode, used to parameter change 0~9 ·... -
Page 9: Section 4 Beep Signals And Condition Symbols
C200 series bench scales service manual SECTION 4 BEEP SIGNALS AND CONDITION SYMBOLS C200 signals, various messages by four different beep signals and four symbolic letter as shown as below. These signals and symbol tell you; (a) instruction to the next operation, (b) warning for faulty operation, ( c ) indication of unsuitable data, (d) indication of measuring condition. -
Page 10: Section 5 Operation
C200 series bench scales service manual SECTION 5. OPERATION 5. 1 General instruction 1．When battery goes low, the indicator will be half automatically. It is the time to charge the battery with the AC power. If C200 goes on being used without proper charging, the display window will show “BAT LO”... -
Page 11: Entering A Known Unit Weight
C200 series bench scales service manual Zero the scale by pressing the ZERO/TARE key if necessary. If a container is to be used, place the container on the scale and tare as discussed earlier. Place a known quantity of items on the scale. After the weight display is stable enter the quantity of items using the numeric keys followed by SMPL SET key. -
Page 12: Limit Set And Comparing
C200 series bench scales service manual 5. 5 Limit set and Comparing 5.5.1 Limit Set Before use this function, please be sure limit function must be set enable ( see detail in parameter (F0. sel) setting table), you can set either one point or two points limit. Press LMT key. -
Page 13: Section 6 Function Setting And Calibrate
C200 series bench scales service manual SECTION 6 FUNCTION SETTINGS 6. 1 Enter function setting mode 1) Hold MODE key until LOW/TOTAL display shows “ Fset “ . 2) Release MODE key, display changes to “F0 sel “ To change setting parameter, press ZERO/TARE key 3) To confirm setting change and forward the next title, press MODE key. - Page 14 C200 series bench scales service manual Set RS-232 output mode: 0, no output, 1, 6 digits format, 2, 7 digits format. 3 , TpuP printer . 4 , LP-50 printer Set output content: quantity, weight and unit weight Set output control: 1, no output, 2, continuously output, 3, continuously output when stable (no output when not stable), 4, one output by press * key, 5, one output when stable (auto output), 6, one output when stable (no output when unstable), 7, one output when...
-
Page 15: Section 7 Factory Mode And Calibrate
C200 series bench scales service manual SECTION 7 FACTORY MODE AND CALIBRATE 7.1 Enter factory mode Hold MODE key, then press ON/OFF key to turn on the power, quantity display window will show “M” mark, after some seconds, enter weighing mode (only weight window on), enter factory mode. -
Page 16: Calibrate
C200 series bench scales service manual To back up, press ADD Press ZERO/TARE to advance to the next parameter, “CAP”. This is the capacity setting. To toggle between parameter name and current setting, press MODE To change: With current capacity setting displayed, press C/AC then type in correct capacity on numeric keypad. -
Page 17: Linear
C200 series bench scales service manual 7.3.1 Calibrate linear 1)In the factory mode hold the MODE key until “Func” appears for roughly 5 to 6 sec., and find the “CAL” function from the parameters.( Reference Function setting table) 2) Press MODE key to enter calibration and press ZERO/TARE key to select “Linear”... -
Page 18: Section 9 Trouble Self Checking
C200 series bench scales service manual SECTION 9 TROUBLESHOOTING SELF CHECKING Symptoms Causes and remedy No display * AC adapter is not connected, or the ON/OFF key is OFF. appears - Connect the AC adapter. * Battery has been consumed (with battery option). - Charge the battery. -
Page 19: Section 10 Message
C200 series bench scales service manual SECTION 10 MESSAGE 10. 1 ERROR MESSAGE Error code describe o-err Overload u-err Under error of minus load b-err When an internal memory changes carelessly 1-err When a standard weight is less than 10% of the capacity at the time of the calibration by the external weight 2-err At the time of failure when a display error exceeds 0.4% at the... -
Page 20: Shortcut Page (Scale Configuration And Calibration)
C200 series bench scales service manual C200 Series Bench Shortcut Page Scale Configuration and Calibration Enabling lbs Unit MODE From normal weighing mode, press and hold until display shows Fset. Display will then show “F0 SEL” ZERO/TARE to step forward through the parameters until “F15 Ut” is displayed. MODE To toggle between parameter name and current setting, press change,...
