  • Page 1 Technical Manual TensionLink WS Wireless Crane Scale V1.16...

  • Page 2: Table Of Contents

    CONTENTS 1. PRECAUTIONS……………………………………………………………………..1 2. SPECIFICATION..…………………………………………………………………. 3 3. INTRODUCTION…………………………………………………………………... 4 4. KEYS DESCRIPTION……………………………………………………………..5 Key Board…………………………………………………………………………..5 Display……………………………………………………………………………6 5. OPERATION OF indicator……………………………………………………… 7 5.1. Basic Operation…………………………………………………………..7 1. Power On /Off………………..………………………………………………7 2. Zero…………………………………………………………………………...7 3. Tare…………………………………………………………………………...7 4. Weighing Operation…………………………………………………………7 5.2. Accumulation…………………………………………………………………8 5.2.1. Manual Accumulation……...…………………….………………….8 5.2.2.

  • Page 3: Precautions

    Tension Link WS Series wireless crane scale Technical Manual 1. PRECAUTIONS WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, CLEANING, OR SERVICING. FAILURE TO DO SO COULD RESULT IN BODILY HARM OR DAMAGE THE UNIT. CAUTION  Only qualified persons to service the instrument ...
  • Page 4 Tension Link WS Series wireless crane scale Technical Operate the scale at a safe speed Never position the load over a person or any body part  Avoid extreme temperature.  Avoid unstable power sources. Do not use near large users of electricity such as welding equipment or large motors.

  • Page 5: Specification

    Tension Link WS Series wireless crane scale Technical 2. SPECIFICATION Common Specifications: Model SH-WS-1t SH-WS-3t SH-WS-5t SH-WS-10t Capacity 2,200lb 6,600lb 11,000lb 22,000lb 1,000kg 3,000kg 5,000kg 10,000kg 10,000N 30,000N 50,000N 100,000N Division .5lb / 0.2kg 2lb / 1kg 5lb / 2kg 10lb / 5kg Note: B-TEK is currently stocking the 11K and 22K scales.

  • Page 6: Introduction

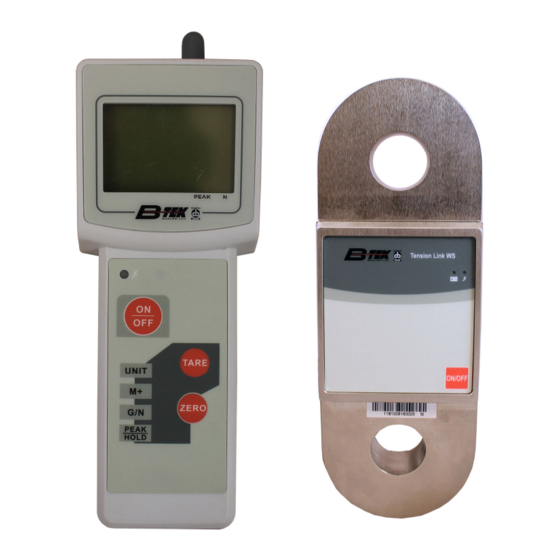

    Tension Link WS Series wireless crane scale Technical 3. INTRODUCTION  The Tension Link WS series handheld indicator gets fast and accurate weighing by wireless communication. It is used with the Tension Link WS crane scale.  Handheld indicator can be connected to a printer or a PC. ...

  • Page 7: Keys Description

    Tension Link WS Series wireless crane scale Technical 4. KEYS DESCRIPTION Key Board Indicator Crane Scale FUNCTION Weighing mode Setting mode Power On / Off Tare function. Change selection Used to reset to Zero. Enter Lock/peak reading Used to do accumulation, if Move digit connected PC or printer, it will send weighing data.

  • Page 8: Display

    Tension Link WS Series wireless crane scale Technical Display DISPLAY FUNCTION ZERO Zero display indication OZT / kg Unit indication HI / OK / LO Check weighing indication Net weight indication STABLE Stable indication Accumulation indication Wireless connection indication Indication status of battery. - 6 -...

  • Page 9: Operation Of Indicator

    Tension Link WS Series wireless crane scale Technical 5. OPERATION of indicator Initial Start-up Warm-up time of 15 minutes stabilizes the measured values after switching on. 5.1. Basic Operation 1. Power ON/OFF: Switch on the balance by pressing the key. The display is switched on and the self-test is started.

  • Page 10: Accumulation

    Tension Link WS Series wireless crane scale Technical 5.2 Accumulation Tension Link WS can do accumulation, it can save 99 weighments of data. 5.2.1 Manual Accumulation Accumulation Operation: Ensure display is zero. Place goods, when gets stable, Press M+ key. N 001 Remove goods from the hook, display of Tension Link indicator, Followed by the total stored value...

  • Page 11: Parameters

    Tension Link WS Series wireless crane scale Technical 6. PARAMETERS Turn on the scale and press key during the self-check, display will show F0 off Press key to change the menu selection. Press key to confirm; Press M+ key to increment digit position while entering numbers. Press UNIT key to escape up a parameter level, then from the settings and return to weighing mode.
  • Page 12 Tension Link WS Series wireless crane scale Technical R<013> Weight data on request Print LP50, TPUP Auto Baud See List 1200/2400/4800/9600/19200/38400 (Data bit = 8N1) F4 ch Ch 1 ch2 ch3 Ch 4 8 available channels, The Tension Link ch5 ch6 Ch 7 Remote should be the same as the Tension Link WS scale.

  • Page 13: Calibration

    Tension Link WS Series wireless crane scale Technical 7. CALIBRATION To set calibration, select cal parameter after selecting range Commo Press key to confirm. Display of Tension Link indicator This is common calibration, you can press to choose linear calibration. Common calibration: Span uload Press...
  • Page 14 Tension Link WS Series wireless crane scale Technical Linear calibration: Tension Link displays commo commo Press key, Tension Link displays Line0 Line0 Press to confirm, Tension Link displays Load 0 Load 0 Clear the hook, when Tension Link display is STABLE, Press to confirm, Tension Link displays Load 1 Load 1...

  • Page 15: Drawings

    Tension Link WS Series wireless crane scale Technical 8. DRAWINGS Parts B-TEK Part # Parts Name Spec DISPLAY SUPPORT 1 FRONT COVER 899-300119 REMOTE OVERLAY - UPPER DISPLAY 899-300120 REMOTE OVERLAY - LOWER KEYPAD DISPLAY SUPPORT 2 SCREW M3x6 SCREW M2.5x12 899-300125 SH-WS TENSION LINK REMOTE...
  • Page 16 Tension Link WS Series wireless crane scale Technical BATTERY FASTENER NAME PLATE 899-300123 REMOTE BATTERY (TECHNICIAN 7.2V / INSTALL REQUIRED / SPLICE WIRES) 2000mAh HANDLEBAR TAPE Nylon SCREW M3x8 LOWER PLATE COVE 899-300126 WIRELESS MODULE (FACTORY INSTALL REQUIRED / PAIRED BOARD, MUST REPLACE BOTH) ANTENNA PROTECTIVE JACKET 899-300127...
  • Page 17 Tension Link WS Series wireless crane scale Technical Parts Name B-TEK Part # Parts Name Spec DISPLAY SHROUD Aluminum LEFT PRESSURE BLOCK Aluminum FIXED LOOP RIGHT PRESSURE BLOCK Aluminum ELASTOMER / LOAD CELL Aluminum LOAD BUSHING Aluminum REAR COVER Aluminum SEAL COVER Aluminum 899-300115...

  • Page 18: Channel

    Tension Link WS Series wireless crane scale Technical 9. CHANNEL Channel connection settings on the scale main board CH1 (K1 K2 K3 connect) CH2 (K1 K2 connect,K3 NC) CH3 (K1 NC,K2 K3 connect) CH4 (K1 K3 NC,K2 connect) CH5 (K1 K3 connect, K2 NC) CH6 (K1 connect,K2 K3 NC) CH7 (K1 K2 NC,K3 connect) CH8 (K1 K2 K3 NC)

  • Page 19: Dimensions

    Tension Link WS Series wireless crane scale Technical 9. DIMENSIONS 3t/5t Inches Inches Inches 99.5 3.9” 99.5 3.9” 99.5 3.9” 1.2” 1.2” 1.6” 55.6 2.2” 61.6 2.4” 71.6 6.5” 6.5” 6.5” 3.5” 3.5” 3.5” 10” 10.4” 10.8” 1.25” 1.18” 1.57” - 17 -...
  • Page 20 Tension Link WS Series wireless crane scale Technical Inches 10.1” 8.9” 3.5” 2.7” 5.4” 2.7” 2.5” 7.1” - 18 -...
  • Page 21 Tension Link WS Series wireless crane scale Technical B-TEK Scales, LLC 1510 Metric Ave. S.W. Canton, OH 44706 Tel: 330.471.8900 Fax: 330.471.8909 www.B-TEK.com - 19 -...
