Summary of Contents for B-TEK Scales Super Sack

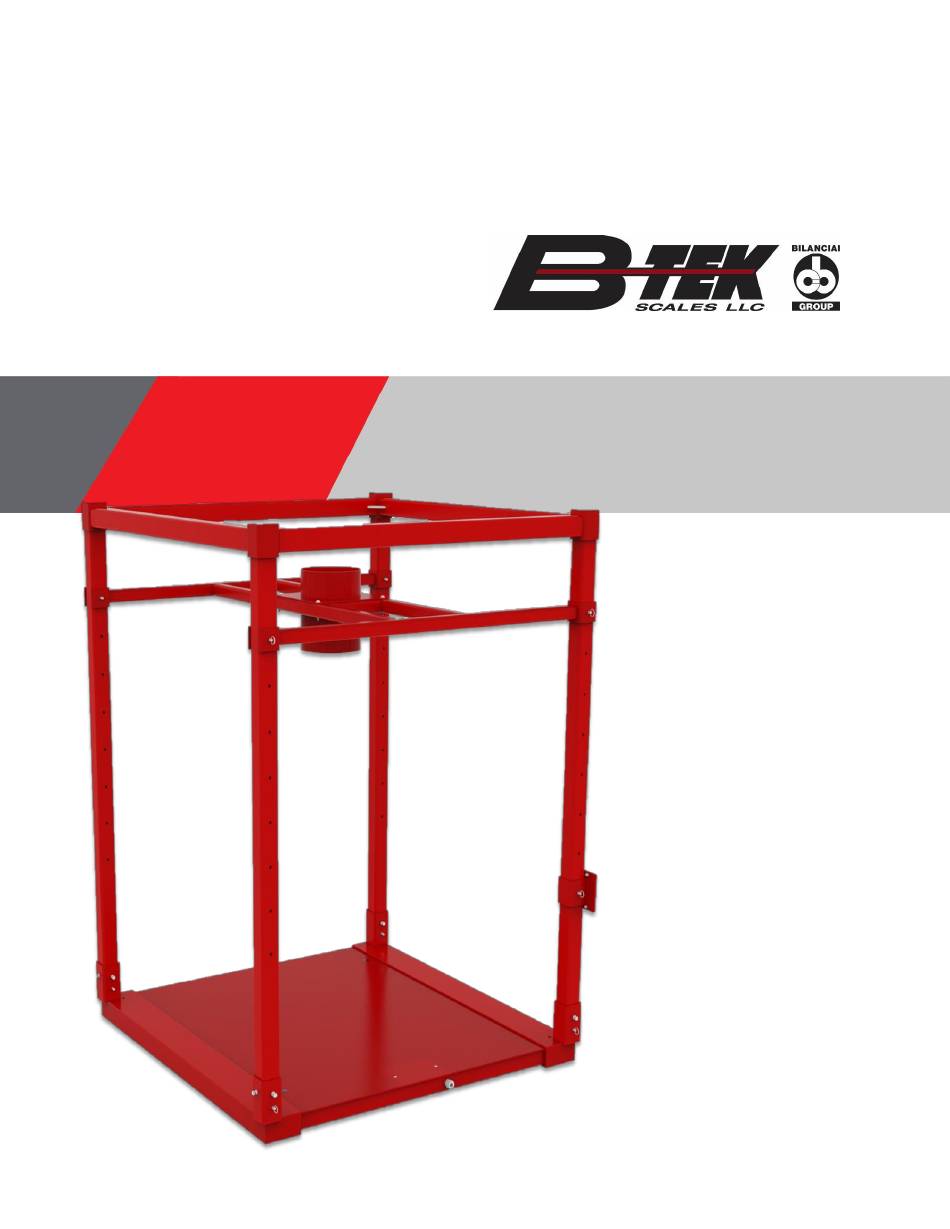

- Page 1 Instruction Manual B-TEK Super Sack 7//23 V2023.1...
-
Page 2: Table Of Contents
BTEK Super Sack Instruction Manual Table of Contents 1. Safety First…………………………………………………………………………………..3 2. Introduction………………………………………………………………………………….4 3. Super Sack Frame Assembly …………………………………………………………….5 4. Fit Assurance ……………….……………………………………………………………...6 5. Parts Inventor……………………………………………………………………………….7 6. Assembly Procedure……………….……….……………………..……………………….8 7. T403S Batch Controller/Positioning the Scale.……………………….…………………9 8. Pretesting/Batching Guide…………………………………………………………….10-14 9. Wire Diagram W/O Alarm…………………………………………………………………15 10. -
Page 3: Safety First
BTEK Super Sack Instruction Manual Safety First • Please call a BTEK-authorized service provider for service or repairs on BTEK products. • Only allow authorized personnel to work with electrical components. • Please ensure you wear proper PPE when working with equipment. -
Page 4: Introduction
All sales of goods are subject to the standard warranty and the standard terms and conditions published by B-TEK, LLC. If you have any questions regarding the Super Sack frame assembly or its components, contact your local B-TEK, LLC. scale representative. -

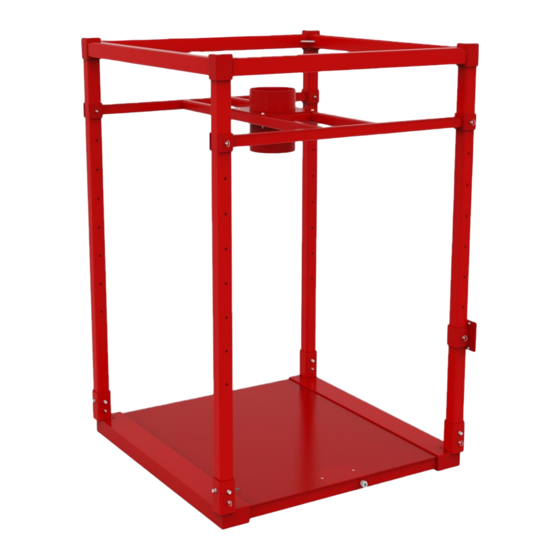

Page 5: Super Sack Frame Assembly
BTEK Super Sack Instruction Manual Super sack assembly parts description Upper structure support cross Height adjustable fill tube cross member assembly member assembly Bag fill tube Main corner support tube Quick release pin Indicator mount bracket Slide on base plate... -
Page 6: Fit Assurance
BTEK Super Sack Instruction Manual Fit Assurance Note: If ordering the super sack frame without a BTEK scale, it is important to ensure a proper fit to your existing scale, please check the dimensions below to ensure that our super sack frame will fit your scale 5 X 5 Super Sack Slide on Base Plate Dimensions 60.25”... -
Page 7: Parts Inventor
BTEK Super Sack Instruction Manual Assembly Parts Inventory Carefully remove the super sack frame parts from its shipping container, ensure that there is no damage, and all parts are included. Please see the diagram and parts list below. 1. BTEK Clydesdale floor scale or existing floor scale. -
Page 8: Assembly Procedure
At this point, the frame of the super sack frame is assembled. Ensure proper height and all bolts and quick-release pins are in place. You can now install your gate valve, system controller, and or supply tubes. -
Page 9: T403S Batch Controller/Positioning The Scale
T-Series Batching Controller Assembly Procedure If you purchased the BTEK super sack kit that comes with the T-series batching system, follow the setup procedure in the instructions below. The panel mount system is equipped with quick disconnect cables and labeling that makes setup a snap. -
Page 10: Pretesting/Batching Guide
BTEK Super Sack Instruction Manual Pretesting the scale After the scale has been positioned and leveled the scale can then be tested. It is recommended that the initial testing of the scale be done by a certified scale provider. Place a known certified weight on the center of the scale and compare the applied weight to the indicator reading. - Page 11 BTEK Super Sack Instruction Manual 16.Press UNITS > OUT 2 is displayed 17.Repeat steps 14 thru 16 to enable Setpoint Outputs 2 and 3 if required 18.When all outputs are enabled on press TARE until SAVE NO is displayed 19.Press UNITS > SAVEYES is displayed 20.Press ZERO >...
- Page 12 BTEK Super Sack Instruction Manual MODE (Ingredient filling only) Auto - filling will automatically advance to the next ingredient Manual - operator must press the F1 key to start the fill for each ingredient DISP Net - OUTx values are entered as Net weights. Auto Tare will occur to start fill cycle and in between each ingredient Gross - OUTx values are entered as Gross weights.
- Page 13 BTEK Super Sack Instruction Manual 4.Press UNITS until BATCH is displayed 5.Press SELECT > TYPE is displayed 6.Press SELECT > 2 SPEED is displayed 7.Press UNITS > INGRED is displayed 8.Press ZERO > TYPE is displayed 9.Press UNITS until PREACT is displayed 10.Press SELECT >...
- Page 14 BTEK Super Sack Instruction Manual 5.Press ZERO > OUT 1 is displayed 6.Press UNITS > OUT 2 is displayed 7.Repeat steps 3 thru 5 to enter values for OUT 2 and 3 and PREACT 1, 2 and 3 8.Press F1 when entries are complete > SETPNT is displayed 9.Press F1 again and the indicator returns to normal operation...
-
Page 15: Wire Diagram W/O Alarm
BTEK Super Sack Instruction Manual T403S Batch Controller Diagram - 15 -... -
Page 16: Wire Diagram With Alarm
BTEK Super Sack Instruction Manual T403S Batch Controller with Alarm Timer - 16 -... -
Page 17: Replacement Parts
BTEK Super Sack Instruction Manual Replacement Parts 813-100094 5K CLYDESDALE SCALE REPLACEMENT CELL 813-100025 10K CLYDESDALE SCALE REPLACEMENT CELL 864-000008 CLYDESDALE SUMMING BOARD/BOX 911-000032 CLYDESDALE LOAD CELL FOOT 825-200006 T403 PANEL MOUNT INDICATOR 800-0002822 POLE RELAY; DPDT 24VDC 10 A; 8 OCTAL PINS...
