CYBEX Arc Trainer 772A Service Manual page 105

Complete Installation
Operate the unit at all levels to verify proper operation.

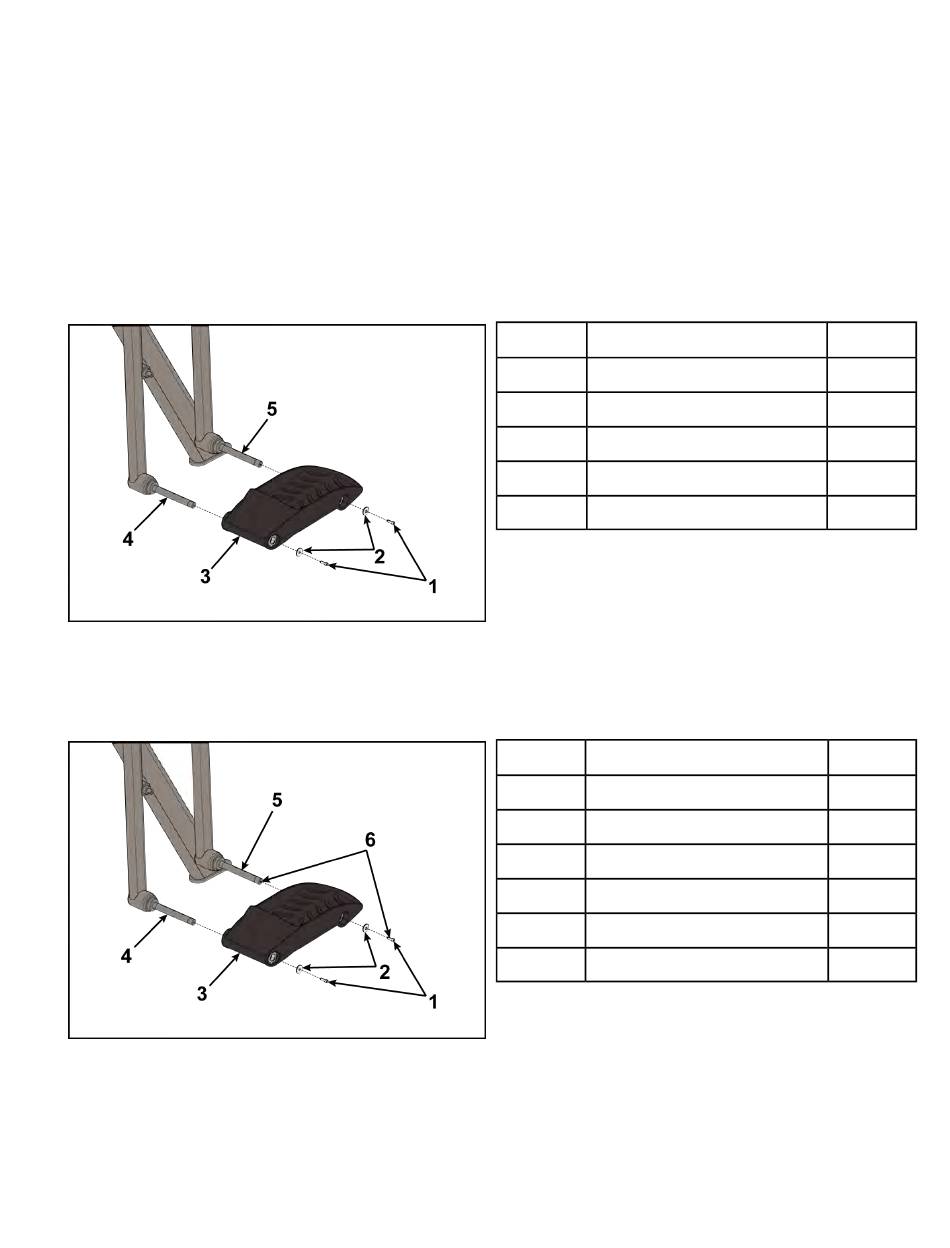

Foot Plate Assembly
Tools Required:
• 5/32" Allen wrench
• Loctite ® #242
Remove foot plate assembly
1. Remove both SHCS and washers securing foot plate using a 5/32" Allen wrench.
2. Remove foot plate from front and rear foot plate shafts.
Install foot plate assembly
1. Slide foot plate onto the foot plate shafts.
2. Place a drop of loctite on each SHCS.
Place another drop of loctite in each shaft (where the SHCS will be tightened into).
3. Install both washers and both SHCS using a 5/32" Allen wrench.
Cybex 772A, 772AT Arc Trainer Part Number
Page 105 of 202
Item Description
1 SHCS
2 Washer
3 Foot plate
4 Front foot plate shaft
5 Rear foot plate shaft
Item Description
1 SHCS
2 Washer
3 Foot plate
4 Front foot plate shaft
5 Rear foot plate shaft
6 Loctite
Qty.
2
2
1
1
1
Qty.
2
2
1
1
1
®
#242 1
