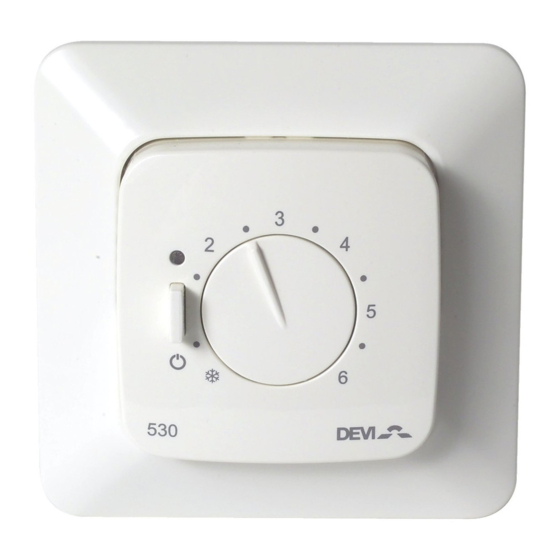

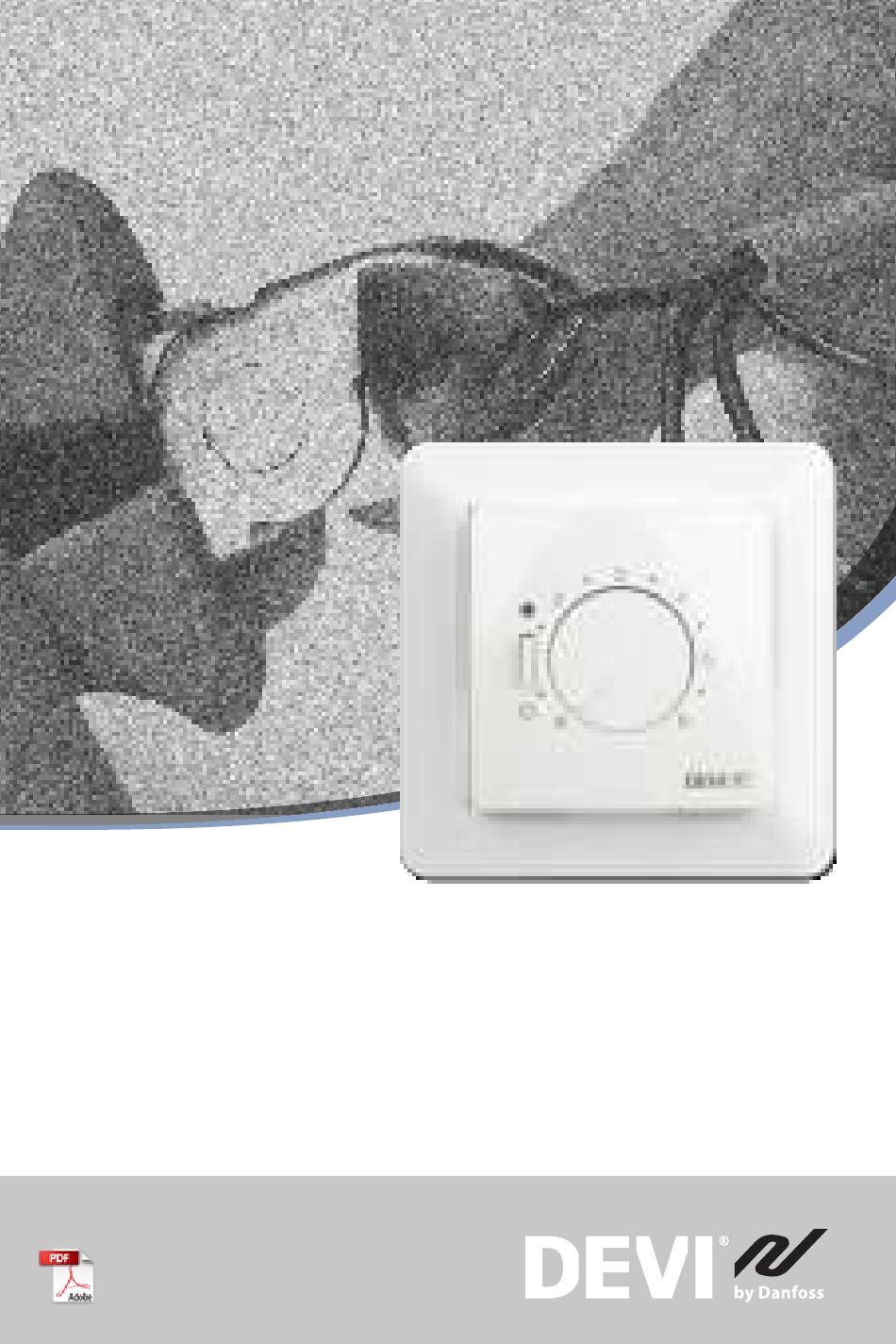

- Page 1 Installation Guide DEVIreg™ 530 Electronic Thermostat www.DEVI.com...
- Page 2 DEVIreg™ 530 The English language is used for the original instructions. Other languages are a translation of the original instructions. (Directive 2006/42/EC) Installation Guide...
-
Page 3: Table Of Contents
DEVIreg™ 530 Table of Contents Introduction ..... . . Technical Specifications ... . Safety Instructions . -
Page 4: Technical Specifications
DEVIreg™ 530 Technical Specifications Operation voltage 220-240V~, 50Hz Standby power Max 0.25W consumption Relay: Resistive load Max 15A / 3450W @ 230V Inductive load cos φ= 0.3 max 1A Sensing units NTC 15kOhm at 25°C Sensing values: 0°C 42 kOhm 25°C 15 kOhm 50°C... -
Page 5: Safety Instructions
DEVIreg™ 530 Type Storage temperature -20 to +65°C IP class Protection class Class II - Dimensions 85 x 85 x 36 mm Weight 90 g The product complies with the EN/IEC Standard «Automatic electrical controls for household and similar use»: •... -
Page 6: Mounting Instructions
DEVIreg™ 530 • The thermostat must be connected to a power supply via an all-pole disconnection switch. • The sensor is to be considered as live voltage. Have this in mind if the sensor must be extended. • Always connect the thermostat to continuous power supply. - Page 7 DEVIreg™ 530 Note: A floor sensor enables a more accurate temperature control and is recommended in all floor heating applications and mandatory under wooden floors to reduce the risk of over-heating the floor. • Place the floor sensor in a conduit in an appropriate place where it is not exposed to sunlight or draft from door openings.
- Page 8 DEVIreg™ 530 Follow the steps below to mount the thermostat: Open the thermostat: • Press the release tab in the bottom of the thermostat using a flat object. • Carefully detach the front cover. • Carefully detach the frame. Installation Guide...
- Page 9 DEVIreg™ 530 Connect the thermostat according to the connection diagram. LOAD LOAD Mains Max. Load 220-240V~ 15 (1) A -5°C IP31 -10T30 D530 By connecting an external timer to the terminal marked by a moon symbol (and by using for example the same phase as for the mains power supply), the thermostat can be set to reduce the temperature by 5°C during specified periods.
-
Page 10: Settings
DEVIreg™ 530 Mount and reassemble the thermostat. • Fasten the thermostat to a socket or an exterior wall box by driving the screws through the holes in each side of the thermostat. • Install the frame and front cover in the reverse order of disassembly. - Page 11 DEVIreg™ 530 • Floor manufactures often specify the max temperature on the top surface of the floor (usually 27-28˚C). • Always use a floor sensor to control floor heating. Without a floor sensor, the temperature control may be less accurate and you risk overheating the floor. Details Thermal Examples of...
-
Page 12: Warranty
The DEVIwarranty shall not extend to products which have not been paid in full. Danfoss will, at all times, provide a rapid and effective response to all complaints and inquiries from our customers. - Page 13 WARRANTY CERTIFICATE The DEVIwarranty is granted to: Address Stamp Purchase date Serial number of the product Product Art. No. *Connected output [W] Installation Date Connection Date & Signature & Signature *Not mandatory...
-
Page 14: Disposal Instruction
DEVIreg™ 530 Disposal Instruction Installation Guide... - Page 15 DEVIreg™ 530 Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 08090901 & AN417535815906en-010101 © Danfoss | 2022.06...
- Page 16 DEVIreg™ 530 ELKO 140F1031 Thermostat Floor Sensor ELKO Product Documentation 220-240V~ 50-60Hz~ +5 to +45°C 15A/3450@230V~ SE EL 85 81195 IP 31 d Designed in Denmark for Danfoss A/S 5 703466 209004...
