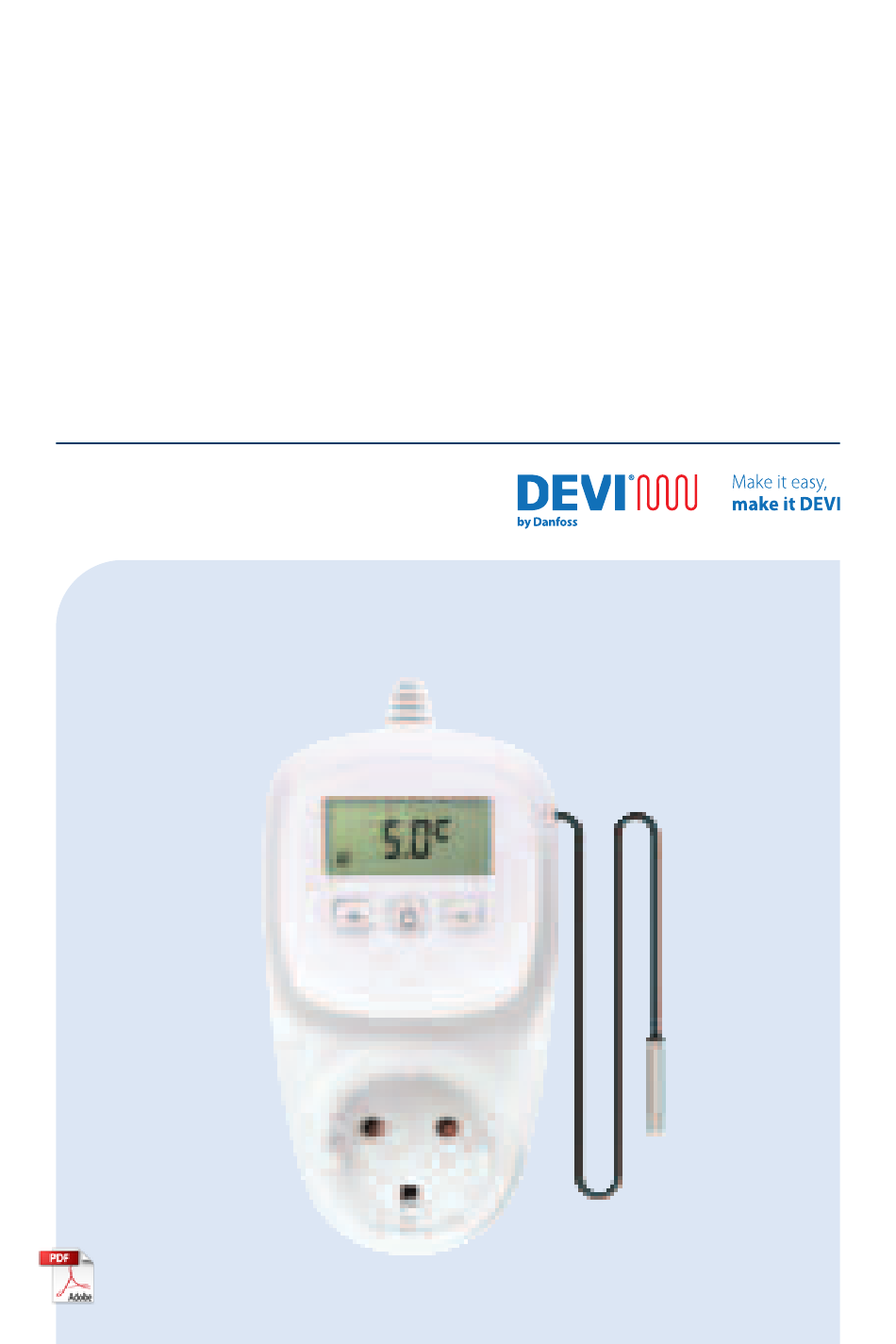

- Page 1 Installation Guide DEVIreg™ Plug-in Electronic Thermostat...
- Page 3 DEVIreg™ Plug-in INSTALLATION GUIDE Table of Contents Introduction ..... . . 4 Technical Specifications ....5 Safety Instructions .
- Page 4 INSTALLATION GUIDE DEVIreg™ Plug-in Introduction DEVIreg™ Plug-in (140F1134) is an electronic thermostat to be installed in indoor directly to a socket. Plug in design make it easy to install and connect ready-made cables with Schuko plug like DEVIpipeheat 10 V2 or V3. Used primarily for controlling a lower temperature range as by frost pro- tection.
- Page 5 DEVIreg™ Plug-in INSTALLATION GUIDE Technical Specifications Operation voltage 220-240 V~, 50 Hz Relay: Resistive load Max 16 A / 3680 W @ 230 V Inductive load cos φ= 0,3 max1A Sensing units NTC 10K Hysteresis ± 0,5 °C Ambient temperature 0°...
- Page 6 INSTALLATION GUIDE DEVIreg™ Plug-in The product complies with the EN/IEC Standard “Automatic electrical controls for household and similar use”: • EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat) Safety Instructions Make sure the mains supply to the thermostat is turned off before installation.
- Page 7 DEVIreg™ Plug-in INSTALLATION GUIDE Mounting Instructions Please observe the following placement guidelines: • Do not place the thermostat in a way that it will be exposed to direct sunlight. Follow the steps below to mount the thermostat: Plug in the thermostat to a power supply socket. Place a wire sensor of the thermostat on a pipe which need to be frost protected (more information in Pipe frost protection Application manual).
- Page 8 • thermostats: DEVIreg™ Plug-in. Should you, against all expectations, experience a problem with your DEVI product, you will find that Danfoss offers DEVIwarranty valid from the date of purchase on the fol- lowing conditions: During the warranty period Danfoss shall offer a new comparable product or repair the product if the...
- Page 9 All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above.
- Page 10 WARRANTY CERTIFICATE The DEVIwarranty is granted to: Address Stamp Purchase date Serial number of the product Product Art. No. *Connected output [W] Installation Date Connection Date & Signature & Signature *Not mandatory...
- Page 11 DEVIreg™ Plug-in INSTALLATION GUIDE Disposal Instruction This symbol on the product indicates that it may not be disposed of as household waste. It must be handed over to the applicable take-back scheme for the recycling of electri- cal and electronic equipment. •...
- Page 12 Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 140A0075 & AN463229583396en-000101 Produced by Danfoss © 01/2024...
