Circontrol Genion One Installation Manual page 13

Overview
Genion One Genion One
1. A1(+), Auxiliary power supply
2. A2(-), Auxiliary power supply
3. , Earth
4. B-, RS-485 connection
5. A+, RS-485 connection
6. GND, RS-485 connection
7. V1, Voltage input
8. V2, Voltage input
11
11
12
12
13
13
14
14
7
7
4
4
8
8
5
5
9
9
6
6
10
10

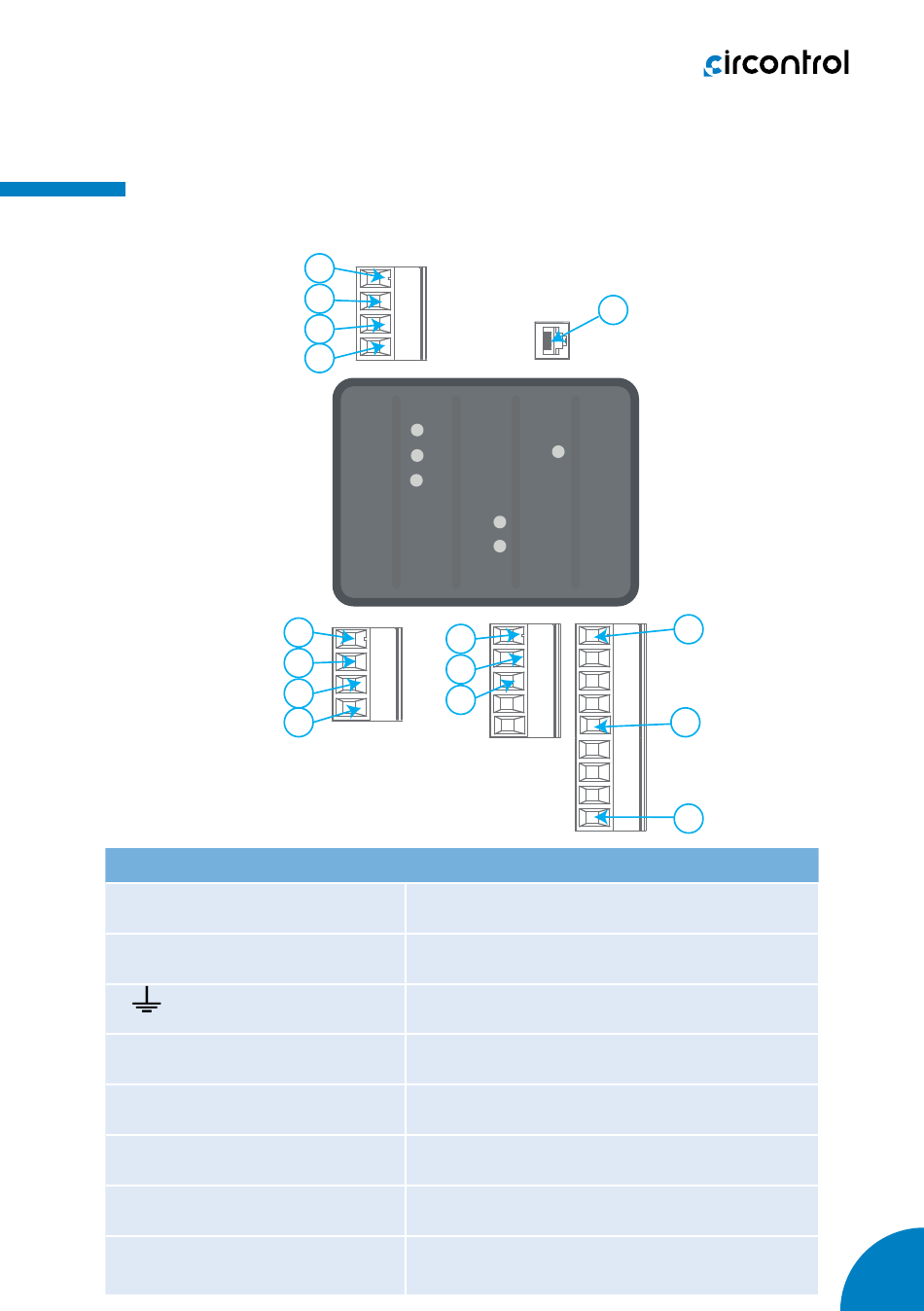

Genion One terminals
9. V3, Voltage input
10. N, Neutral voltage input
11. N1, Neutral current input
12. I3, EV recharging point current input
13. I2, Photovoltaic generation current input
14. I1, Mains current input
15. Ethernet, Ethernet connection
15
15
1
1
2
2
3
3
09
