Teltonika FM6300 Manual

Gnss/gsm terminal with gnss/gsm antennas and ni-mh battery
Hide thumbs Also See for FM6300:

Advertisement

Table of Contents

https://wiki.teltonika-gps.com/view/FM6300_First_Start
FM6300 First Start
Main Page
>
EOL Products

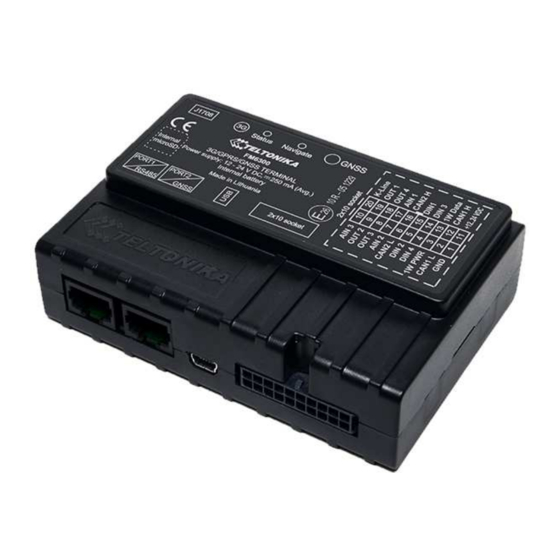

FM6300 GNSS/GSM terminal with GNSS/GSM antennas and Ni-MH battery
Contents

1 How to insert micro SIM card into FM6300

How to insert micro SIM card into FM6300
1. Remove FM6300 cover.
2. Insert SIM card as shown. SIM slot 1 is closer to PCB, SIM slot 2 is the upper one.
3. Attach cover.
4. Device is ready to be connected.
SIM card insertion/removal must be performed when device is powered off – external
voltage and internal battery disconnected. Otherwise SIM card might be damaged or
device will not detect it.
How to insert microSD card into FM6300
>
FM6300
> FM6300 First Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM6300 and is the answer not in the manual?

Questions and answers

Related Manuals for Teltonika FM6300

Summary of Contents for Teltonika FM6300

  • Page 1 > EOL Products > FM6300 > FM6300 First Start FM6300 GNSS/GSM terminal with GNSS/GSM antennas and Ni-MH battery Contents 1 How to insert micro SIM card into FM6300 2 How to insert microSD card into FM6300 3 2x10 socket pinout...
  • Page 2 Push microSD card lock case. Open microSD card locker. Correctly insert microSD card into slot. Close microSD card locker. Push microSD card lock case to locked position. 2x10 socket pinout...
  • Page 3 How to install FM6300 drivers (Windows) 1. Please download Virtual COM port drivers from Teltonika website: https://drive.teltonika.lt/f/c784c30eb9684f749445/?dl=1. 2. Extract and run vcpdriver_v1.3.1_setup.exe. This driver is used to detect FM6300 device when it is connected to the computer. 3. Click Next in driver installation window.
  • Page 4 GSM operator's information. If device GSM is unavailable, the device will not be able to send the data and FM6300 will start storing records to flash memory. It is possible to store up to 192000 data records with 128 MB SD memory card (when 100 MB are used to store records).
  • Page 5 GND vehicle computer. Connecting the GND at an arbitrary point to the mass of the car is unacceptable, as static and dynamic potentials on the line GND will be unpredictable, which can lead to unstable FM6300 operation and even its failure.
  • Page 6 The device is designed to be mounted in a zone of limited access, which is inaccessible to the operator. All related devices must meet the requirements of EN 60950-1 standard. The device FM6300 is not designed as a navigational device for boats. Precautions Do not disassemble the device.
