Access Point LEDs

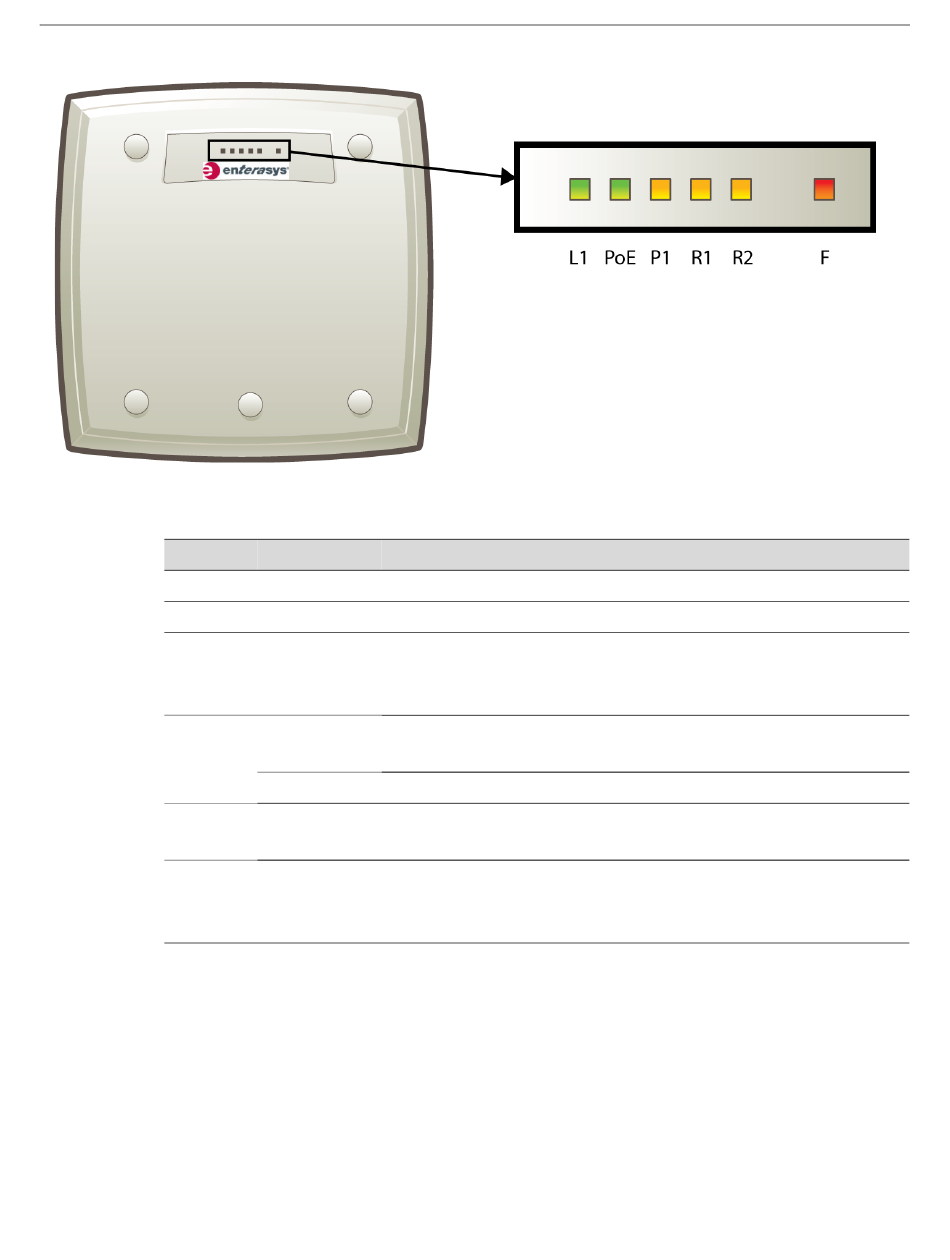

Figure 1-2

WS-AP3765 LEDs

Table 1-3 WS-AP3765 LED Descriptions
LED
L1
PoE
P1
R1
R2
F

WS-AP3767e LEDs

The WS-AP3767e frontal view of the housing cover displays six LEDs. These LEDs provide
information on operating status. For more information, see the Enterasys Wireless Convergence
Software User Guide.
1-4 Introduction
Color Meaning
Green Power LED. When on, indicates AP power is sourced from power supply.
Green PoE power LED. When on, indicates AP power is source from PoE.
Green Ethernet port 1 LED.
When green on, indicates Ethernet port activity.
When off, Ethernet is off, WDS is enabled.
Green WLAN Radio 1 LED.
When green on, indicates Radio 1 is active.
Amber When amber on, indicates WDS up link.
Green WLAN Radio 2 LED.
When green on, indicates Radio 2 is active.
Red Error LED.
When on, indicates error.
When off, indicates normal operation, AP connected to controller.
