Enterasys RoamAbout RBT3K-1G Quick Start

Notice
Enterasys Networks reserves the right to make changes in
specifications and other information contained in this document and its
web site without prior notice. The reader should in all cases consult
Enterasys Networks to determine whether any such changes have been
made.
The hardware, firmware, or software described in this document is
subject to change without notice.
IN NO EVENT SHALL ENTERASYS NETWORKS BE LIABLE FOR
ANY INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL
DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO
LOST PROFITS) ARISING OUT OF OR RELATED TO THIS
DOCUMENT, WEB SITE, OR THE INFORMATION CONTAINED IN
THEM, EVEN IF ENTERASYS NETWORKS HAS BEEN ADVISED OF,
KNEW OF, OR SHOULD HAVE KNOWN OF, THE POSSIBILITY OF
SUCH DAMAGES.
Enterasys Networks, Inc.
50 Minuteman Road
Andover, MA 01810
 2004 Enterasys Networks, Inc. All rights reserved.
Part Number: 9033945 February 2004
ENTERASYS, ENTERASYS NETWORKS, NETSIGHT, ROAMABOUT,
and any logos associated therewith, are trademarks or registered
trademarks of Enterasys Networks, Inc. in the United States and other
countries.
All other product names mentioned in this manual may be trademarks
or registered trademarks of their respective companies.
FCC Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
1
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC CAUTION: Changes or modifications made to
this device which are not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator &
your body.
If the RBT3K-AG or RBT3K-AG-G device is going to be operated in
5.15 ~ 5.25GHz frequency range, then it is restricted in indoor
environment only.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Enterasys Networks declares that the RBT3K-1G, RBT3K-AG, and
RBT3K-AG-G (RoamAbout Access Point 3000) are limited in the 2.4
GHz band on channel 1-11 by specified firmware controlled in USA.
Industry Canada (Canada) - Class B
Computing Device:
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Europe - EC Declaration of Conformity
This device complies with Low Voltage Directive 73/23/EEC and EMC
Directive 89/336/EEC.
VCCI Notice
This is a Class B product based on the standard of the Voluntary
Control Council for Interference from Information Technology
Equipment (VCCI). If this is used near a radio or television receiver in a
domestic environment, it may cause radio interference. Install and use
the equipment according to the instruction manual.
2

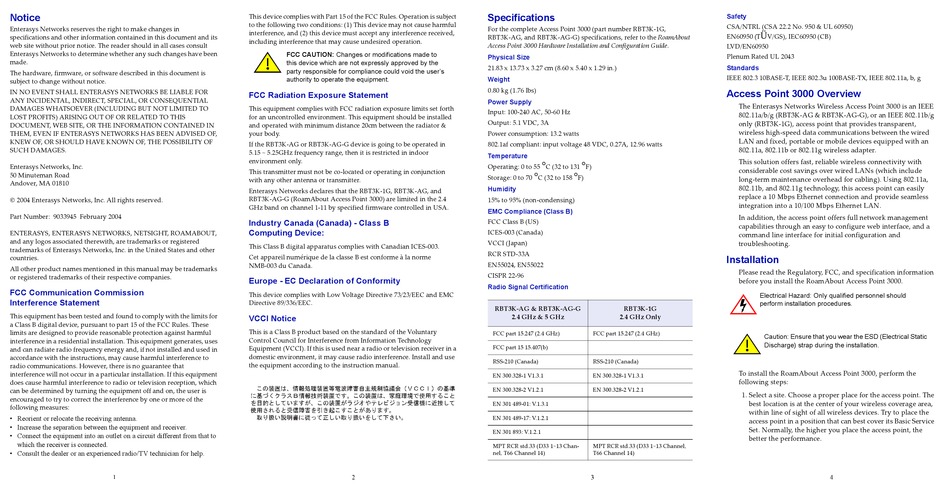

Specifications

For the complete Access Point 3000 (part number RBT3K-1G,
RBT3K-AG, and RBT3K-AG-G) specifications, refer to the RoamAbout
Access Point 3000 Hardware Installation and Configuration Guide.
Physical Size
21.83 x 13.73 x 3.27 cm (8.60 x 5.40 x 1.29 in.)
Weight
0.80 kg (1.76 lbs)
Power Supply
Input: 100-240 AC, 50-60 Hz
Output: 5.1 VDC, 3A
Power consumption: 13.2 watts
802.1af compliant: input voltage 48 VDC, 0.27A, 12.96 watts
Temperature
° °
Operating: 0 to 55 C (32 to 131 F)
° °
Storage: 0 to 70 C (32 to 158 F)
Humidity
15% to 95% (non-condensing)
EMC Compliance (Class B)
FCC Class B (US)
ICES-003 (Canada)
VCCI (Japan)
RCR STD-33A
EN55024, EN55022
CISPR 22-96
Radio Signal Certification
RBT3K-AG & RBT3K-AG-G RBT3K-1G
2.4 GHz & 5 GHz 2.4 GHz Only
FCC part 15.247 (2.4 GHz) FCC part 15.247 (2.4 GHz)
FCC part 15 15.407(b)
RSS-210 (Canada) RSS-210 (Canada)
EN 300.328-1 V1.3.1 EN 300.328-1 V1.3.1
EN 300.328-2 V1.2.1 EN 300.328-2 V1.2.1
EN 301 489-01: V.1.3.1
EN 301 489-17: V.1.2.1
EN 301 893: V.1.2.1
MPT RCR std.33 (D33 1~13 Chan- MPT RCR std.33 (D33 1~13 Channel,
nel, T66 Channel 14) T66 Channel 14)
3
Safety
CSA/NTRL (CSA 22.2 No. 950 & UL 60950)
Ü
EN60950 (T V/GS), IEC60950 (CB)
LVD/EN60950
Plenum Rated UL 2043
Standards
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.11a, b, g
Access Point 3000 Overview
The Enterasys Networks Wireless Access Point 3000 is an IEEE
802.11a/b/g (RBT3K-AG & RBT3K-AG-G), or an IEEE 802.11b/g
only (RBT3K-1G), access point that provides transparent,
wireless high-speed data communications between the wired
LAN and fixed, portable or mobile devices equipped with an
802.11a, 802.11b or 802.11g wireless adapter.
This solution offers fast, reliable wireless connectivity with
considerable cost savings over wired LANs (which include
long-term maintenance overhead for cabling). Using 802.11a,
802.11b, and 802.11g technology, this access point can easily
replace a 10 Mbps Ethernet connection and provide seamless
integration into a 10/100 Mbps Ethernet LAN.
In addition, the access point offers full network management
capabilities through an easy to configure web interface, and a
command line interface for initial configuration and
troubleshooting.
Installation
Please read the Regulatory, FCC, and specification information
before you install the RoamAbout Access Point 3000.
Electrical Hazard: Only qualified personnel should
perform installation procedures.
Caution: Ensure that you wear the ESD (Electrical Static
Discharge) strap during the installation.
To install the RoamAbout Access Point 3000, perform the
following steps:
1. Select a site. Choose a proper place for the access point. The
best location is at the center of your wireless coverage area,
within line of sight of all wireless devices. Try to place the
access point in a position that can best cover its Basic Service
Set. Normally, the higher you place the access point, the
better the performance.
4
