https://wiki.teltonika-gps.com/view/FMC640_First_Start

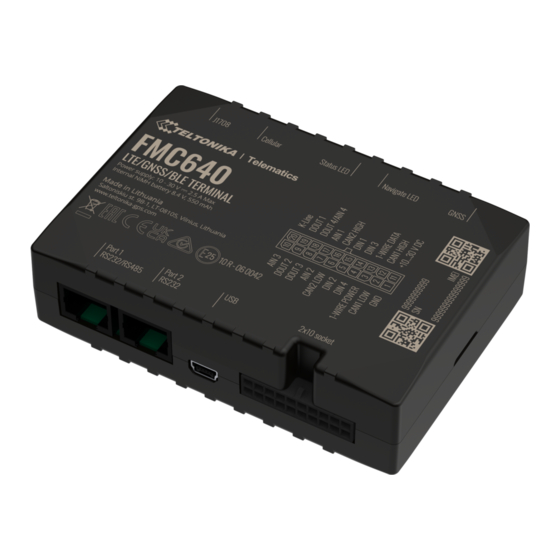

FMC640 First Start
Main Page
>
Professional Trackers
Leading LTE/GNSS/BLE Terminal for advanced applications
Contents
1 How to insert SIM card and connect the battery
How to insert SIM card and connect the battery
1.
Unscrew 4 screws counterclockwise that are located on the bottom of the device.
2.
Remove the cover.
Insert SIM card as shown with PIN request disabled or read
3.
later in
Teltonika
SIM slot 1 is closer to PCB, SIM slot 2 is the upper one.
Connect battery as shown to device.
4.
5.
After configuration, see
6.
Screw in all screws. Device is ready to be mounted.
SIM card insertion/removal must be performed when device is powered off – external
voltage and internal battery disconnected. Otherwise SIM card might be damaged or device
will not detect it.
>
FMC640
> FMC640 First Start
Configurator. Make sure that SIM card cut-off corner is pointing outwards.
"PC Connection
(Windows)", attach device cover back.
Security info
how to enter it
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teltonika FMC640
Summary of Contents for Teltonika FMC640
- Page 1 Leading LTE/GNSS/BLE Terminal for advanced applications Contents 1 How to insert SIM card and connect the battery 2 How to insert microSD card into FMC640 3 2x10 socket pinout 3.1 PC Connection (Windows) 3.2 How to install USB drivers (Windows) 3.3 Configuration (Windows)
- Page 2 When 2 SIM cards are used simultaneously risk is mitigated as well - when SIM1 is inserted, a greater pressure is applied for SIM2, so SIM parts are harder to come lose How to insert microSD card into FMC640 Push microSD card lock case.
- Page 3 K-LINE K-LINE interface for online Tachograph Vehicle Data transfer PC Connection (Windows) Power-up FMC640 with DC voltage 10-30 V power supply using supplied power cable. LED’s should start blinking, see “FMC640 LED status”. Connect device to computer using Mini-USB cable connection and install USB drivers, see "How to install USB drivers...
- Page 4 Configuration process begins by pressing on connected device: After connection to Configurator Status window will be displayed: Status window tabs display information about GNSS, GSM, I/O, Maintenance Various and etc. FMC640 has one user editable profile, which can be loaded and saved to the device. After any...
- Page 5 Data Acquisition – where data acquiring parameters can be configured. More details about FMC640 configuration using Configurator can be found here. Quick SMS configuration Default configuration has optimal parameters present to ensure best performance of track quality and data usage.
- Page 6 If device has made a record it is sent to the server every 120 seconds After successful SMS configuration, FMC640 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.
- Page 7 GND vehicle computer. Connecting the GND at an arbitrary point to the mass of the car is unacceptable, as static and dynamic potentials on the line GND will be unpredictable, which can lead to unstable FMC640 operation and even its failure.
- Page 8 The device must be firmly fastened in a predefined location. The programming must be performed using a PC with autonomic power supply. The device is susceptible to water and humidity. Installation and/or handling during a lightning storm is prohibited. https://teltonika-gps.com/product/fmc640...
