Summary of Contents for Elation CHORUS LINE 16

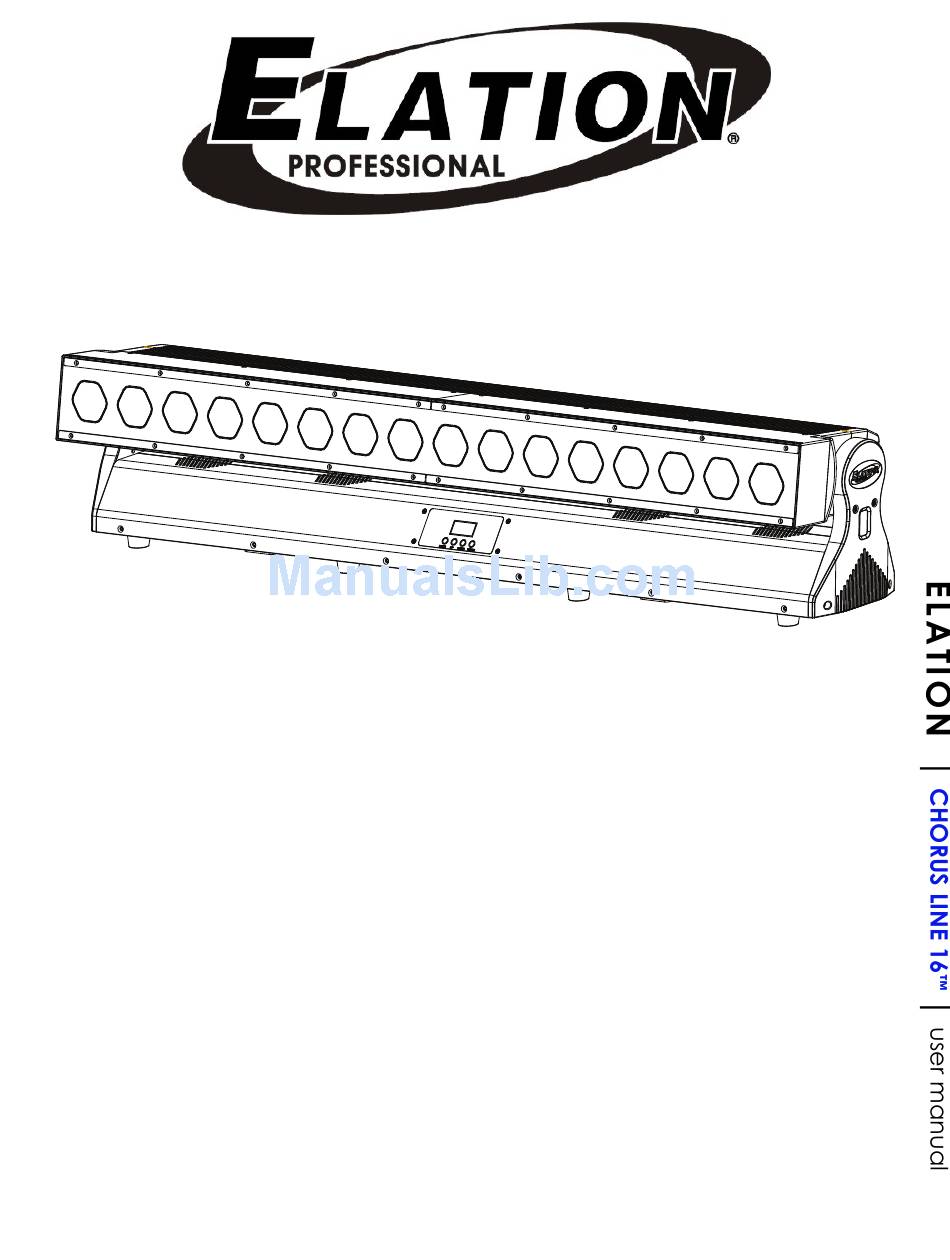

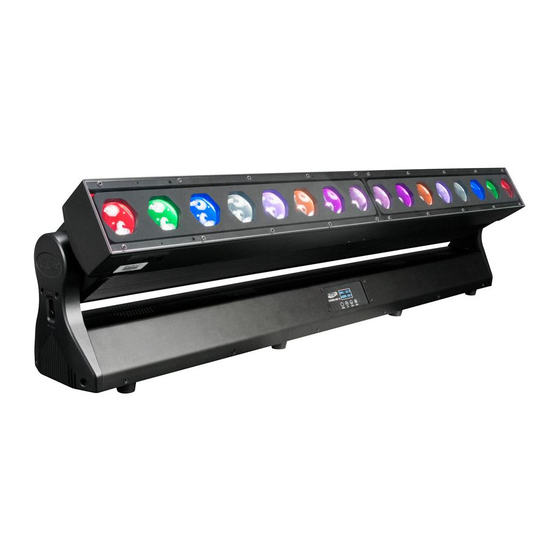

- Page 1 CHORUS LINE 16™ user manual...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
. e l a t i o n l i g h t i n g . c o m C O N T E N T S General Information Warranty Safety Instructions and Guidelines Overview Installation Fixture Menu DMX Channel Functions And Values Pixel Control Cleaning and Maintenance Technical Specifications Optional Accessories CHORUS LINE 16™ User Manual... -
Page 4: General Information
Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS (2) Omega Brackets (1) Safety Cable (1) Power Cable CHORUS LINE 16™ User Manual... - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions And Guidelines
INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE! NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK! CHORUS LINE 16™ User Manual... - Page 8 Consistent operational breaks will ensure the fixture will function properly for many years to come. Use the original packaging and materials to transport the fixture in for service. CHORUS LINE 16™ User Manual...
-
Page 9: Overview
. e l a t i o n l i g h t i n g . c o m O V E R V I E W 1. LCD Menu Display, MENU, UP, DOWN, ENTER Buttons 2. Tilt Lock 3. Fuse 4. powerCON IN/OUT 5. 5pin DMX IN/OUT 6. RJ45 Ethernet IN/OUT CHORUS LINE 16™ User Manual... -
Page 10: Installation
Max number of CHORUS LINE 16 units power linked together: 1 unit @120V | 2 units @240V NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES TO CHORUS LINE 16! POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY! ALWAYS CHECK MAX AMP OUT RATING PRINTED ON THE REAR CONNECTION PANEL! - Page 11 S A F E T Y C A B L E ALWAYS ATTACH A SAFETY CABLE TO THE FIXTURE WHENEVER INSTALLING IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF CLAMP FAILS. CHORUS LINE 16™ User Manual...
- Page 12 If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Fixture is fully operational in the specific mounting positions illustrated below. CHORUS LINE 16™ User Manual...
-
Page 13: Fixture Menu
(4) button Control Panel will be LOCKED. To unlock the (4) button LCD control panel, press and hold the MODE button. INFORMATION DISPLAYED DURING INITIAL POWER ON When the fixture is initially powered ON, the display shows the following information: Update Chorus16 Wait... Reset... CHORUS LINE 16™ User Manual... - Page 14 Version 4U01: ≥V1.02 5U01: ≥V1.02 Reset. M Tilt, Zoom Reset of Tilt and Zoom Motors Test. Chan Tilt ... Test Functions Test ManCtrl Tilt=XXX Manual Control Calibrate Password Password= 050 Calibration of Motors and LEDs CHORUS LINE 16™ User Manual...
- Page 15 . e l a t i o n l i g h t i n g . c o m DIMMING CURVES The DimCurve menu allows you to select one of the following preset dimming curves: Standard, Stage, TV, Architec, or Theatre. (See diagram below for more details) CHORUS LINE 16™ User Manual...
-
Page 16: Dmx Channel Functions And Values
WHITE [PIXEL #3] 0-255 0 to 100% RED [PIXEL #4] 0-255 0 to 100% GREEN [PIXEL #4] 0-255 0 to 100% BLUE [PIXEL #4] 0-255 0 to 100% WHITE [PIXEL #4] 0-255 0 to 100% CHORUS LINE 16™ User Manual... - Page 17 WHITE[ PIXEL #9] 0-255 0 to 100% RED [PIXEL #10] 0-255 0 to 100% GREEN [PIXEL #10] 0-255 0 to 100% BLUE [PIXEL #10] 0-255 0 to 100% WHITE [PIXEL #10] 0-255 0 to 100% CHORUS LINE 16™ User Manual...
- Page 18 WHITE [PIXEL #15] 0-255 0 to 100% RED [PIXEL #16] 0-255 0 to 100% GREEN [PIXEL #16] 0-255 0 to 100% BLUE [PIXEL #16] 0-255 0 to 100% WHITE [PIXEL #16] 0-255 0 to 100% CHORUS LINE 16™ User Manual...
- Page 19 COLOR PRESET 24 97-100 COLOR PRESET 25 101-104 COLOR PRESET 26 105-108 COLOR PRESET 27 109-112 COLOR PRESET 28 113-116 COLOR PRESET 29 117-120 COLOR PRESET 30 121-124 COLOR PRESET 31 125-128 COLOR PRESET 32 CHORUS LINE 16™ User Manual...
- Page 20 SHUTTER / STROBE 0-31 LED OFF 32-63 LED ON 64-95 Strobe Effect SLOW to FAST 96-127 LED ON 128-159 Pulse Effect in Sequences 160-191 LED ON 192-223 Random Strobe Effect SLOW to FAST 224-255 LED ON CHORUS LINE 16™ User Manual...
- Page 21 Internal Program 1 (scene1~8) 120-139 Internal Program 2 (scene9~16) 140-159 Internal Program 3 (scene17~24) 160-179 Internal Program 4 (scene25~32) 180-199 Internal Program 5 (scene33~40) 200-219 Internal Program 6 (scene41~48) 220-239 Internal Program 7 (scene49~56) 240-255 NO FUNCTION CHORUS LINE 16™ User Manual...
-
Page 22: Pixel Control
. e l a t i o n l i g h t i n g . c o m P I X E L C O N T R O L The fixture features pixel control in Extended DMX channel mode. See diagram below, which illustrates the specific pixel mapping order. CHORUS LINE 16™ User Manual... -
Page 23: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 24: Technical Specifications
5°F to 113°F (-15°C to 45°C) APPROVALS / RATINGS CE | IP30 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. CHORUS LINE 16™ User Manual... -
Page 25: Optional Accessories
O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM DRCCL16 9 Piece Road Case for Chorus Line 16 NARROW CLAMP Heavy Duty Wrap Around Hook Style Clamp SCABLE 60 60 lbs.
