Videx Kristallo KRA038 Instruction Manual

Videx Kristallo KRA038 Instruction Manual

Table desktop kit

Advertisement

Kristallo Series
Art. KRA038
Fig. 1
Fig. 3

TERMINALS COLOUR CODE

A
White
B
Red
X
Yellow
Black
T
Blue
P
Pink
Art. KRA038 - Mounting instructions

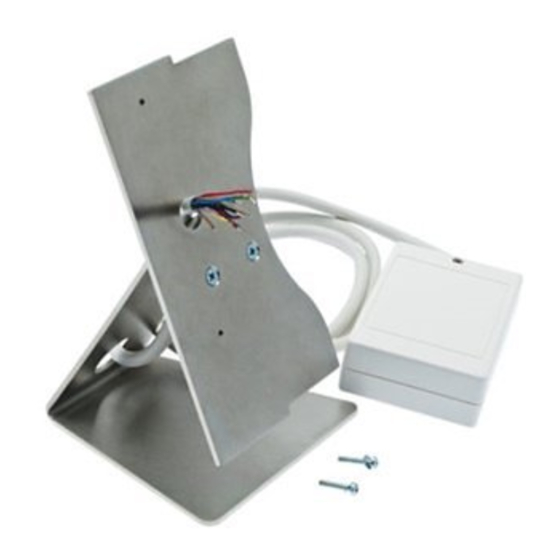

Table desktop kit for Kristallo Series hands free intercoms with handset
Fig. 2
Fig. 4
TERMINALS COLOUR CODE
1
Orange
2
Green
3
Brown
4
Grey
5
Light blue
6
Violet
7
Red/black
8
Red/green
9
Red/blue
- 1 -
65339820 - V4.0 - 15/07/19
