Videx KR-AV Kristallo Series Installation Instructions Manual

Kristallo Series
Art. KR-AV

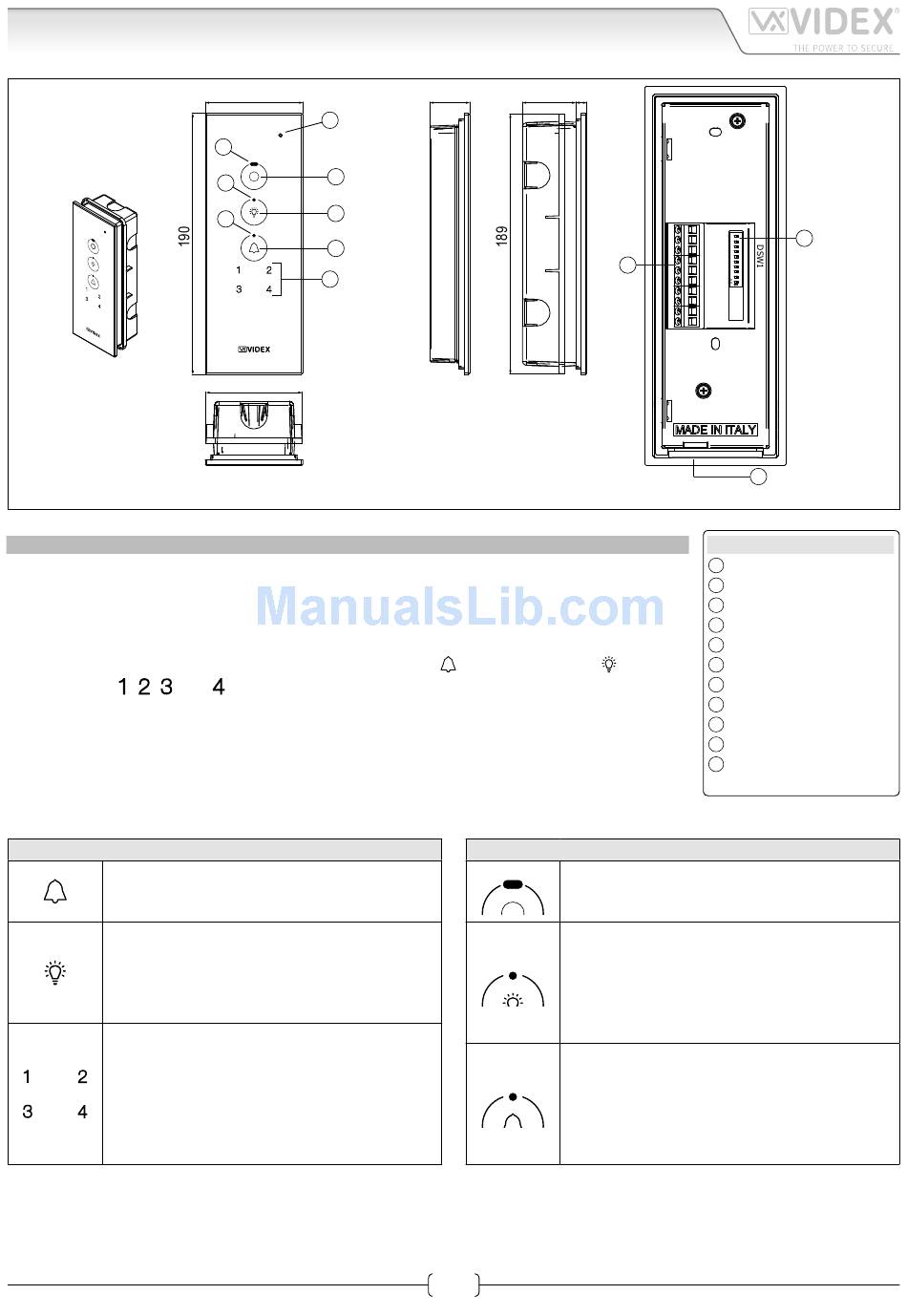

Fig. 1
DESCRIPTION
Digital audio/video door entry panel in the Kristallo design for indoor use only and to work with the
VIDEX VX2200 digital system.
Normally used on installations where each apartment requires an internal intercom directly outside
their apartment.
The panel includes an hd colour camera (650 lines with 90º of viewing angle) plus the illumination
LEDs (infrared light), the speaker unit module, one call button
meric buttons ( , , and
10 Way dip-switch bank of which 8 (1 to 8) are used to set the address of the videophone to call, the
nineth to set the door opening time (2 seconds = OFF, 6 seconds = ON) and the tenth to restore the
engineer's code to factory default.
8 digit numeric access code programmable through the 4 numeric buttons.
Loudspeaker and microphone volume adjustable through two trimmers on the bottom of the unit.
Block exchangers are not required.
PUSH BUTTONS
Call button
Press to call the videophone with same PHONE
ID programmed on the 10 way dip-switch bank.
Stairs light button
Press to enable the relevant "LGT" active low
open collector output (Maximum 100mA). Nor-
mally used as stair light button (a specific con-
nection is requested to operate).
Code buttons
Press to enter the door opening code and acti-
vate the relevant "REL" active low open collector
output (Maximum 100mA). Use the same but-
ton also to program the door opening code (a
specific connection is requested to operate the
door opening code).
Art. KR-AV - Installation instructions
Indoor Digital A/V door panel for VX2200
71
A
B
C
D
E
F
G
H
70
) for coded access using an eight digits code.
29 39 8
, one service button
LEDS
Camera IR LEDs
Provide the camera illumination during the call
and the conversation.
Stairway lighting LED
Normally turned ON during the standby, tempo-
rarily flashes quickly when the relevant button
is pressed.
When the unit is in door open code program-
ming mode, the LED flashes quickly.
Call LED
Normally turned ON during the standby, tempo-
rarily flashes slowly (during the call or conversa-
tion) when the relevant button is pressed .
When the unit it is in door open code program-
ming mode, the LED flashes quickly.
1
REL REL REL
LGT LGT LGT
V1-O V1-O V1-O
V2-O V2-O V2-O
I
V1-I V1-I V1-I
V2-I V2-I V2-I
L-O L-O L-O
L-I L-I L-I
Gnd Gnd Gnd
12V 12V 12V
M
LEGEND
Microphone
A
Camera IR LEDs
B
Colour Camera
C
Stairway lighting LED
D
Stairway lighting button
E
Call LED
and 4 nu- F
Call button
G
Push buttons
H
Connection Terminals
I
Dip Switch
L
Microphone &
M
loudspeaker trimmer
66250935-EN - V1.2 - 15/01/16
