Videx KRV98 Connections

Kristallo Series
Art. KRV98-KRV96

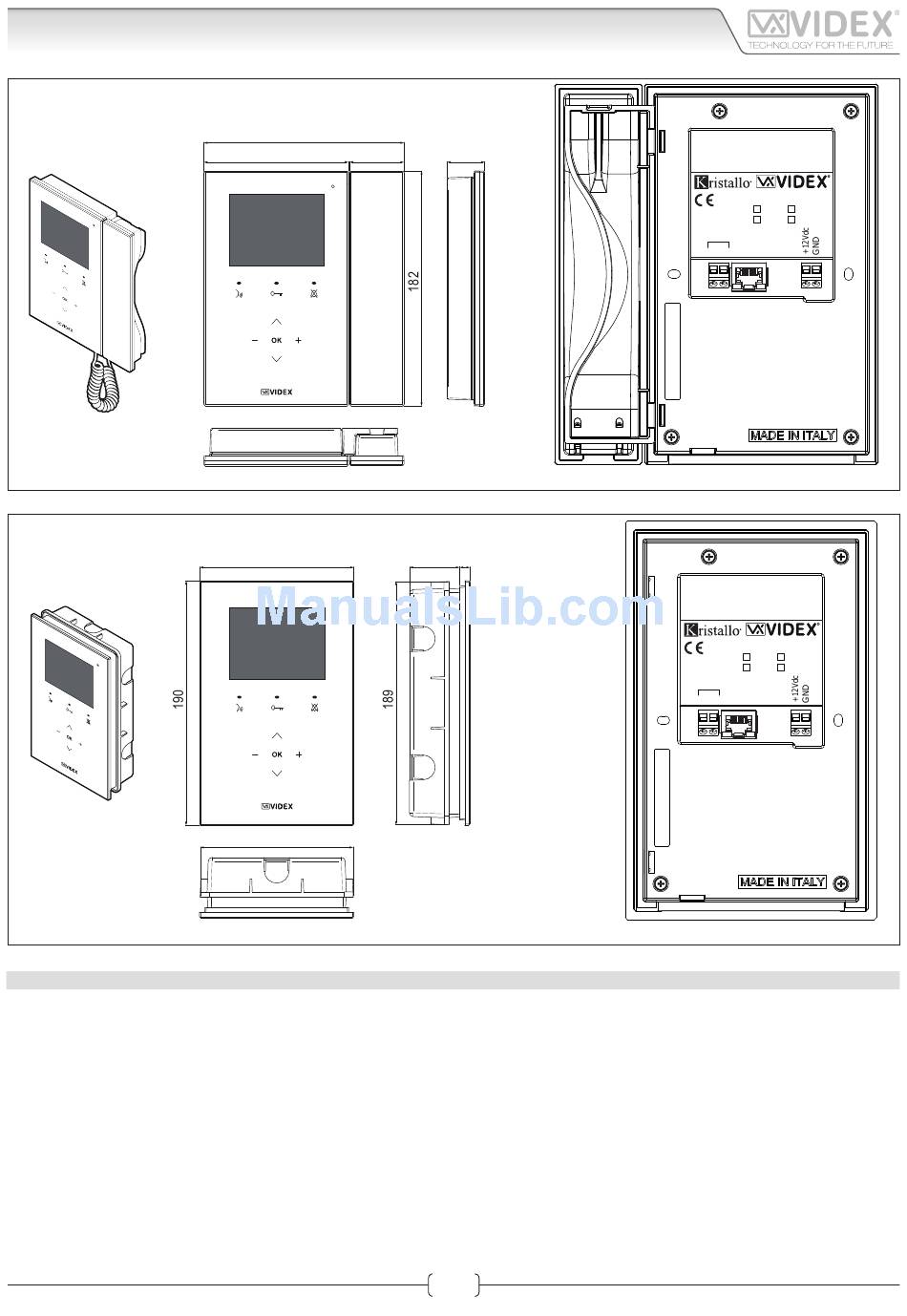

Fig. 1 KRV96
Fig. 2 KRV98
DESCRIPTION
• Kristallo design with touch sensitive buttons;
• 3.5" LCD TFT High Definition Display
• Available in a flush mounting (handsfree) version or surface mount version with handset (for handsfree or conventional). A desk
mount kit is available for the surface with handset version,
• 10/100 Mbit Ethernet interface;
• PoE or 12Vdc power supply;
• Compatible with the SIP protocol (it can be connected with VOIP switchboard systems);
• Built in web server to set operation parameters;
• Firmware can be updated through a web server;
• Self search function and self setting of Videx IP devices connected on the same network;
• Integrated picture memory facility with automatic capture;
• Privacy function with programmable activation time from 30 min to 24 h or unlimited;
• History of events;
Art. KRV98-KRV96 - Installation instructions
3.5" IP Videointercom
155
112 42
120
119
29
39 8
28
27
26
25
24
23
22
21
20
19
18
17
16
15
1
Connection
Made in Italy
KRV98
KRV96
CAN BUS
H L LAN
14
13
12
11 Made in Italy
10
KRV98 /W (white)
KRV96 /B (black)
9
8
CAN BUS
7
H L LAN
6
5
4
3
2
1
