Kristallo Series
Art. KRA78-KRA76
106
63
42
A
B
C
D

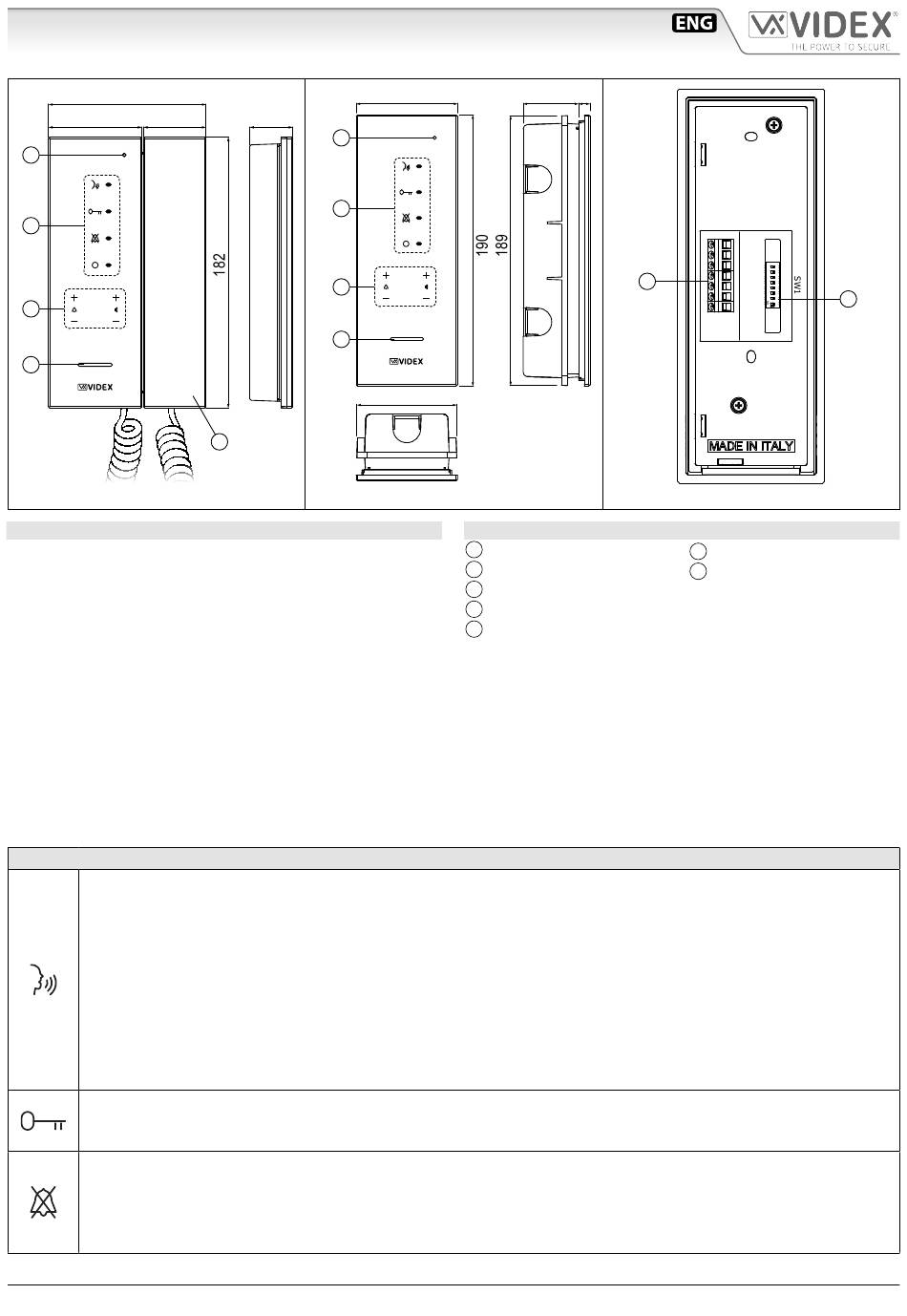

Fig. 1 Art. KRA76 front
DESCRIPTION - DESCRIZIONE
Intelligent Hands free intercom for the VX2200 digital system
with touch sensitive buttons for "door open/concierge call", "an-
swer/camera recall", "privacy" and "service" plus 4 buttons for
volume adjustment and programming plus 4 LEDs related to the
intercom operation. For the surface version only (Art. KRA76), a
handset can also be used in addition to the handsfree mode.
The following programmable options are available:
• Call tone volume.
• Speech volume.
• Intercom address (from 1 to 180).
• Privacy duration (from 30 minutes to 20 hours or unlimited).
• Call melodies (9 available).
• Number of rings (from 1 to 9).
• Intercommunication mode/ Extension ID (from firmware release 2.0 and later).
Additionally the Kristallo has an input for local door bell and alarm.
PUSH BUTTONS AND CONTROLS
• Press this button during an incoming call to open the speech in half duplex mode allowing free speech with the caller
in both directions (The related LED will illuminate).
• During a conversation, momentary operation of this button will end the call. The LED next to the button will switch
off. The system will automatically switch off when the conversation time expires.
• Press and hold this button (more than 1 second), during an incoming call or a conversation in progress, to allow the
user to answer a call from a visitor at the door station in SIMPLEX speech mode (The related LED will flash rapidly):
releasing the button will allow the user to listen to the visitor (The LED will flash slowly). Press and hold the button
when you talk to the visitor and release the button when you listen to the visitor.
• When the system is in standby, (No calls on the system) operation of this button will open the speech to the door
station (Only when the recall facility is enabled). The related LED will illuminate. Press as many time as the ID value of
the door panel to connect to.
• During a conversation, operation of this button will release the door from where the call originated. This will be con-
firmed by an acoustic tone. If terminal DL is connected, the "door open" LED next to the button will also be illuminated.
• When the system is in stand-by, a button press will book a call to the concierge (If available)
• When the system is in stand-by, press this button to enable the service for the programmed time: the related LED will
illuminate to signal the service enabled. During an incoming call, with the service enabled, the device does not emit
any acoustic signal. The service is disabled when the programmed time expires or pressing again the button.
• When the system is in stand-by, keep pressed this button until the unit emit a beep and the related LED switches ON
to enter to privacy duration programming menu.
Art. KRA78-KRA76 - Installation instructions
Handsfree intercom
29
A
B
C
D
E
Fig. 2 Art. KRA78 front
71
39
70
LEGEND
Microphone
A
Operating buttons and LED's
B
Adjustment buttons
C
Speaker
D
Handset
E
- 1 -
8
DOL
SB
AL
LB
F
L
_
12Vin
Fig. 3 Art. KRA78 back
Connection terminals
F
8 way dip switch bank
G
66250930 - V4.0 - 15/05/19
Rev.0.2
G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kristallo Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Videx Kristallo Series

Summary of Contents for Videx Kristallo Series

  • Page 1 Kristallo Series Art. KRA78-KRA76 Handsfree intercom Rev.0.2 12Vin Fig. 1 Art. KRA76 front Fig. 2 Art. KRA78 front Fig. 3 Art. KRA78 back DESCRIPTION - DESCRIZIONE LEGEND Microphone Intelligent Hands free intercom for the VX2200 digital system Connection terminals Operating buttons and LED’s with touch sensitive buttons for “door open/concierge call”, “an-...

  • Page 2: Unit Initialization

    Kristallo Series Art. KRA78-KRA76 Handsfree intercom PUSH BUTTONS AND CONTROLS Press this button to enable the active low output SB for 2 seconds. The related LED illuminates and the intercom emits two beep. When the system is in stand-by, press (the intercom emits a beep) to increase or decrease the volume level of the call tone: two short beeps signal the maximum or minimum level reached.
  • Page 3 Kristallo Series Art. KRA78-KRA76 Handsfree intercom PROGRAMMING Before connecting the intercom to the system, it is important to set the intercom address by the 8 way dip-switch on the back of the unit. All other programming must be made with the intercom connected, powered and in stand-by.

  • Page 4: Technical Specification

    Kristallo Series Art. KRA78-KRA76 Handsfree intercom INTERCOMMUNICATION MODE AND EXTENSION ID. SETUP 1. Press and keep pressed button for 5 seconds to enter intercommunication mode and extension ID setup: the LED turns on and the unit emits a “beep“; 2. Two intercommunication options are available: »...
  • Page 5 Kristallo Series Kristallo Series Flush and surface intercoms wall mounting instructions Fig. 1 Fig. 2 Fig. 4 Fig. 3 Fig. 5 Fig. 6 Fig. 7 Fig. 9 Fig. 10 Fig. 8 - 5 - 66250930 - V4.0 - 15/05/19 Art. KRA78-KRA76 - Installation instructions...
  • Page 6 Kristallo Series Kristallo Series Flush and surface intercoms wall mounting instructions FLUSH KRISTALLO INTERCOM – MOUNTING INSTRUCTIONS 1. Protect the holes to fix the intercom to the flush mounting box then embed the flush mounting box in line with the wall in vertical position at 135cm height from the floor as shown in Fig.

  • Page 7: Pulsanti E Regolazioni

    Serie Kristallo Art. KRA78-KRA76 Citofoni vivavoce Rev.0.2 12Vin Fig. 1 Art. KRA76 fronte Fig. 2 Art. KRA78 fronte Fig. 3 Art. KRA78 retro DESCRIZIONE LEGENDA Microfono Citofono vivavoce intelligente specifico per il sistema VX2200 Morsettiera di connessione Pulsanti e LED operativi con pulsanti touch sensitive aventi funzione di “apri-porta/chia- Dip-switch ad 8 vie Pulsanti regoalzioni mata a portiere”, “risposta/auto-accensione”, “privacy”...

  • Page 8: Ricezione Di Una Chiamata

    Serie Kristallo Art. KRA78-KRA76 Citofoni vivavoce PULSANTI E REGOLAZIONI A videocitofono in conversazione o in stand-by, premere questo pulsante per abilitare l’uscita di tipo basso SB per 2 secondi. Il relativo LED si illumina per 2 secondi e il citofono emette 2 bip. Con il sistema in stand-by, premere (il citofono emette un bip ad ogni pressione) per incrementare o decremen- tare il volume della nota di chiamata: un doppio bip rapido segnala il raggiungimento del massimo o del minimo livello.
  • Page 9 Serie Kristallo Art. KRA78-KRA76 Citofoni vivavoce PROGRAMMAZIONE Prima di collegare il citofono, si suggerisce di provvedere alla programmazione dell’indirizzo dello stesso tramite il dip-switch a 8 vie accessibile sul retro dell’unità. Le altre programmazioni devono essere effettuate con il citofono alimentato e in stand-by. IMPOSTAZIONE INDIRIZZO CITOFONO (PHONE ID) SW1 L’indirizzo del videocitofono è...

  • Page 10: Specifiche Tecniche

    Serie Kristallo Art. KRA78-KRA76 Citofoni vivavoce IMPOSTAZIONE MODO DI INTERCOMUNICAZIONE E NUMERO D’INTERNO (EXT.ID) 1. Premere e mantenere premuto il pulsante per 5 secondi per entrare in modalità impostazione intercomunicazione e indi- rizzo di interno: il LED LED si accende e l’unità emette un “bip”; 2.
  • Page 11 Serie Kristallo Serie Kristallo Istruzioni di montaggio a parete citofoni da incasso e da superficie Fig. 1 Fig. 2 Fig. 4 Fig. 3 Fig. 5 Fig. 6 Fig. 7 Fig. 9 Fig. 10 Fig. 8 - 11 - 66250930 - V4.0 - 15/05/19 Art. KRA78-KRA76 - Istruzioni di installazione...

  • Page 12: Citofono Kristallo Da Incasso - Istruzioni Di Montaggio

    Serie Kristallo Serie Kristallo Istruzioni di montaggio a parete citofoni da incasso e da superficie CITOFONO KRISTALLO DA INCASSO – ISTRUZIONI DI MONTAGGIO 1. Proteggendo i fori di fissaggio del citofono alla scatola da incasso, murare a filo muro la scatola da incasso in posizione verticale lasciando circa 135cm tra la parte inferiore della scatola e il pavimento come mostrato in Fig.
  • Page 13 - 13 - 66250930 - V4.0 - 15/05/19...
  • Page 14 - 14 - 66250930 - V4.0 - 15/05/19...
