Videx Kristallo Series Manual

Kristallo Series
Art. KR-AV-VR
40mm
80mm
VRFB100x270
Flush Box
104mm
KR-AV-VR-SB
Surface Box

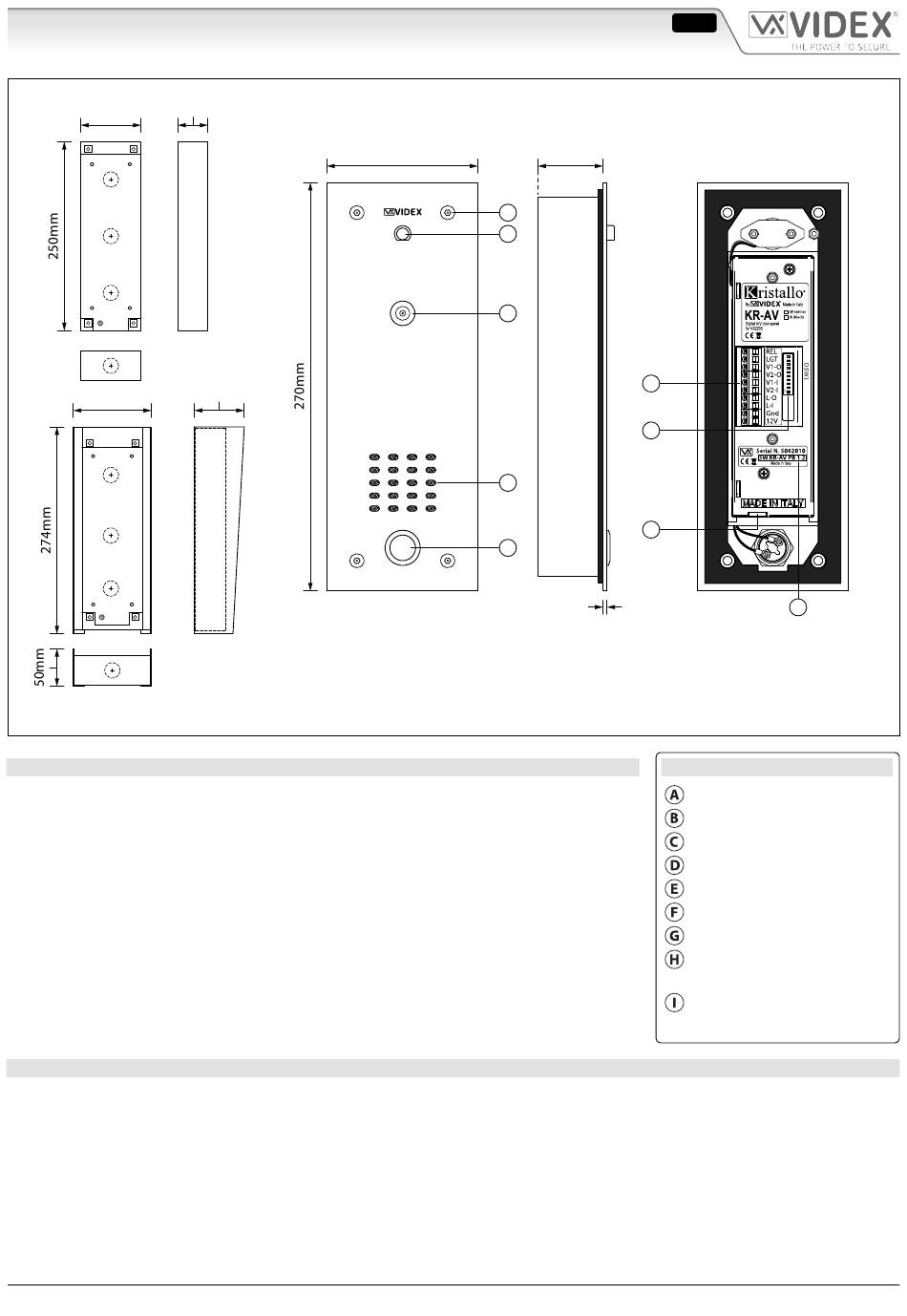

Fig. 1
DESCRIPTION

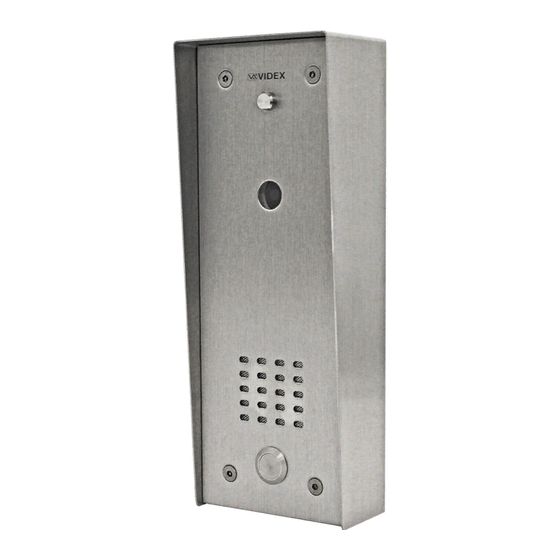

Vandal Resistant Digital audio/video door entry panel for internal or external use, to work
with the VIDEX VX2200 digital system and is available with a flush back box (VRFB100x270)
as standard or optional surface back box (KR-AV-VR-SB), see Fig.1.
Normally used on installations where each property or apartment requires a local intercom
door station directly outside their property or apartment.
The panel includes an HD colour camera (650 lines with 90º of viewing angle) plus the speaker
unit module and a single call button.
10 Way dip-switch bank (DSW1) of which 8 (1 to 8) are used to set the address of the
videophone to call, the ninth is used to set the door opening time (2 seconds = OFF, 6
seconds = ON). The tenth is not used.
Loudspeaker and microphone volume adjustable through two trimmers on the bottom of
the unit. Block exchangers are not required.
OPERATION
To Call the Apartment
Press the call button on the panel:
• The KR-AV-VR panel will call the apartment emitting a low volume beep at 2 second intervals (approx.).
• When the apartment answers the conversation can begin.
• When the conversation is finished and the call is closed down the panel will revert back to standby mode.
In the event that the videophone is in privacy mode or if there is no answer (system busy), the call will stop automatically after
approximately 40 seconds.
Art. KR-AV-VR - Installation Instructions
Vandal Resistant Digital A/V Door Panel for VX2200
65mm
100mm
A
B
C
D
E
Front View
2.5mm
- 1 -
ENG
40mm
F
G
H
LEGEND
Countersunk Security Screws
Microphone
Colour Camera
Speaker
Call Button
Connection Terminals
Dip-switch (DSW1)
Microphone & loudspeaker
trimmer
Current Firmware
(SW.KR-AV PB 1.2)
Rear View
I
ENUK - V1.0 - 08/06/18
