Handsfree intercom kristallo series
Hide thumbs Also See for KRA78:

Advertisement

Quick Links

Kristallo Series
Art. KRA78-KRA76

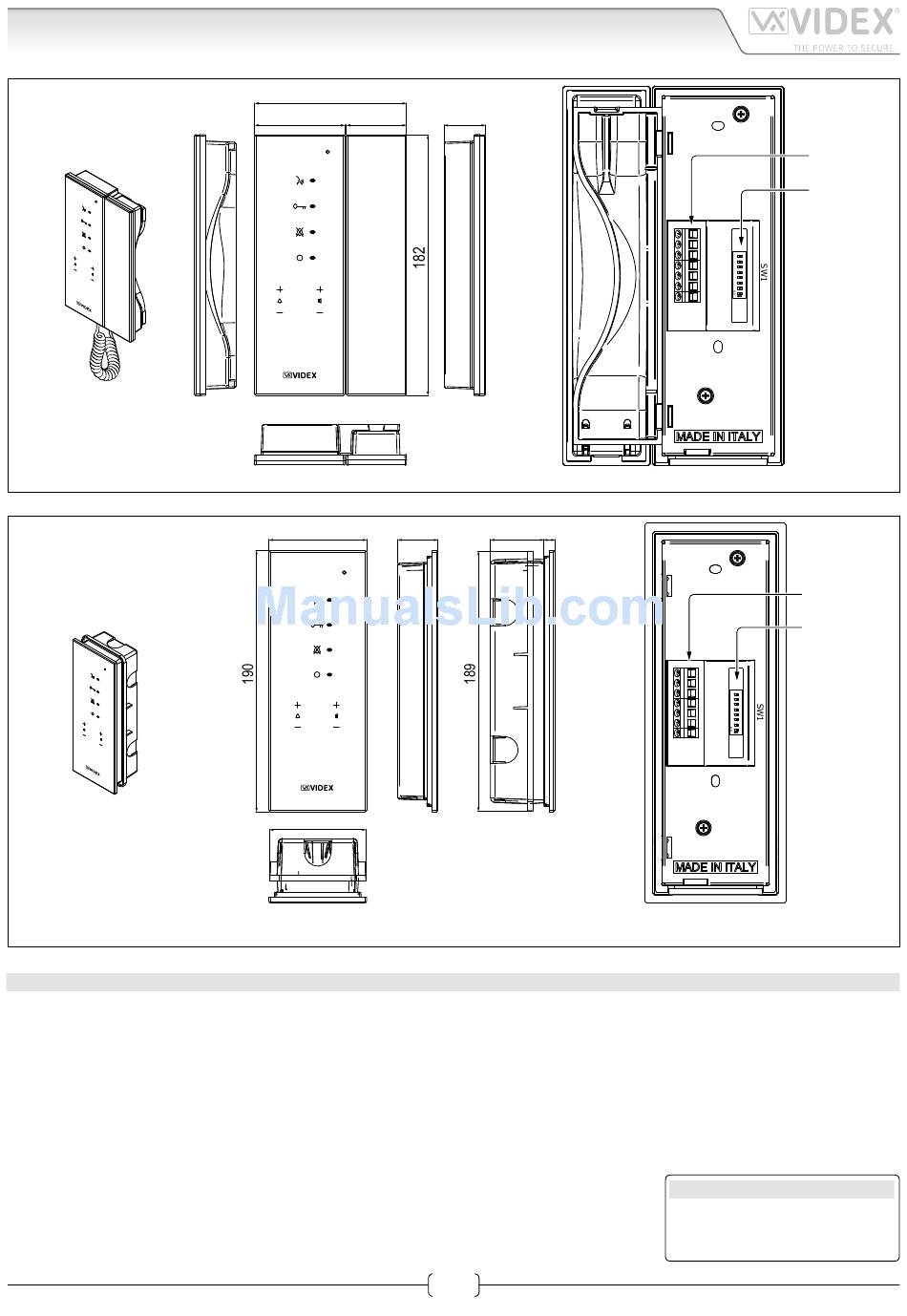

Fig. 1 Art. KRA76
Fig. 2 Art. KRA78
DESCRIPTION
Intelligent Hands free intercom for the VX2200 digital system with touch sensitive buttons for "door open/concierge call", "answer/
camera recall", "privacy" and "service" plus 4 buttons for volume adjustment and programming plus 4 LEDs related to the intercom
operation. For the surface version only (Art. KRA76), a handset can also be used in addition to the handsfree mode.
The following programmable options are available:
• Call tone volume.
• Speech volume.
• Intercom address (from 1 to 180).
• Privacy duration (from 30 minutes to 20 hours or unlimited).
• Call melodies (9 available).
• Number of rings (from 1 to 9).
• Intercommunication mode/ Extension ID (from firmware release 2.0 and later).
Additionally the Kristallo has an input for local door bell and alarm.
Art. KRA78-KRA76 - Installation instructions
Handsfree intercom
106
63
42
29
71
29
70
1
39
8
LEGEND
 Connection terminals
 8 way dip switch bank to set
DOL
SB
AL
LB
L
_
12Vin
DOL
SB
AL
LB
L
_
12Vin
videophone address
66250930-EN - V2.2 - 15/01/16
