Package Contents

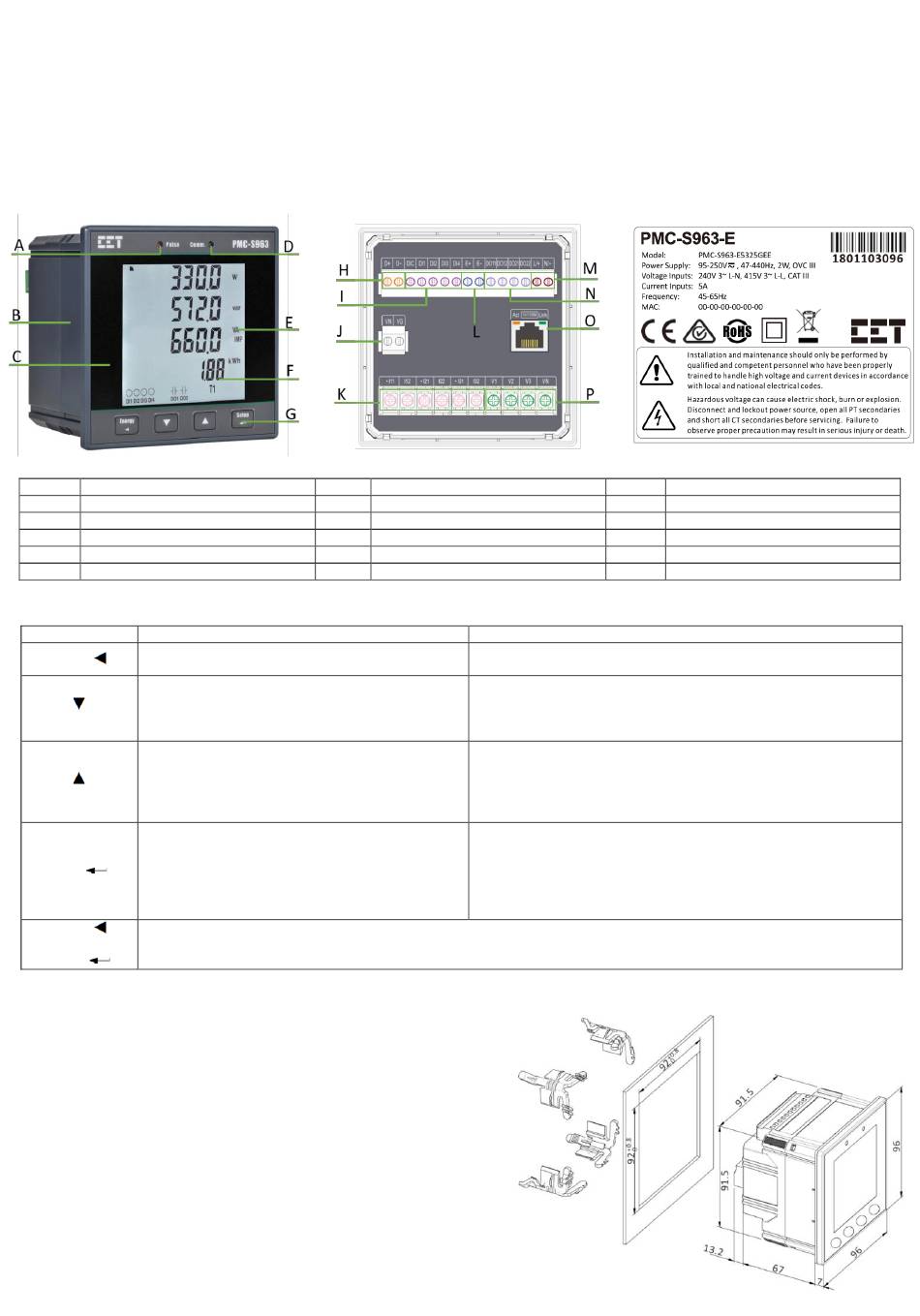

Meter Overview
Front View
A
kWh/kvarh LED Pulse Output
B
Enclosure
C
Front Panel
D
Communication Indicator
E
F
Measurements
Using the Front Panel Buttons
Buttons
Pressing this button toggles between Real-time
<Energy/
>
Measurements* and Energy Measurements.
Pressing this button advances to the next measurement
< >
page.
Pressing this button returns to the previous measurement
< >
page.
Pressing this button returns to the default page (P/Q/S
Total).
<Setup/
>
Pressing this button for more than 2 seconds enters the
Setup Configuration mode.
<Energy/
>
Pressing this combination for 2 seconds toggles between the Data Display and Quick Setup mode, which provides quick access to setup
&
parameters such as CT1, CT2, PT1, PT2, IP (Ethernet IP Address) and ID (Unit ID).
<Setup/
>
* The Real-time Measurements include P/Q/S per Phase and Total, ULN/ULL/I/PF per Phase and Average, Inc, Ung as well as Freq., P Present and Predicted Demands as well as This/Last Max.
Demand, U & I Phase Angle, Unbalances, THD/TOHD/TEHD per Phase and Individual Harmonics from 2
Mounting the Meter
Remove the installation clips from the meter.
Fit the meter through a 96mmx96mm cutout as shown in the
right Figure.
Re-install the installation clips and push the clips tightly
against the panel to secure the meter.
PMC-S963-E Quick Start Guide
a. PMC-S963-E with all mounting clips and plug-in connectors installed
b. Factory Test Report
c. CD with PMC-S963-E User Manual
d. Quick Start Guide (this document)
Rear View – 4xDI, 2xDO, 1xSS Pulse Output
G
H
I
J
Units
K
L
Data Display Mode
Version 1.0
Buttons
RS-485 Terminals
DI Terminals
Ung Input Terminals
Current Input Terminals
Solid-State Pulse Outputs
Once a numeric parameter is selected, pressing this button moves the cursor to
the left by one position. Otherwise, this button is ignored.
• Before a parameter is selected for modification, pressing this button advances
to the next parameter or menu.
• If a parameter is already selected, pressing this button decrements a numeric
value or advances to the next enumerated value in the selection list.
• Before a parameter is selected for modification, pressing this button returns
to previous parameter or menu.
• If a parameter is already selected for modification, pressing this button
increments a numeric value or goes back to the last enumerated value in the
selection list.
• Once inside the Setup Configuration mode, pressing this button selects a
parameter for modification or chooses whether to enter a sub-menu.
• After changing the parameter pressing this button again saves the new setting
into memory.
• Pressing this button for more than 2 seconds returns to previous menu or exits
Setup Configuration mode.
nd
to 31
st
.
Serial Number & Warning Labels
M
Power Supply Terminals
N
DO Terminals
O
Ethernet Port
P
Voltage Input Terminals
Setup Configuration Mode
Revision Date: July 26, 2023
