INSTRUCTION MANUAL

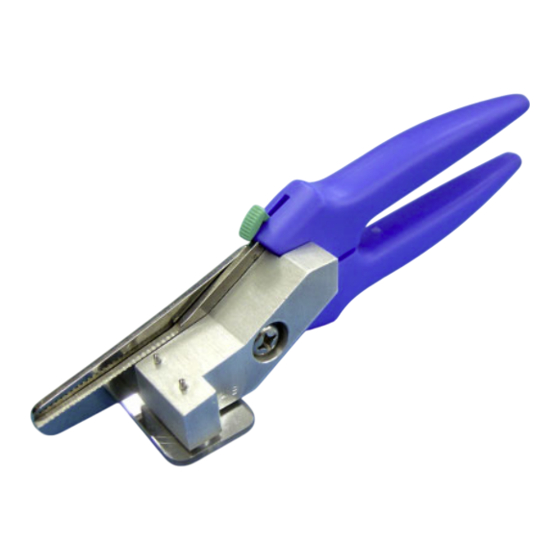

Tape Cutting Jig
Splicing Tape
G-S038-01, 02, 03, 04
UIC Manual ID No. 50391921
Read this instruction manual carefully and keep it at hand.
• Before operating the machine, read these safety instructions
carefully and fully understand them.
• Always keep this instruction manual carefully at hand to refer it
anytime and anywhere.
G-S037-02
5588 Series
