Instruction manual
4500
The health and safety instructions,
translations of the EC Declaration
of Conformity
are set out in the
document supplied with your printer,
as well as in PDF format on your DVD.
Printer
and Interface Overview
Starting up /
Shutting down the Printer
Printing a job
Editing and Previewing a job
Printer Maintenance
Ink Bottle Replacement
Troubleshooting
Information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the markem-imaje 4500 and is the answer not in the manual?

Questions and answers

Related Manuals for Dover markem-imaje 4500

Summary of Contents for Dover markem-imaje 4500

  • Page 1 Instruction manual 4500 The health and safety instructions, translations of the EC Declaration of Conformity are set out in the document supplied with your printer, as well as in PDF format on your DVD. Printer and Interface Overview Starting up / Shutting down the Printer Printing a job Editing and Previewing a job...

  • Page 2: Printer Overview

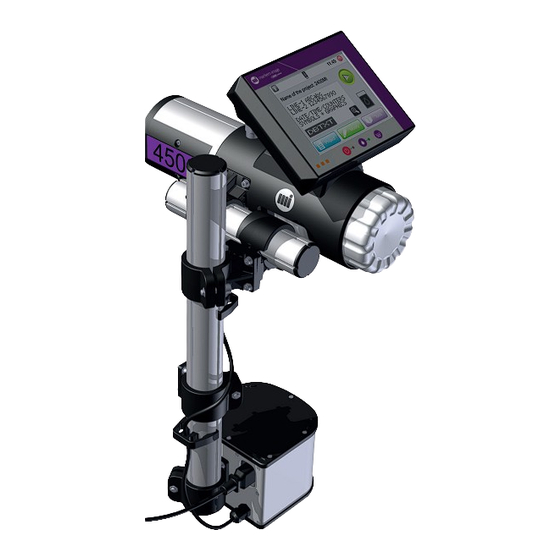

    Printer overview 1. Printhead 2. Control Unit (display: 5.7”/144.8mm diagonal) 3. Enclosed Ink system 4. Ink bottle (1.0 or 0.5 liter) 5. Enclosed power supply 6. Disconnectable power cable 7. Support beam 8. Nozzle plate 9. Photocells (Product sensors) 10. Manufacturer's plate Instruction manual...

  • Page 3: Interface Overview

    Interface overview 1. Printer information bar; colored background 2. Shut down icon 3. Start/pause printing icon 4. Printing status; colored background 5. Ink level indicator 6. Purge button 7. Printing status LED 8. Start/pause printing button 9. Printer status LED 10.
  • Page 4 Presentation of the menus Instruction manual...
  • Page 5 Presentation of the menus * available for available for ■ Instruction manual...

  • Page 6: Starting Up The Printer

    Starting up the Printer 00:00:30 00:00:15 BOX job is ready to be printed. Instruction manual...

  • Page 7: Shutting Down The Printer

    Shutting down the Printer Press to shut down To shut down the printer in the printer in regular emergency mode, press and hold mode. 4 seconds. 00:02:00 00:00:05 if necessary Instruction manual...
  • Page 8 Printing the current job BOX job is ready to be printed. press any Update any variable fields, if necessary or enter values for the fields with the attribute “edit before printing”. BOX job is printing. Instruction manual...
  • Page 9 Printing the current job Pause Start Instruction manual...
  • Page 10 Selecting a job to print Press (Jobs). job selected for printing Select a job to print (1). Job preview. Press (2). CHOCOLATE job is ready to be printed. Instruction manual...

  • Page 11: Editing A Job

    Editing a job Press (Jobs). Select a job to edit (1). Job preview. Press (2). Select a field to edit (1). Editable fields are highlighted in blue. Press (2). Editing field parameters. Instruction manual...
  • Page 12 Editing a Job Edit the field (1). Press (2). Window similar to that at step but a field is edited. Accept the modification. Edited job preview. Save the job Window similar to that at step . Press Main screen with edited job.
  • Page 13 Preview a job Job Preview Enlarged image preview (shown at 200%). The image can be enlarged to occupy the entire height of the preview window. Shown at real size (100%). Press to return to the main screen. Instruction manual...

  • Page 14: Printer Maintenance

    Printer Maintenance Nozzle plate cleaning Shut down the printer. Start up the printer. Printhead purging Make sure that the printer environment is not contaminated with the cleaner dripping from the nozzle plate during rinsing. Press and hold the Purge button. Use only Markem-Imaje consumables designated for use with the 4500.
  • Page 15 Ink Bottle Replacement Fault Warning Printing not possible. Ink bottle replacement Ink bottle replacement necessary. recommended. 11:49 11:49 Name of the project Name of the project Markem-Imaje Markem-Imaje 4xxx-DOD 4xxx-DOD Project Modify Tool Project Modify Tool Remove ink bottle. Prepare a new bottle. broken Encre / Ink 4157W...

  • Page 16: Troubleshooting

    Troubleshooting 11:49 Name of the project Markem-Imaje 11:49 4xxx-DOD Name of the project Markem-Imaje Project Modify Tool 4xxx-DOD Project Modify Tool Example alarm message Meaning Low ink level ! Prepare a new ink bottle. Ink bottle empty ! Replace ink bottle. Instruction manual...
  • Page 17 Information S/N: Serial number: For Marking & Coding Equipment. Photographs and drawings are not binding in detail. Original manual. This document was originally written in English. The English text of this document shall alone be authentic and shall prevail if the event of a dispute. Markem‑Imaje reserves the right to modify the specifications of its products without prior notice.
  • Page 18 Markem-Imaje Industries 9, rue Gaspard Monge ‑ B.P. 110 26501 BOURG‑LES‑VALENCE Cedex - France tel 33 (0)4 75 75 55 00 fax 33 (0)4 75 82 98 10 A51526-A 10/2015 www.markem-imaje.com...
