Summary of Contents for Dover markem-image eTouch-S 2200 Series

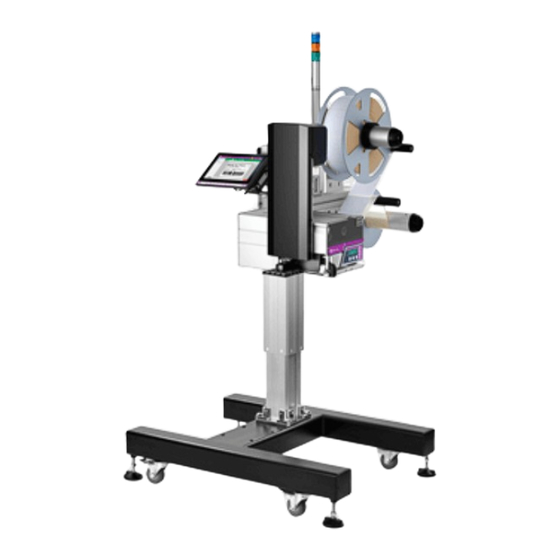

- Page 1 User Manual 2200 Series Applicator Touch - S ®...
- Page 2 User manual Touch-S ® „ Contents Safety „ Description „ Installation „ Mounting the assembly Electrical connections Signal Cable Connection Home position adjustment „ WebUI - settings „ Operating / Safety „ Servicing „ Errors and Alarms „ 91 - Maintenance mode 80 - No Applicator Comms.
- Page 3 User manual Touch-S ® „ Safety Keep this information to hand so you can refer back to it at a later date. WARNING The health and safety instructions and translations of the Declaration of Incorporation are set out in the document supplied with your applicator. The eTouch-S applicator is intended to be used in conjunction with the Markem-Imaje 2200 Printer.
- Page 4 User manual Touch-S ® „ Installation To operate this product safety, please observe the following: WARNING • Do not lean on, or apply excessive force to the arm • For safety, an external fuse must be connected to the power source •...
-
Page 5: Electrical Connections
User manual Touch-S ® Align the applicator position with the label path and tighten screws for the bracket Electrical connections Before starting any electrical work on the applicator, make sure the power is turned OFF. AC Power Connection: The applicator requires its own power supply which is delivered with the applicator. - Page 6 User manual Touch-S ® Signal Cable Connection Connect the M16 signal cable to the applicator and other end to the 2200 print unit. „ Home position adjustment The pad position can be adjusted by ±4mm to fine tune the feed out of the label onto the pad. Loosen the cover screw at the back of the applicator and remove the cover.
- Page 7 User manual Touch-S ® Apply delay: Sets a delay from main trigger signal to movement of the applicator arm Expected pack distance (mm): The expected distance from applicator pad to the packs on the line Softtouch impact threshold: Sensitivity setting for when the arm returns after a package has been detected Softouch pre distance (mm): Distance subtracted from the expected pack distance where the arm starts to...
- Page 8 User manual Touch-S ® „ Servicing • Make sure the power is OFF to avoid an electric shock or burn when repair or replacing parts • Clean the body and pole with a soft, moist cloth (Do not use paint thinner, benzine, gasoline or oil) „...
- Page 9 User manual Touch-S ® 93 - Collision The collision error is displayed if an object is hit outside of the soft touch zone. To clear the error, the button on the display must be pressed. The applicator will move back to home position and re- calibrate itself.
- Page 10 User manual Touch-S ® 96 - Safety Trip This error should normally never occur during normal operation. It is a safety mechanism seen if the arm has been traveling too fast. Power-cycle the applicator to reset it. 97 - Pack Missed The pack missed alarm is raised if the arm moves out beyond its post-impact distance without making contact with a pack.
- Page 11 User manual Touch-S ® „ Specifications Please Note: Because of continual product improvement, specifications may change without notice. MAIN FEATURES eTouch-S 250mm - Short Stroke length 400mm - Medium 800mm - Long Touch Throughput 250 – Up to 155 ppm (Label Size - 100x20mm - 25mm Apply) 400 –...
- Page 12 User manual Touch-S ® „ Revision Instructions update - The revision A index corresponds to the first edition of this manual. - The revision index changes with each update. Date Published Revision 07/2022 For Marking & Coding Equipment. Photographs and drawings are not binding in detail. This document was originally written in English. The English text of this document shall alone be authentic and shall prevail in the event of a dispute.
- Page 13 Markem-Imaje Industries Alexander Flemming Building Nottingham Science Park University Boulevard Nottingham NG7 2QN 00017067-TEM-AA 07/2022 www.markem-imaje.com...
