Page 1: Qbix-Pro Industrial Embedded System
QBiX-Pro-KBLB7100H-B1 (QP-7100A-SI) QBiX-Pro Industrial Embedded System Quick Start Guide www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
SCREW I HEAD FOR 25HDD M3x8L (25KSG-130081-K1R) 4 THERMAL PAD (25ST3-200052-T5R) THERMAL PAD (25ST3-200053-T5R) THERMAL PAD (25ST3-200051-T5R) CABLE SATA (25CF4-170020-S9R) TERMINAL BLOCKS MALE PLUG (25IO0-5ESDV0-D2R) Exsiccator (10g) If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: Table Of Contents
Safety Precautions ............... 6 FCC Statement ................8 Chapter 1 - Product Specifications Specifications ............... 13 Chapter 2 – QBiX-Pro-KBLB7100H-B1 (QP-7100A-SI) Industrial Embedded System Kit Dimension ..............16 Getting Familiar with Your Unit........17 A) Wireless Module: How to safely install the Module (Wireless Module inclusion may vary based on local distribution) .............. - Page 10 3.2.12 BKL_CN (Back light brightness control connector) ..40 3.2.13 SYS_PANEL (Front panel header) ........41 3.2.14 LVDS (LVDS Connector) ..........42 3.2.15 LSW (LVDS resolution jumper) ........43 3.2.16 BATTERY (Battery cable connector) ......44 3.2.17 JCOM1 (COM1 RI# pin RI#/5V/12V Select) ....45 www.gigaipc.com...
-
Page 11: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 12 www.gigaipc.com...
-
Page 13: Specifications
Specifications System QBiX-Pro-KBLB7100H-B1 (QP-7100A-SI) Dimension System Size : 178W x 125D x 52.7H (mm) Intel® Core™ i3-7100U Processor, 14nm, 2 cores, 4 threads 2.40 GHz, TDP 15W, 3 MB SmartCache Chipset 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB... - Page 14 System QBiX-Pro-KBLB7100H-B1 (QP-7100A-SI) Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Operation Non-operating temperature: -20°C to 70°C Temperature Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Vibration During Per Axis, with SSD/M.2 2280...
-
Page 15: Chapter 2 - Qbix-Pro-Kblb7100H-B1 (Qp-7100A-Si) Industrial Embedded System Kit
Chapter 2 Chapter 2 – QBiX-Pro-KBLB7100H-B1 (QP-7100A-SI) Industrial Embedded System Kit www.gigaipc.com... -
Page 16: Dimension
Dimension www.gigaipc.com... -

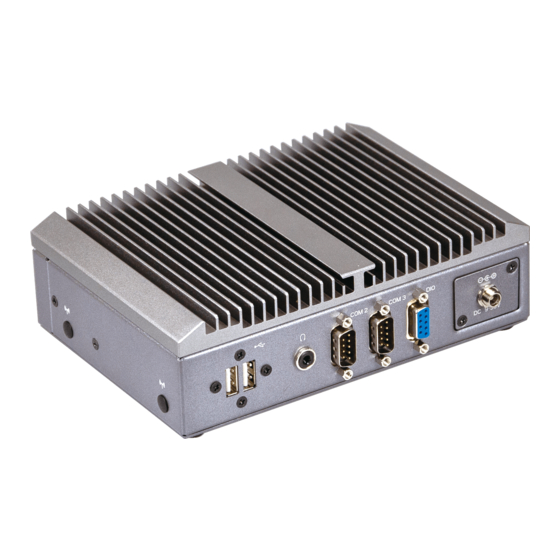

Page 17: Getting Familiar With Your Unit
[Right Side] 2 x USB2.0 1 x COM Port (COM2, RS-232) 2 x Antenna (optional) 1 x COM Port (COM3, RS-232) 1 x D-Sub Female (GPIO 8 bits) 1 x 3 pin Terninal Block connector 1 x Headphone Jack www.gigaipc.com... - Page 18 2 x DDR4 SO-DIMM sockets, Max. 1 x 2230 M.2 E-Key Capacity 32 GB, Support Dual 1 x 2280 M.2 M-Key Channel DDR4 2133 MHz (PCIe x4, SATA 6Gb/s) B 1 x Full-size miniPCIe with SIM slot 2.5’’ Hard drive/ SSD www.gigaipc.com...
-
Page 19: A) Wireless Module: How To Safely Install The Module (Wireless Module Inclusion May Vary Based On Local Distribution)
Module (Wireless Module inclusion may vary based on local distribution) Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 青山依舊在，幾度夕陽紅。慣看秋月春風。一 壺濁酒喜相逢，浪花淘盡英雄。是非成敗轉頭 Install the antenna on the left side of the connection wireless module down. 向下安裝連結於無線模組左側頂端天線。 www.gigaipc.com... -
Page 20: B) Memory Installation: Ddr4 So-Dimm
B) Memory Installation: DDR4 SO-DIMM SO-DIMM www.gigaipc.com... -
Page 21: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)
Antenna Installation (Antenna inclusion may vary based on local distribution) www.gigaipc.com... -
Page 22: Dio (Gpio) Pin Define
This port is limited to only 5V for the Pin No. Pin Define specific end products and are provided GPO_1 with a molded plastic Fire Enclosure. Rated GPO_2 minimum 94V-1 or Metal enclosure. GPO_3 GPO_4 GPI_1 GPI_2 GPI_3 GPI_4 www.gigaipc.com... -
Page 23: Support
Support ● For a list of tested memory, M.2, 2.5’’ SSD, wireless adapters and OS supported, go to: http://www.gigaipc.com ● To download the latest drivers and BIOS updates, go to: http://www. gigaipc.com ● For product support, go to: http://www.gigaipc.com www.gigaipc.com... -
Page 24: Safety And Regulatory Information
At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com... -
Page 25: Chapter 3 - Hardware Information
Chapter 3 Chapter 3 – Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 26: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. - Page 27 COM1 (COM RI# pin RI#/5V/12V Select) RUSB1 USB3.0 Connector RUSB2 19 HDMI2_DP HDMI connector (Bottom) & DP connector (Top) 20 LAN1, LAN2 LAN connector www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 28 23 M2M1 M.2 Slot, SATA/PCIeX4, NGFF2280 24 SIM-CARD Sim Card slot 25 MPCIE Mini PCIe full size, support 3G/4G module SODIMM1 DDR4 SO-DIMM Slot SODIMM2 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
-
Page 29: Cpu Fan (Cpu Fan Connector)
CPU FAN (CPU FAN connector) Pin 1 CPU FAN connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 30: System Fan (System Fan Connector)
System FAN (System FAN connector) Pin 1 System FAN Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 31: Com2, Com3, Com4 (Serial Port Header)
COM2, COM3, COM4 (Serial port header) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition No Connect RI/ 5V/ 12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 32: Fusb (Usb 2.0 Header)
3.2.4 FUSB (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 33: Sataiii_0, Sataiii_1 (Sata 6Gb/S Connector)
3.2.5 SATAIII_0, SATAIII_1 (SATA 6GB/S Connector) SATA Connector SATAIII_1,SATAIII_0 Connector PN Vendor WATM-07ABNB2BAUW3 WINWIN 770-83-07SW19 PINREX Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 34: Gpio_Cnt (General Purpose Input/Output Header )
GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Pin No. Definition GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK SMB_DATA 5V/ 1A www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 35: Satapw1, Satapw2 (Sata 6Gb/S Power Connector)
3.2.7 SATAPW1, SATAPW2 (SATA 6Gb/s power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 36: At_Cn (At/Atx Power Mode Select Jumper)
PINREX PH03N2-7BAN000 HORNGTONG Pin No. Definition AT MODE TXD5 ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 37: Dc_In (Dc In 1X4-Pin Power Connector )
3.2.9 DC_IN (DC IN 1x4-pin power connector ) Pin 1 DC in connector Connector PN Vendor 753-81-04TW00 PINREX Pin No. Definition Power Power www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 38: Spk_Out (Speaker Out Connector)
Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 39: Fp_Audio (Front Audio Connector)
3.2.11 FP_Audio (Front Audio connector) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition MIC_L MIC_R Detect HPOUT_R FAUDIO_JD No Connect HPOUT_L www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 40: Bkl_Cn (Back Light Brightness Control Connector)
3.2.12 BKL_CN (Back light brightness control connector) Pin 1 Back light brightness control Connector PN Vendor connector A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable Connector PN Vendor 721-81-05TW00 PINREX www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 41: Sys_Panel (Front Panel Header)
Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 42: Lvds (Lvds Connector)
Note: *The LVDS output connector of the unit is only intended to be connected to an UL/IEC/EN approval equipment with fire enclosure. CLK2+ CLK1+ CLK2- CLK1- www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 43: Lsw (Lvds Resolution Jumper)
1280 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 44: Battery (Battery Cable Connector)
3.2.16 BATTERY (Battery cable connector) Pin 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 45: Jcom1 (Com1 Ri# Pin Ri#/5V/12V Select)
Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V/ 1A (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V/ 1A (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. - Page 46 GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
