probst FTZ-I Translation Of Original Operating Instructions page 16

Grab for prefabricated concrete products
Hide thumbs Also See for FTZ-I:
Table of Contents

Advertisement

Operating
FTZ-I
V1
The device is mounted with a automatic release, that means the opening and closing of the gripping arms
results through the set down and lifting of the device.

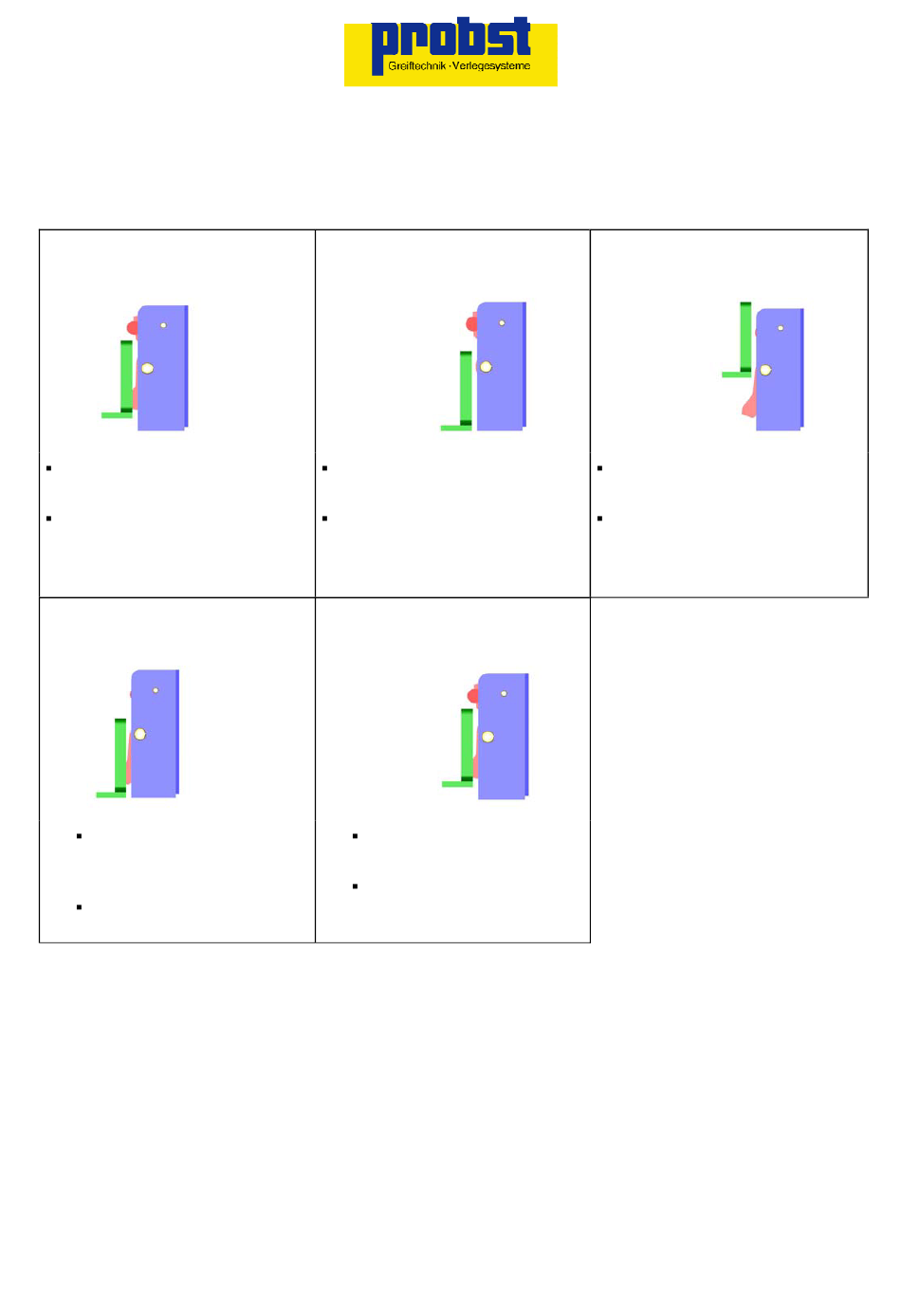

Pictures the positions of the automatic release
1
Device is lifted through the
support frame.
Gripping arms are opened.
4
Device is set down with
the gripping good (on the
ground).
Gripping arms are opened.
2
Device is set up on the
gripping good.
Gripping arms are opened.
5
1
/
Device is lifted through the
support frame.
Gripping arms are opened.
(laydown position of the
device on the ground)
12/01/10
3
Device is lifted through the
support frame.
Gripping good is clamped and
can be transported to the
destination.
16 / 20
