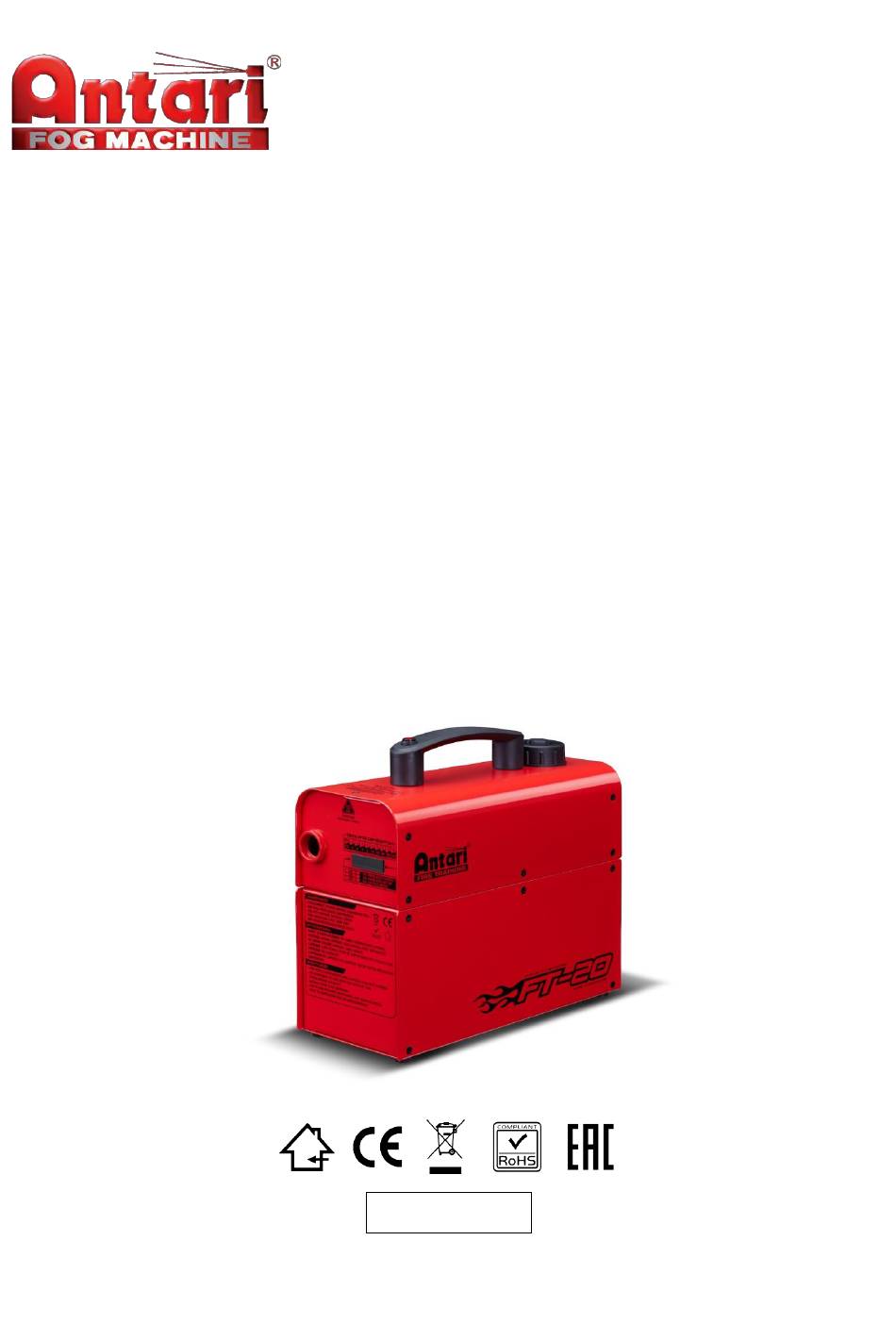

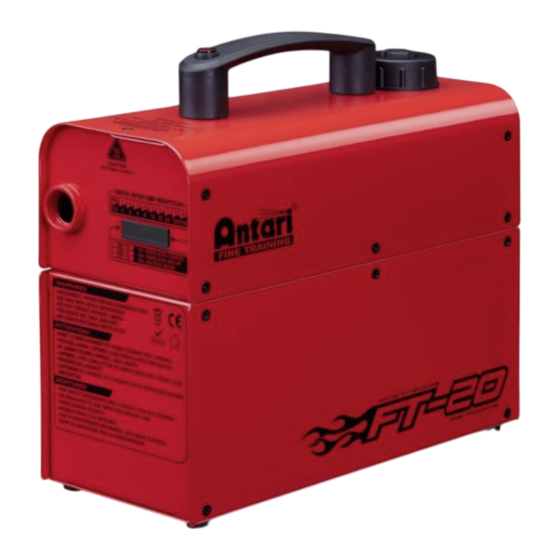

- Page 1 FT-20X Fire Training Fog Machine User Manual English © 2021 Antari Lighting and Effects Ltd.
-
Page 3: Safety Information
Pay attention to all warning labels and instructions in this manual and printed on the machine. If you have questions about how to operate the machine safely, please contact your local Antari dealer for help. Keep this device dry. ․... -
Page 4: Unpacking And Inspection
Make sure there are no flammable materials close to the machine while operating. ․ Only use Antari fluid. Other fluid may lead to heater clog and malfunction. ․ If the machine fails to work, unplug the machine and stop operation immediately. -
Page 5: Product Dimensions
Product Dimensions 238 mm 293 mm 108 mm Product Overview ON / OFF Switch Control Fog Output Nozzle Dip Switch Wire Remote Socket Wireless Receiver Socket Output Level Adjustment Knob Main Power Switch XLR 3-Pin DMX Connector Lock lever Charger Input... - Page 6 Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm of open space around the machine. Step 2: Fill the fluid tank with Antari FLM-05W fluid. Step 3: Please fully charge the battery upon receipt of the machine and before and after each operation.
- Page 7 Plug in the charger Red indicates charging Green indicates charging complete Always connect the machine to a protected circuit and ensure it is properly grounded to avoid risk of electrocution. Step 4: Connect the battery base or power base to the machine. Turn on the machine to start operation.
-
Page 8: Operation
Align and insert head unit to base Step 5: To start making fog, locate the rotary knob on the back for output level adjustment, and press the button to start making fog, release to stop. Step 6: To turn off the machine, disconnect the machine (head-unit) from the battery base or power base. - Page 9 Dip Switch 12 Function On/Off Mode Continuous Mode Rotary Knob Function SMOKE Turn fog on/off, adjust output volume from 0~100% DMX Connector Pin Assignment The machine provides 3-pin XLR connectors for DMX connection. The diagram below indicates pin assignment information. Function Ground Data-...
- Page 10 0~100%. WTR-20 Wireless Operation (Optional) Wireless remote control system WTR-20 consists of a transmitter equipped with four buttons to activate, deactivate, increase and decrease fog output and an onboard receiver attached to the rear panel of FT-20X fog machine.
- Page 11 W-2 Wireless Transmitter Press [A] button to emit fog. Press [B] button to stop. Press [C] button to increase output volume. Press [D] button to decrease output volume. In a an unobstructed open space the effective distance is 50 meters, usage depending on obstacle level has an effective distance is 10-25 meters.
-
Page 12: Service And Maintenance
Replace with the same type and specification of battery which is 27A 12V Fluid Only use Antari FLM-05P water-based liquid for the FT-20X Fire Training Fog Machine. The machine is tested and calibrated with this liquid to get the best output performance. Warranty will be voided if any other type of liquid is used. - Page 13 Producing fog Slow flash Producing fog via DMX Alternate quick and slow flash Low battery Quick flash Machine error Fast flash Maintenance of Rechargeable lead-acid Battery To give the rechargeable battery long lifespan and best performance, please follow below instructions: ...
-
Page 14: Technical Specifications
1 second (approx.) - Fluid consumption 16 ml/min - Fluid tank capacity 0.4 Liter (0.11gallon) - Compatible fluid Antari FLM-05P Fog Fluid - Ambient temp. range 0 °C - 40 °C (32 °F-104 °F) - Control DMX512, Manual, Wireless (Optional)
