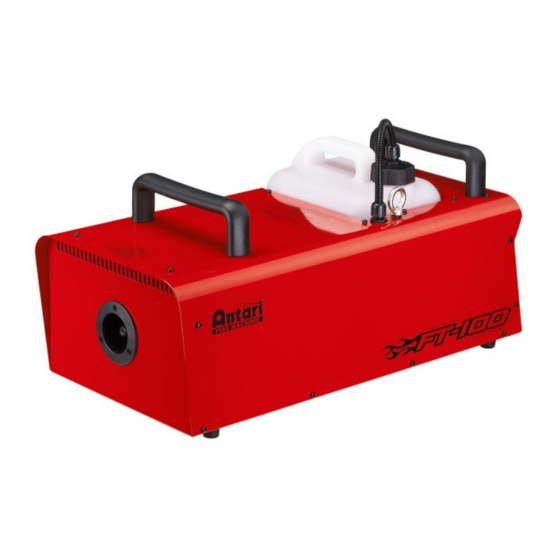

FT-100 Fire Training
Fog Machine User Manual
English
Français
Deutsch
•
•
•
㆗文
! "#"$%&'()*+%,+-.(+'-%)'/%01123(4%,(/5%
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Antari FT-100

Summary of Contents for Antari FT-100

  • Page 1 FT-100 Fire Training Fog Machine User Manual English Français Deutsch • • • ㆗文 ! "#"$%&'()*+%,+-.(+'-%)'/%01123(4%,(/5%...

  • Page 3: Safety Information

    AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, immediately unplug the machine and contact your local Antari dealer for advice. No user serviceable and modifiable parts inside. Never try to repair this product, an ․...

  • Page 4: Unpacking And Inspection

    Contact your local Antari dealer for advice. Before transporting the machine, make sure the fluid tank is completely drained. ․ Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it securely. ․ In case of eye contact or if fluid is swallowed, immediately look for medical advice.

  • Page 5: Product Overview

    Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm of open space around the machine. Step 2: Fill the fluid tank with Antari approved fluid. Step 3: Connect the machine to a suitably rated power supply. To determine the power requirement for the machine refer to the label on the back of the machine.

  • Page 6: Operation

    Operation Control Panel Operation The machine can be operated with the onboard digital control interface. Operation - Timer Mode Rotary knob Action Description Left Press once Activate timer mode Right Press second time Deactivate timer mode Right Rotate Adjust output volume Operation –...
  • Page 7 Control Menu Interval Set Set interval time from 5 to 200 seconds XXX S Duration Set Set duration time from 1 to 200 seconds XXX S Timer Output Set output volume from 1 to 100% XXX % Volume Output Set output volume from 1 to 100% XXX % DMX512 Set DMX address from 1 to 512...
  • Page 8 Wireless remote control system W-2 consists of a transmitter equipped with four buttons to activate, deactivate, increase and decrease fog output and an onboard receiver attached to the rear panel of FT-100 fog machine. W-2 Wireless Transmitter Press [A] button to emit fog. Press [B] button to stop. Press [C] button to increase output volume.
  • Page 9 Registering a transmitter Transmitters can be paired or deleted from the receiver. Each receiver can pair up to 5 transmitters. Follow the steps below to pair or delete a transmitter from a receiver. Step 1: Press and hold the left rotary knob for 3 seconds to enter setting menu. Step 2: Rotate the rotary knob to find the “Wireless Detect”...

  • Page 10: Service And Maintenance

    5 – 255 Output 1-100% Fluid Only use Antari FLP water-based liquid for the FT-100 Fire Training Fog Machine. The machine is tested and calibrated with this liquid to get the best output performance. Warranty will be voided if any other type of liquid is used, improper use of liquid may lead to machine failure and malfunction.

  • Page 11: Technical Specifications

    8.5 minutes (approx.) - Fluid consumption 100 ml/min - Fluid tank capacity 6l (1.59gal) - Compatible fluid Antari FLP Fire Training Fog Fluid - Ambient temp. range 0 °C - 40 °C (32 °F-104 °F) - Output 20,000 ft /min (566 m...
