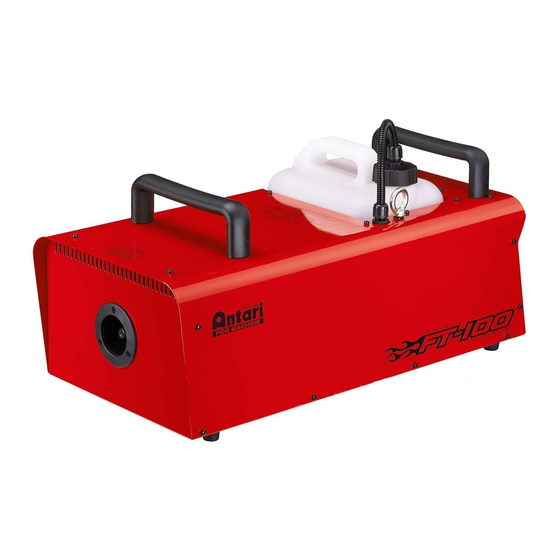

FT-100 Fire Training
Fog Machine User Manual
English
© 2015 Antari Lighting and Effects Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT-100 Fire Training and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Antari FT-100 Fire Training

Summary of Contents for Antari FT-100 Fire Training

  • Page 1 FT-100 Fire Training Fog Machine User Manual English © 2015 Antari Lighting and Effects Ltd.

  • Page 2: Safety Information

    Make sure there are no flammable materials close to the machine while operating. ․ Only use Antari fluid. Other fluid may lead to heater clog and malfunction. ․ If the machine fails to work, unplug the machine and stop operation immediately.

  • Page 3: Unpacking And Inspection

    Smoke fluid may present health risks if swallowed. Do not drink smoke fluid. Store it ․ securely. In case of eye contact or if fluid is swallowed immediately look for medical advice. Unpacking and Inspection Immediately upon receiving the machine, carefully unpack the carton, check all content to ensure that all parts are present and have been received in good condition.

  • Page 4: Operation

    Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 cm open space around the machine. Step 2: Fill the fluid tank with Antari approved fluid. Step 3: Connect the machine to suitable rated power supply. To determine the power requirement for the machine refer to the label on the back of the machine.
  • Page 5 Operation - Timer Mode Rotary knob Action Description Left Press once Activate timer mode Right Press second time Deactivate timer mode Right Rotate Adjust output volume Operation – Volume Mode Rotary knob Action Description Right Press once Activate volume mode Right Press second time Deactivate volume mode...
  • Page 6 Control Menu Interval Set Set interval time from 5 to 200 seconds XXX S Duration Set Set duration time from 1 to 200 seconds XXX S Timer Output Set output volume from 1 to 100% XXX % Volume Output Set output volume from 1 to 100% XXX % DMX512 Set DMX address from 1 to 512...
  • Page 7 Pair or un-pair wireless remote Wireless Detect Pair Turn ON or OFF nonstop burst function. Once turn on machine Nonstop Burst can produce output continously without reheat Wireless Operation Wireless remote control system W-2 consists of a transmitter equipped with four buttons to activate, deactivate, increase and decrease fog output and an onboard receiver attached to the rear panel of FT-100 fog machine.
  • Page 8 Registering transmitter Transmitter can be pair or deleted from the receiver. Each receiver can pair up to 5 transmitters. Follow below steps to pair or delete transmitter from receiver. Step 1: Press and hold left rotary knob for 3 seconds to enter setting menu Step 2: Rotate the rotary knob to find “Wireless Detect”...
  • Page 9 Fluid Only use Antari FLP water-based liquid for the FT-100 Fire Training Fog Machine. The machine is tested and calibrated with this liquid to get the best output performance. Warranty will be void if any other type of liquid is used, improper use of liquid may lead to machine failure and malfunction.
  • Page 10 Max. operating time 1 min at 100% output, 60 mins at continuous output Fluid tank capacity Fluid consumption 100 ml/min Compatible fluid Antari FLP water-based fluid Control option DMX 512, Manual, Timer, Wireless remote DMX channels 1 channels Power connection...
  • Page 12 C08FT1000...
