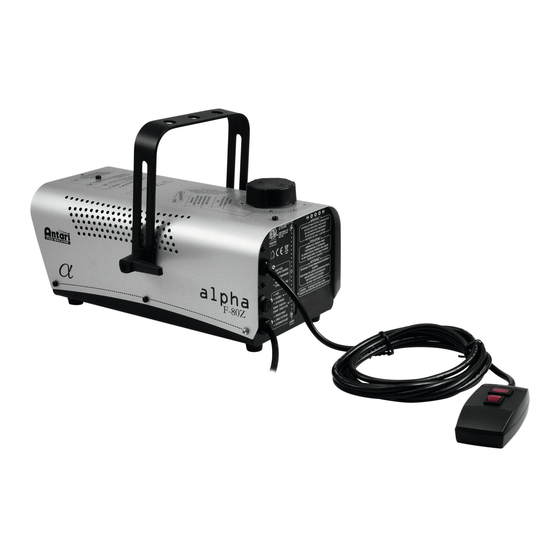

Antari F-80Z Operation And Maintenance Instructions

Thank you for choosing the F-80Z. You now own a rugged and powerful state-of-the-
art machine. Prior to use, we suggest that you carefully read all of the instructions.
By following the suggestions found in this user manual, you can look forward to
exceptional performance from your Antari Fog Machine for years to come.
Please follow these operation, safety and maintenance instructions to ensure a
long and safe life for your fog machine.

CAUTIONS

Pay attention to all warning labels and instructions printed on the exterior of
your Antari Fog Machine
Danger of electric shock
Keep this device dry.
For inside use only. Not designed for outside use.
For the 110V models, use 3-prong grounded electrical outlet only. Prior to use
take care to determine that the unit is installed at the rated voltage.
Always unplug your Antari Fog Machine before filling its tank.
Keep fog machine upright.
Turn off or unplug when not in use.
This machine is not water- or splash-proof. If moisture, water, or fog liquid gets
inside the housing, immediately unplug the unit and contact a service technician
or your Antari dealer before using it again.
No user serviceable parts inside. Refer to your Antari dealer or other qualified
service personnel.
Danger of burns
For adult use only. Fog machine must be installed out of the reach of children.
Never leave the unit running unattended. Leave the grid guarding the nozzle in
place if the machine is to be used in the presence of children.
Keep nozzle at least 50 cm (20 in.) away from contact with anything while in
operation.
The fog vapour at point of release is under pressure and is extremely hot .
Never aim the output nozzle directly at people.

SPECIFICATIONS

Power: AC 120V/60Hz 230V/50Hz
Heater: 700W
Fuse: 125V/7A 250V/3.15A
Warm-up time: 4 minutes
Output: 2500 cuft/min
Tank capacity: 0.7 litre
Dimensions: 333 x 160 x 130 mm
Weight: 4.5 kg
Fog machine output is very hot. Avoid coming within 50 cm of the output nozzle
during operation.
Locate the fog machine in a well-ventilated area. Never cover the unit's vents.
In order to guarantee adequate ventilation, allow a free air space of at least 20
cm around the sides and top of the unit.
Never aim the output nozzle at open flames.
The output nozzle becomes very hot during operation (300 degrees C). Keep
flammable materials at least 50 cm away from the nozzle.
Always allow your Antari Fog Machine to cool down before attempting to clean or
service it.
Danger of explosion
Never add flammable liquids of any kind (oil, gas, perfume) to the fog liquid.
Use only the high-quality, water-based fog liquid that your Antari dealer
recommends. Other fog liquids may cause poor effect fog, clogging and "spitting"
of unevaporated liquid.
Always make sure there is sufficient liquid in the fog liquid tank. Operating this
unit without liquid will cause damage to the pump and the heater.
If your Antari Fog Machine fails to work properly, discontinue use immediately.
Drain all fog liquid from the tank, pack the unit securely (preferably in the original
packing material), and return it to your Antari dealer for service.
Always drain tank before shipping or otherwise transporting this unit.
Never drink fog liquid. If it is ingested, call a doctor immediately. If fog liquid
comes in contact with skin or eyes, rinse thoroughly with water.
Unpacking & Inspection
Open the shipping carton and check that all equipment necessary to operate the
system has arrived intact. In addition to the F-80Z, you should receive the following
items:
1. FCW-80Z wired remote
2. Hanging bracket
3. 800 ml (1 quart) Liquid tank.
Before beginning initial setup of your Antari Fog Machine, make sure that there is
no evident damage caused by transportation.
In the event that the unit's housing or cable is damaged, do not plug it in and do
not attempt to use it until after contacting your Antari dealer for assistance.

Setup

Remove all packing materials from the fog machine. Check that all foam and
plastic padding is removed, especially in the nozzle area.
Fill with Antari Fog Liquid or other high-quality water-based fog fluid. Any other
types of fluid can damage the unit. When filled, place cap back on liquid tank.
Firmly attach the remote control cable to the proper input on the rear of the
machine.
