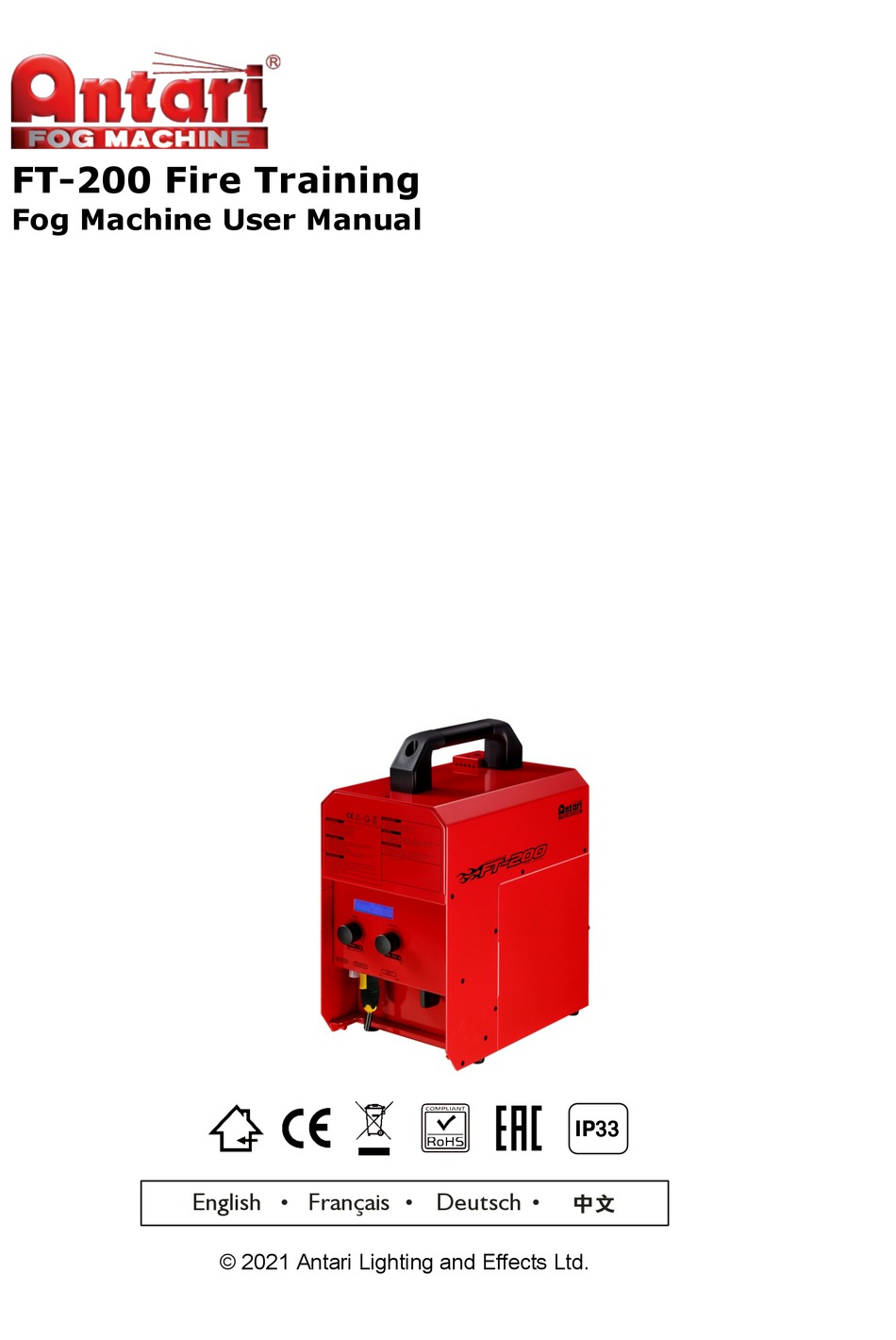

- Page 1 FT-200 Fire Training Fog Machine User Manual IP33 English Français Deutsch • • • ㆗文 ! "#"$%&'()*+%,+-.(+'-%)'/%01123(4%,(/5...
-
Page 2: Safety Information
Make sure there are no flammable materials close to the machine while operating. ․ Only use Antari fluid. Other fluid may lead to a heater clog or malfunction. ․ If the machine fails to work, unplug the machine and stop operation immediately. -
Page 3: Unpacking And Inspection
Contact your local Antari dealer for advice. Before transporting the machine, make sure the fluid tank is completely drained. ․ Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it securely. ․ In case of eye contact or if fluid is swallowed, immediately look for medical advice. -

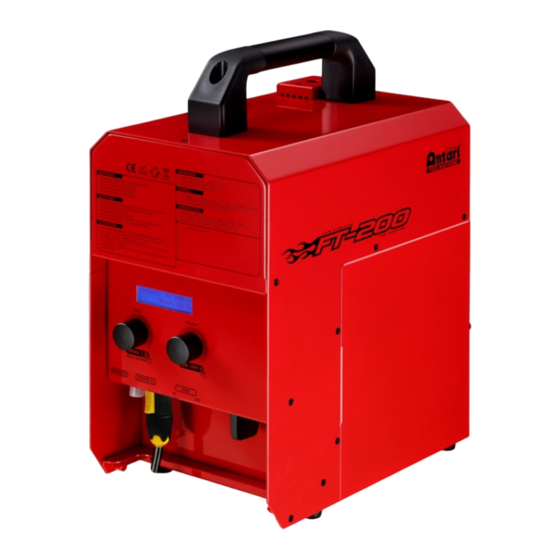

Page 4: Product Overview
Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm of open space around the machine. Step 2: Fill the fluid tank with Antari approved fluid. Step 3: Connect the machine to suitably rated power supply. To determine the power... -
Page 5: Operation
Always connect the machine to a protected circuit and ensure it is properly grounded to avoid risk of electrocution. Step 4: Turn on the machine and allow it to heat up. Heat up takes approximately 7.5 mintues. Once the machine has reached operating temperature, the LCD display will show “Ready To Fog”. - Page 6 Operation – Volume Mode Rotary knob Action Description Right Press once Activate volume mode Right Press second time Deactivate volume mode Right Rotate Adjust output volume Setting Rotary knob Action Description Left Press and hold for 3 Enter setting menu seconds Left Rotate...
- Page 7 Wireless remote control system W-2 consists of a transmitter equipped with four buttons to activate, deactivate, increase and decrease fog output and an onboard receiver attached to the rear panel of FT-200 fog machine. W-2 Wireless Transmitter Press [A] button to emit fog. Press [B] button to stop. Press [C] button to increase output volume.
- Page 8 Wireless Receiver Registering a transmitter Transmitters can be paired or deleted from the receiver. Each receiver can pair up to 5 transmitters. Follow the steps below to pair or delete a transmitter from the receiver. Step 1: Press and hold the left rotary knob for 3 seconds to enter setting menu. Step 2: Rotate the rotary knob to find the “Wireless Detect”...
-
Page 9: Service And Maintenance
5 – 255 Output 1-100% Fluid Only use Antari FLP water-based liquid for the FT-200 Fire Training Fog Machine. The machine is tested and calibrated with this liquid to get the best output performance. Warranty will be voided if any other type of liquid is used, improper use of liquid may lead to machine failure or malfunction. -
Page 10: Technical Specifications
7.5 minutes (approx.) - Fluid consumption 270 ml/min - Fluid tank capacity 2.4l (0.63gal) - Compatible fluid Antari FLP Fire Training Fog Fluid - Ambient temp. range 0 °C - 40 °C (32 °F-104 °F) - Output 8 meters height - Control...
