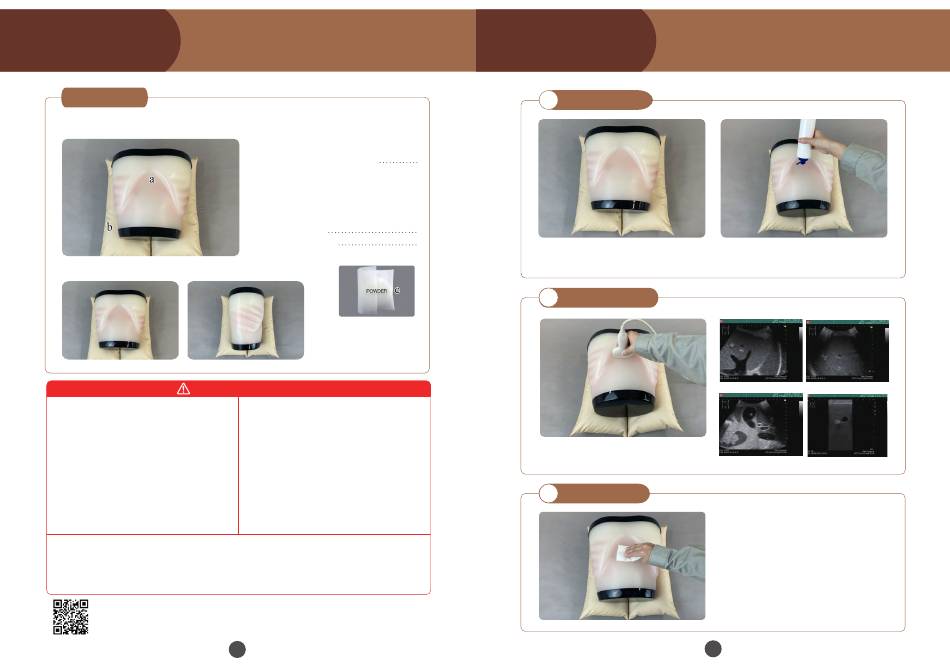

Kyoto Kagaku US-22 Instruction Manual

Please read
General information
Set includes
Before your first use, please ensure that you have all components listed below.
The setting of supine position and the lateral position is possible using
a positioning pillow.
DOs and DON'T s
DO s
Handle with care
The materials for the phantom are special
composition of soft resin. Please handle with care
at all times.
Cleaning and care
Please clean the phantom completely every time
after you finish the training.
The remaining ultrasound gel may deteriorate
the phantom.
Keep the training set at room temperature,
away from heat, moisture and direct sunlight.
Please note: The color of the phantom may change over time, though, please be assured that this
is not deterioration of the material and the ultrasonic features of the phantom stay unaffected.
This phantom has a thin layer of coating for protective purposes which may cause minor
wrinkling. However, it has no effect on the ultrasound image.
Please watch the following movie about handling precautions of ultrasound phantoms.
https://www.youtube.com/watch?v=D3VcaUYcPAY
１
● Set includes

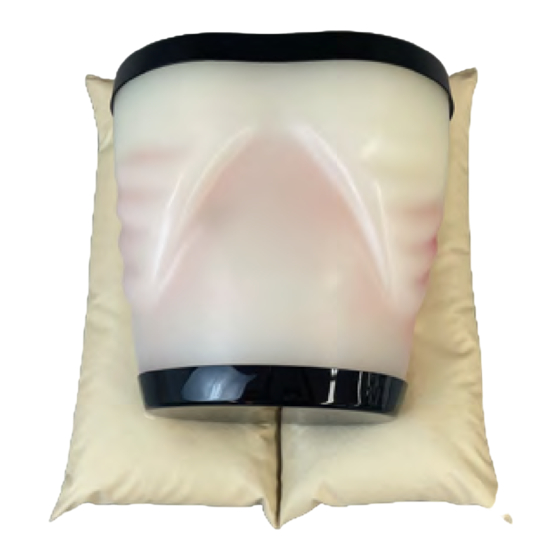

a. Dual modality abdominal phantom
1
the liver (segmental anatomy, portal and hepatic venous systems,
hepatic circumflex and ductus venosus),
biliary tract (gallbladder, cystic duct, intrahepatic and extrahepatic bile
ducts), pancreas (pancreatic duct), spleen, kidneys,
detailed vascular structures (aorta, vena cava, celiac artery and its
branches, portal vein and its branches, superior mesenteric vessels,
renal vessels, etc)
b. Positioning pillow 1
c. Talcum Powder
1
Instruction Manual (this leaflet)
DON'Ts
Never wipe the phantom with thinner or
organic solvent.
Don't mark on the phantom with pen or leave
printed materials contacted on their surface.
Ink marks on the surface will be irremovable.
Preparation
Simulated targets/ Storage
Training
１ １ Before training
1. Set the phantom on the positioning pillows.
２
Training session
1.The phantom can be scanned with actual
ultrasound devices.
* The map of simulated targets is on the backside of
this manual.
３
After training
2. Apply ultrasound gel on the phantom body.
Examples of ultrasound images
Duplication lesion Low echo target
Gallstone High and non echo targets
Wipe the remaining gel completely with wet cloth.
If remaining gel gets dried up on the body, it will be
irremovable.
２
