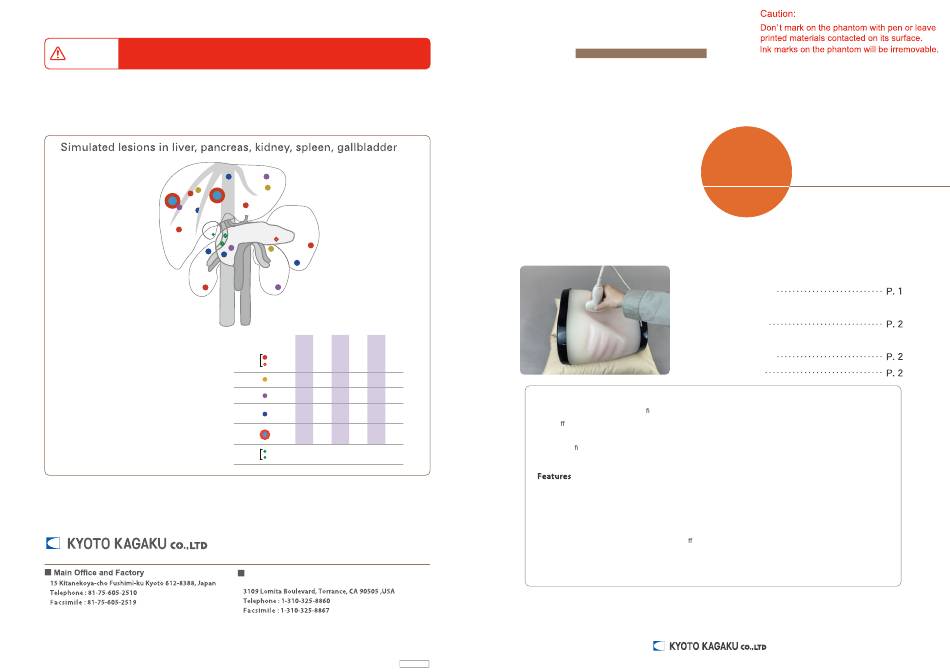

Kyoto Kagaku US-22 Instruction Manual

Don't mark on the phantom with pen or leave printed materials contacted on its surface.
Caution
Ink marks on the phantom will be irremovable.
Anatomy
lung / kidneys (right and left) / gallbladder /
aorta/ liver (portal vein, bile duct, hepatic
artery, hepatic vein) / spleen / pancreas
(pancreatic duct) / inferior aorta / spine / ribs
Abnormal lesions
liver / gallbladder / pancreas / spleen / kidney
・Liver lesions (cysts, solids)
・Gallbladder and bile duct stones
・Pancreatic tumors
・Spleen lesions
・Left and right kidney lesions
The contents of this manual are subject to change without prior notice.
No part of this instruction manual may be reproduced or transmitted in any form without permission from the manufacturer.
Please contact manufacturer for extra copies of this manual which may contain important updates and revisions.
Please contact manufacturer with any discrepancies, typos, or mistakes in this manual or product feedback.
Your cooperation is greatly appreciated.
URL:http://www.kyotokagaku.com e-mail:rw-kyoto@kyotokagaku.co.jp
【Embedded Targets】
Liver Gallbladder Pancreas Spleen Kidney(R) Kidney(L)
HU70 HU20 HU30 HU50 HU30 HU30
anechoic
Φ10mm 3 1 1
HU50 HU10 HU10
Φ3mm 1
HU10
hypoechoic
Φ10mm 2 1
HU50 HU10
medium echo
Φ10mm 2 1 1
HU90 HU10 HU10
2 1 1 1
hyperechoic
Φ10mm
HU90 HU10 HU10 HU10
double echo lesion
inside: hyperechoic
Φ20mm 2
outside: anechoic
HU90
gallstones Φ5mm 1
Φ3mm HU170 2
HU170
KyotoKagaku America Inc.
USA,Canada,and South America
2023.05
US-22
Dual Modality Human
Abdomen Phantom
Instruction
Manual
Contents
Please read before training
●
General information
Preparation
●
1. Before training
Training
●
2. Training session
3. After training
●
This phantom is a comprehensive diagnostic imaging training phantom that uses fusion imaging.
This phantom is designed to con rm lesions noted on CT as well as ultrasound.
※For e ective training, use ultrasound devices that is under appropriate control.
This phantom is designed for a step-by-step learning process from the basic of ultrasound screening to
organ-speci c screening procedures and screening for intra-organ lesions.
Please do NOT use this phantom outside of its purposes.
●
The new material is compatible with CT and ultrasound.
・
・ The phantom includes nearly full-scale and accurate lungs, aorta, gallbladder, inferior vena cava, liver (portal
vein, bile duct, hepatic artery, hepatic vein), kidneys (left and right), pancreas (pancreatic duct), spinal column,
spleen, and ribs.
Cysts, stones, tumors and other lesions with di erent sizes, echo, CT values are also included, which allows
simultaneous anatomic understanding and training in simple screening.
※ Biopsy and other punctures cannot be performed.
