Diode Dynamics DD7059 Instruction Manual

Measure lamp height to center
Please contact Diode Dynamics should you have any questions about the installation
or wiring process, at 314-205-3033 (10a-5p CST) or contact@diodedynamics.com.
NEED MORE HELP?
Scan the QR code to link to our YouTube Channel!
We continuously bring in vehicles to our testing garage in order to
create step-by-step videos to walk you through the installation process
on your specific vehicle. Scan the QR code to see all our installation
videos. Be sure to subscribe to our channel to stay up-to-date on the
newest products and videos from Diode Dynamics!
This installation guide is for the following SKUs:
SS3 Sport Type MS Kit White SAE Driving (DD6576 W/O BL, DD7059 ABL)
3 YEAR
SS3 Sport Type MS Kit White SAE Fog (DD6577 W/O BL, DD7060 ABL)
SS3 Sport Type MS Kit Yellow SAE Fog (DD6578 W/O BL, DD7061 ABL)
WARRANTY
SS3 Pro Type MS Kit White SAE Driving (DD6579 W/O BL, DD7062 ABL)
8
100% SATISFACTION
GUARANTEE
year
w arranty
PAGE 4
PP0081
PP0132F
13. Aim your SS3 pods on each side, so that
the top of the beam pattern is on the
cutoff line mark.
14. Tighten the 5/32" allen bolts back down.
Do not overtighten or use power tools to torque
them down.
15. Reinstall the fog light covers and splash
guard to complete the installation.
Four (4) inches
25 feet
SS3 Pro Type MS Kit White SAE Fog (DD6580 W/O BL, DD7063 ABL)
SS3 Pro Type MS Kit Yellow SAE Fog (DD6581 W/O BL, DD7064 ABL)
SS3 Max Type MS Kit White SAE Fog (DD6706 W/O BL, DD7065 ABL)
SS3 Max Type MS Kit Yellow SAE Fog (DD6707 W/O BL, DD7066 ABL)
Level
Top of
Beam

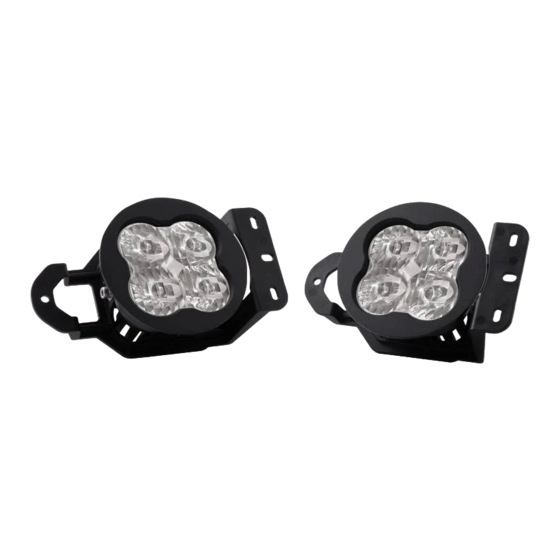

Thank you for your purchase of our new SS3 Type MS Foglight Kit. CAD-designed to use existing
mounting points, this kit is compatible with the Jeep JL Wrangler and JT Gladiator Sport. Basic
installation instructions are included below. Please contact us if you have any questions.
Left and Right Sides
1. Install the supplied nuts into the pod housing with the
nylon facing inward. Attach the bracket to the pod using
the supplied screws and washers. Make sure the bracket is
in the correct orientation. See diagrams above and to the
right. Ensure that the screws are tightened such that the
pod retains its position, but can pivot with force for aiming.
SS
Type MS Foglight Kit
Factory
Hardware
See inside for further instructions.
(314) 205-3033 WWW.DIODEDYNAMICS.COM
3" LED Pod
3
TOP
BOTTOM
PAGE 1
