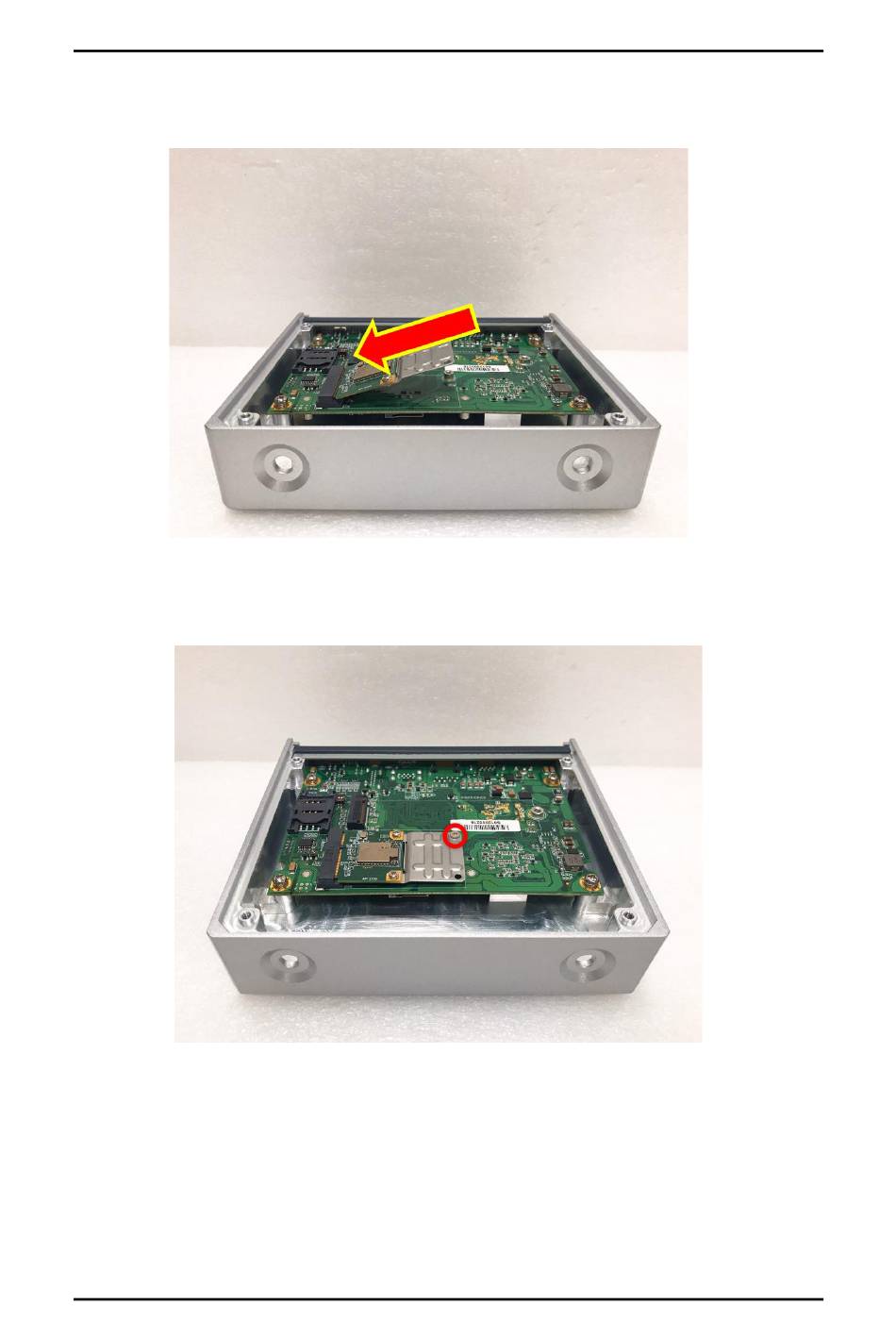

Step 4 Holding the PCI Express mini card at a 45 degree angle up from
horizontal, slowly insert the golden fingers into the PCI Express slot
until it is fully inserted in.
Step 5 Press it down gently, but firmly, and then secure the PCI Express mini
card to the carrier by tightening up the one M2 Phillips screw to the
marked position.
Hardware Installation
AIE100-ONA Series User's Manual
13
