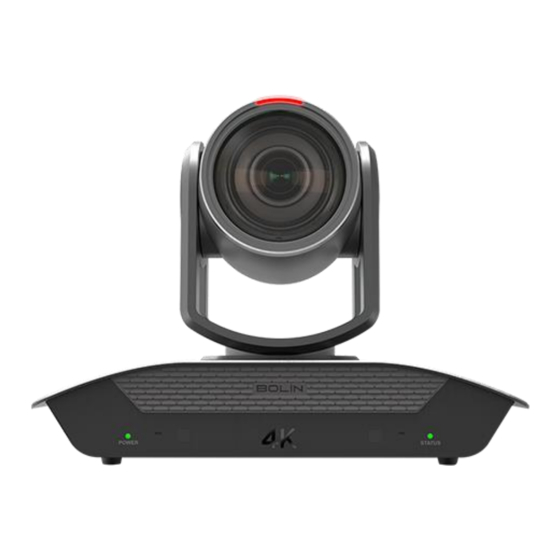

- Page 1 D Series DANTE AV PTZ Camera USER MANUAL Part One: Camera Use VERSION: D-09232021 DANTE AV CAMERA D220 © 2021 Bolin Technology...
-
Page 2: Table Of Contents
Contents IMPORTANT INFORMATION ..............................5 WHAT’S IN THE BOX ................................. 7 OVERVIEW ....................................8 FEATURES ..........................ERROR! BOOKMARK NOT DEFINED. CAMERA DIAGRAMS ................................9 ................................10 EMOTE ONTROLLER CAMERA INSTALLATION ................................. 11 ..............................12 EILING OUNT NSTALLATION ..............................13 OUNT NSTALLATION SYSTEM CONFIGURATION ............................... - Page 3 MENU CONFIGURATION ................................. 41 TROUBLESHOOTING ................................43 WARRANTY .................................... 44 SUPPORT CONTACT INFO ................................ 45 DIMENSIONS ..................................46...
- Page 4 Before operating the unit, please read this manual thoroughly and retain it for future reference. Copyright Copyright 2015-2021 Bolin Technology all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company.
-
Page 5: Important Information
IMPORTANT INFORMATION Legal Notice Attention: To ensure account security, please change the password after your first login. You are recommended to set a strong password (no less than eight characters). Password login does not apply to some models that do not need password login. - Page 6 The contents of this document are subject to change without prior notice. Any updates and content changes will be added to the subsequent new manual version. If there are any concerns, please contact Bolin Support Team at www.bolintechnology.com Website Reference and other information For related product information please visit Bolin Technology website https://bolintechnology.com/...
-
Page 7: What's In The Box
WHAT’S IN THE BOX Accessories (Optional) -
Page 8: Overview
Overview This user guide is suitable for the following models: D220 Features • Dante AV powered by Dante AV Module, support Unicast or Multicast Dante AV video streaming over Standard 1Gbps Ethernet. • 1/2.8 Inch CMOS sensor, Effective pixel number: 2.08 Megapixels. •... -
Page 9: Camera Diagrams
Camera Diagrams 1. 12V DC power port Connect the supplied DC power adaptor and cord. 2. Video format selector (For video format selection) 3. DIP switch 4. IR remote ID selector 5. IR receivers 6. MIC/LINE input ø 3.5 mm stereo mini jack, input impedance: high impedance During MIC input, supported mic: stereo mic (plug-in power) supply voltage: 2.5V ±... -
Page 10: Remote Controller
Remote Controller 1. MENU, on screen menu display ON/OFF 2. Camera IR ID Selector for Remote Control. 3. AI Features, available when AI button (13#) is pressed. (Set for fan speed adjustment) 4. Positioning Function and Number Buttons • Preset Position Calling and Setting 5. -
Page 11: Camera Installation
Camera Installation This device is designed for indoor use only. It is not designed to be used outdoors. Do not operate the device where it may meet constant heavy water. Please avoid installing the unit in a location commonly exposed to sunlight for extended periods of time. Do not install the unit near temperature adjustment device, such as a heating or cooling unit. -
Page 12: Ceiling Mount Installation
Ceiling Mount Installation Need to use Ceiling Mount bracket and M4*6PW/M3*6PW screws for this installation. Ceiling mount is sold separately. Please following the below diagrams for ceiling mount installation. Required accessories and components: Ceiling mount installation:... -
Page 13: Wall Mount Installation
Wall Mount Installation Need to use Wall Mount bracket and M4*6PW screws for this installation. Wall mount is sold separately. Please following the below diagrams for wall mount installation. Required accessories and components: Wall mount pendant installation: Wall mount standard installation... -
Page 14: System Configuration
System Configuration Connection The camera’s pan, tilt, zoom can be controlled with a keyboard controller by connecting a control cable (crossover cable, RS232, RS-422/485). The Dante AV decoder can be used to decode the Dante AV camera view and output it to a monitor via HDMI. -
Page 15: Obtain Video Signal
Obtain Video Signal The camera can simultaneously have HDMI and Dante AV IP video output. HDMI Video signal 1. Connect the camera to a UHD Monitor/TV using HDMI cable. 2. Turn on the camera, video will display on the monitor after initialization. 3. -
Page 16: Camera Control Methods And System Configurations
Camera Control Methods and System Configurations There are multiple ways of controlling the camera and various system configuration capabilities by using optional products. This section describes controlling methods with typical system examples and the required components of each. 1. Use the Infrared Remote Controller 2. - Page 17 8. You can make RS232 connection cable if you have the following applications: 9. Use the included RJ45 to RS232 8 pin Mini Din adaptor to make RS232 connection for your control device. 10. Use the included RJ45 to RS422/232 Phoenix terminal contact adaptor to make RS232 connection for your control device.
-
Page 18: Use Rs-422(Visca)
Use RS-422(VISCA) You can use RS-422/485 port to connect optional controllers, such as joystick keyboard controller or PC control station, to operate the camera. To perform pan/tilt and zoom operations, use the joystick of the keyboard controller. Preset operation can be done using the control buttons on the keyboard as well. An application software that supports this camera is needed if using a PC station. - Page 19 VISCA (Non-Sony) Keyboard RS422 Connection 11. Use included RJ45 to RS422 Phoenix connecter adaptor to make RS422 connection for your control device. 12. Or you can use CAT5/6 T-568B Standard Ethernet cable direct connect between the camera and the controller to make RS422 connection by following the pin definition below:...
-
Page 20: Pelco P/D Keyboard Rs485 Connection
13. How to make RS422 Daisy Chain multiple camera connection with RS422 standard serial port controller: PELCO P/D Keyboard RS485 Connection NOTE: Use RS422 ports for RS485 connection. Only use TX+ and TX- for RS485 connection. • Set RS422 control method on Bottom Dip Switch. •... - Page 21 • Use included RJ45 to RS422 Phoenix connecter adaptor to make RS485 connection for your control device. • Or you can use CAT5/6 T-568B Standard Ethernet cable direct connect between the camera and the controller to make RS485 connection by following the pin definition below: •...
-
Page 22: Visca Over Ip Control
Note For RS-232 VISCA control, this unit supports daisy chain connection for using multiple cameras. For control details, refer to Operating Instructions of control keyboard/station software. • You need to match the communication speed (Baud Rate) between the camera and the joystick controller. -
Page 23: Tally Light Gpi I/O Connection
Tally Light GPI I/O connection The camera is equipped with a Tally lamp that quickly distinguishes when the camera is in use. It is an arc Tally lamp used for improving visibility and merge together with the circular design lens. To use camera Tally Light function, you need a video switcher and a keyboard (not included). - Page 24 2. GPI I/O Output mode -Tally signal is sent by Keyboard Controller a. Connect camera with keyboard by standard RS-422 control cable. b. Access to KEYBOARD SETTING > GPI I/O > Setting, and change it to Output mode, then Exit to home directly.
-
Page 25: Dip Switch Settings
DIP SWITCH SETTINGS The Dip switch is for setting the camera configuration for following items: 1. Camera ID Address for VISCA protocol 2. RS-232 / RS-422 control method selection 3. RS-232 / RS-422 baud rate selection Setting of the DIP Switches Turn off power to the camera before changing the DIP switch settings. - Page 26 Setting of the back panel Rotate DIP Switches The Rotate Dip Switch is for setting video format. Use small screwdriver to turn the switch, the arrow points to the Numbers or the Letters. Please refer to the chart below to identify which video resolution corresponds with each Numbers & Letters. Numbers &...
-
Page 27: Adjusting And Setting With Menus
Adjusting and Setting with Menus About On-Screen Menus Various settings on the camera, like shooting conditions and system setup, can be changed while observing menus being displayed on a connected visual output device. This section explains how to read the on-screen menus before starting menu operations. The menu parameters may vary according to the different product model. -
Page 28: Exposure Menu
EXPOSURE Menu The EXPOSURE menu is used to set the items related to exposure. MODE (Exposure Mode) EXPOSURE MENU: FULL AUTO FULL AUTO: Iris, Gain and Shutter Speed can MODE FULL AUTO →EXPOSURE be set automatically. WHITE BALANCE MANUAL: Adjust the GAIN, electronic shutter EX-COMP. -
Page 29: White Balance Menu
WHITE BALANCE Menu The WHITE BALANCE menu is used to select the white balance mode. MODE (white balance mode) Select the white balance mode from the following: WHITE BALANCE MENU AUTO: This mode computes the white balance WB MODE AUTO EXPOSURE value output using color information from the →WHITE BALANCE... -
Page 30: Pan Tilt Zoom Menu
FLIP: Image E-Flipper – Used when ceiling mounting or upright mounting. Set to OFF is upright mode, set to ON is for ceiling mount. MIRROR: You can have the image as seen in a mirror, with the right side as though it were the left. DE-FLICKER: You can turn it ON if the Video output format frame rate is difference from your country’s electricity Frequency. -
Page 31: System Menu
TILT DIR (TILT DIRECTION): Camera tilt up and down orientation setting, options: Normal/Invert TRACE MEMORY Trace Memory is a function used to record pan/tilt/zoom operations Trace Memory controlled by remote commander or a remote controller, which can be played back as required. Up to 100 pan/tilt/zoom commands can be TRACE NO PLAY TIMES ONCE... - Page 32 VISCA controller. DISPLAY INFO When this item is set to ON, the message of the camera configuration appears for about 10 seconds on the screen, after the camera is powered on or rebooted PRESET SETTINGS Used to set functions related to presets, including Preset Memory and Motionless Preset •...
-
Page 33: Status Menu
The video formats that you can select from are: • 1080P: 60/59.94/50/30/29.97/25 • 720P: 60/59.94/50/30/25 SV: MCU Software Version Number that is currently running on the camera. You may need this information for technical support. STATUS MENU Status menu will display the basic information of this camera, as well as video parameters. It is convenience created for users to quickly get the active status of the camera’s settings. -
Page 34: Firmware Upgrade
NOTE: The firmware upgrade process is intended to be performed under the supervision of a BOLIN- Authorized repair technician. For assistance with this, please contact your authorized BOLIN Technology dealer, installer, or integrator. BOLIN Technology Technical Support can also be reached for assistance with this process... -
Page 35: Operation Using The Infrared Remote Controller
Operation Using the Infrared Remote Controller Pan/Tilt and Zoom Operation Panning and Tilting 1. Press the POWER switch. The camera will turn on and perform the pan/tilt reset operation automatically. 2. Press the arrow buttons to pan or tilt the camera. While checking the picture on the screen, press the desired arrow button. -
Page 36: Operating Multiple Cameras With Infrared Remote Controller
If the camera is moved forcibly, or a finger or other object interferes with camera movement, the camera may fail to memorize the pan/tilt position. Press the PAN-TILT RESET button to delete the pan/tilt position. Zooming Button (Slow Zoom) [T] - Zoom-IN and [W] - Zoom-OUT slowly Button (Fast Zoom) [T] - Zoom-IN and [W] - Zoom-OUT quickly Operating Multiple Cameras with Infrared Remote Controller 1. -
Page 37: Storing The Camera Settings In Memory - The Presetting Feature
Storing the Camera Settings in Memory — the Presetting Feature Memory (Preset) Using the preset function, 9 sets of camera shooting conditions can be stored and recalled. 9 sets of camera shooting conditions can be stored and recalled by using remote controller. Up to 128 presets via protocol programming. - Page 38 Adjusting the camera Adjusting the camera, including camera image parameter (Gain, Color, Contrast, White Balance (Red & Blue), Black Level), camera speed (Pan/Tilt speed, zoom speed and preset speed), as well as Freeze, Back Light and One Push White Balance. Gain-Adjust Gain Press Gain button, the Gain button light will on, then press “+”...
- Page 39 AI Feature Mode (Set to fan speed adjustment) Within Bolin Dante AV product line, this AI feature is set to adjust the speed of the fan that is built inside of the camera or decoder for heat dissipation. AI Button: Press AI button, the button is illuminated in blue color, the IR controller will switch to fan speed adjustment mode.
- Page 40 Changing Video Resolutions • Press and hold Fn button, then press the Resolution button to populate a menu where you can switch resolutions • Use the arrow keys to navigate • Press Home to select • Screen will show ‘CHANGING…” •...
-
Page 41: Menu Configuration
Menu Configuration The menus of camera are configured as described below. OSD Menu Configuration... -
Page 43: Troubleshooting
Troubleshooting Camera will not power on Use the supplied power adaptor or a proper rating PoE device. Verify wirings are properly connected and plugs are securely in place. If the camera is attached to an outlet with a power switch, please make sure the switch is on. Camera restarts by itself The camera may not be getting sufficient power. -
Page 44: Warranty
Warranty Disclaimer Bolin Technology in no event shall be liable to any party or any person for cases including but not limited to the ones below, except for reasonable replacement or maintenance of Bolin products. -
Page 45: Support Contact Info
Support Contact Info Your experience is important to us. If you need assistance, our support team can be reached by any of the methods below: • Go to https://bolintechnology.com/company/#contact-us and select customer support • Go to https://bolintechnology.com/support/ and use the Raise a Support Ticket button •... -
Page 46: Dimensions
Dimensions Unit: mm... - Page 47 2082 TECHNOLOGY LLC BOLIN TECHNOLOGY...
