evertz 2430GDAC-MWP Instruction Manual

G-link d to a converter for mwp

Advertisement

Quick Links

© Copyright 2004, 2008
EVERTZ MICROSYSTEMS LTD.
5288 John Lucas Drive,
Burlington, Ontario,
Canada,
L7L 5Z9
Phone:
905-335-3700
Sales Fax:
905-335-3573
Service Fax:
905-335-0909
Internet:
Sales:
Tech Support: service@evertz.com
Web Page:
Version 1.1 June 2008
The material contained in this manual consists of information that is the property of Evertz Microsystems and is
intended solely for the use of purchasers of the 2430GDAC-MWP G-Link D to A Converter for Evertz 3000MWP
Media Wall Processors. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than
the operation of the Converter.
All rights reserved. No part of this publication may be reproduced without the express written permission of Evertz
Microsystems Ltd.
Copies of this guide can be ordered from your Evertz products dealer or from Evertz
Microsystems.
Model 2430GDAC-MWP
G-Link D to A Converter for MWP
Instruction Manual
sales@evertz.com
http://www.evertz.com

Advertisement

Table of Contents
loading

Summary of Contents for evertz 2430GDAC-MWP

  • Page 1 The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of purchasers of the 2430GDAC-MWP G-Link D to A Converter for Evertz 3000MWP Media Wall Processors. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than the operation of the Converter.
  • Page 2 WARNING Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s authority to operate the equipment. Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface cables...
  • Page 3 Jun 08 Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for the rights of third parties, which may be effected in any way by the use thereof. Any representations in this document concerning performance of Evertz products are for informational use only and are not warranties of future performance, either express or implied.
  • Page 4 2430GDAC-MWP G-Link D to A Converter for MWP This page left intentionally blank Revision 1.1...
  • Page 5: Table Of Contents

    2430GDAC-MWP G-Link D to A Converter for MWP TABLE OF CONTENTS OVERVIEW............................1 INSTALLATION..........................2 2.1. POWER ............................. 2 2.2. GLINK IN AND OUT ........................2 2.3. VIDEO OUT ..........................3 2.4. FIRMWARE UPGRADE PORT ....................3 2.5. CARE AND HANDLING OF OPTICAL FIBER................4 2.5.1.
  • Page 6 2430GDAC-MWP G-Link D to A Converter for MWP 6.2.2. Part 2 – Terminal Program Setup................... 9 6.2.3. Part 3 – Uploading the New Firmware ................. 10 6.2.4. Part 4 – Completing the Upgrade................. 10 Figures Figure 1-1: 2430GDAC-MWP Block Diagram..................... 1 Figure 2-1: 2430GDAC-MWP Module Connections ...................
  • Page 7: Overview

    2430GDAC-MWP G-Link D to A Converter for MWP OVERVIEW The 2430GDAC-MWP G-Link D to A Converter for MWP is a required component of Evertz MWP media wall display systems. G-Link video signals from an MWP system are received over coaxial cable or fiber optic cable, and are processed and converted into digital DVI and analog RGB video signals that can be displayed on media walls composed of several individual displays.
  • Page 8: Installation

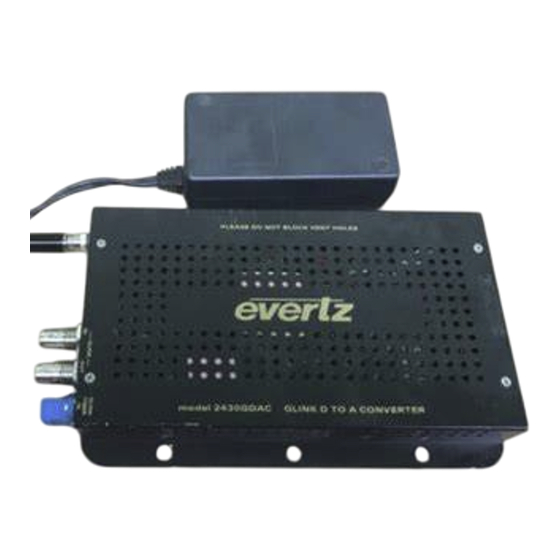

    2430GDAC-MWP G-Link D to A Converter for MWP INSTALLATION The 2430GDAC-MWP is a compact module that has two BNC connectors, one fiber optic connector, one DVI-I connector for video, and one DB-9 serial port connector for upgrades. Figure 2-1: 2430GDAC-MWP Module Connections 2.1.
  • Page 9: Video Out

    FIRMWARE UPGRADE PORT COM: Serial port connector for upgrading the 2430GDAC-MWP firmware. This is a female 9 pin D connector used for connecting to a standard computer serial port. Table 2-2 shows the pinout of the female DB-9 connector. See section 5 for information on upgrading the firmware in the 2430GDAC-MWP.
  • Page 10: Care And Handling Of Optical Fiber

    Never look directly into an optical fiber. Non-reversible damage to the eye can occur in a matter of milliseconds. The laser modules used in the Evertz 3000MWP and Evertz 3000MVP modules are Class I, with a maximum output power of 7mW, and a wavelength of 1270 to 1610nm.
  • Page 11: Specifications

    2430GDAC-MWP G-Link D to A Converter for MWP SPECIFICATIONS 3.1. COAXIAL G-LINK INPUT Connector: Equalization: Automatic up to 10m 3.2. FIBER G-LINK INPUT Connector: SC/PC, ST/PC, or FC/PC female housing Maximum Input Power: -3dBm Wavelength: 1270 nm to 1610nm Optical Sensitivity:...
  • Page 12: Physical

    2430GDAC-MWP G-Link D to A Converter for MWP 3.8. PHYSICAL Dimensions: 7.2” L x 4.3” W x 1.0” H (166mm L x 110mm W x 26mm H) With mounting flanges: 7.2” L x 5.3” W x 1.0” H (166mm L x 136mm W x 26mm H) Weight: 0.85 lbs.
  • Page 13: User Controls

    Table 5-3: Media Wall Region Select Switch Settings When the 2430GDAC-MWP is configured to display a media wall (either in Maestro or when forced by DIP switch 2), a portion of the entire media wall is displayed on the connected screen. Figure 5-1 shows the layout of the media wall regions for each of the different screen configurations.
  • Page 14: Media Wall Mode

    (XGA, SXGA, etc.) can also be displayed to a single non-media wall screen when in this mode. When in forced media wall mode, the 2430GDAC-MWP configures itself to display a region of a 2x2 media wall. This allows the 2430GDAC-MWP to expand a standard resolution coming from an Evertz MVP into a 2x2 media wall without explicit support in the MVP system and in the Maestro software.
  • Page 15: Upgrading The Firmware

    Flow Control None 4. Apply power to the 2430GDAC-MWP. After the unit powers up, a banner with the boot code version information should appear in the terminal window. The cursor to the right of the word “BOOT>” should be spinning for about 5 seconds then the unit will continue to boot.
  • Page 16: Part 3 - Uploading The New Firmware

    11. Upload the “*.bin” file supplied using the X-Modem transfer protocol of your terminal program. If you do not start the upload within 10 minutes the 2430GDAC-MWP boot code will time out. You can restart the upgrade process by cycling the power to the unit.
