evertz 2430RX2-10G Series User Manual

10g video to hdmi/sdi converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
© Copyright 2015
EVERTZ MICROSYSTEMS LTD.
5288 John Lucas Drive
Burlington, Ontario
Canada L7L 5Z9
Phone:
+1 905-335-3700
Sales:
sales@evertz.com
Tech Support: service@evertz.com
Web Page:
http://www.evertz.com
Version 0.1, October 2015
The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of
purchasers of the 2430RX2-10G series product. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than
the operation of the 2430RX2-10G series product. Due to on going research and development, features and specifications in this manual are
subject to change without notice.
All rights reserved. No part of this publication may be reproduced without the express written permission of Evertz Microsystems Ltd.
Copies of this manual can be ordered from your Evertz dealer or from Evertz Microsystems.
2430RX2-10G Series
10G Video to HDMI/SDI Converter
User Manual
Fax: +1 905-335-3573
Fax: +1 905-335-7571

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2430RX2-10G Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for evertz 2430RX2-10G Series

Summary of Contents for evertz 2430RX2-10G Series

  • Page 1 Version 0.1, October 2015 The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of purchasers of the 2430RX2-10G series product. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than the operation of the 2430RX2-10G series product.
  • Page 2 This page left intentionally blank...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “Dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.
  • Page 4 WARNING Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s authority to operate the equipment. Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface cables...

  • Page 5: Table Of Contents

    2430RX2-10G Series 10G Video to HDMI/SDI Converter TABLE OF CONTENTS OVERVIEW........................... 1 GETTING STARTED ........................3 2.1. REAR PLATE DESCRIPTION ..................... 3 2.1.1. Rear Panel Connectors Description ................3 2.2. FRONT PLATE DESCRIPTION ................... 3 2.3. HARDWARE INSTALLATION ..................... 4 2.4.
  • Page 6 2430RX2-10G Series 10G Video to HDMI/SDI Converter Figures Figure 1-1: 2430RX2-10G Block Diagram ......................2 Figure 2-1: 2430RX2-10G Rear Plate ......................3 Figure 2-2: 2430RX2-10G Front Plate ......................3 Figure 4-1: System Page ..........................7 Figure 4-2: System Page cont.......................... 9 Figure 4-3: Input Control Page ........................
  • Page 7 Evertz products are for informational use only and are not warranties of future performance, either expressed or implied. The only warranty offered by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
  • Page 8 2430RX2-10G Series 10G Video to HDMI/SDI Converter This page left intentionally blank Page iv Revision 0.1...

  • Page 9: Overview

    2430RX2-10G Series 10G Video to HDMI/SDI Converter OVERVIEW The 2430RX2-10G is a versatile dual path uncompressed SDI OVER 10G to HDMI/DVI/Display Port processing converter. The 2430RX2-10G is used in applications where high density extension of DVI over IP is required.

  • Page 10: Figure 1-1: 2430Rx2-10G Block Diagram

    2430RX2-10G Series 10G Video to HDMI/SDI Converter Figure 1-1: 2430RX2-10G Block Diagram Page - 2 Revision 0.1...

  • Page 11: Getting Started

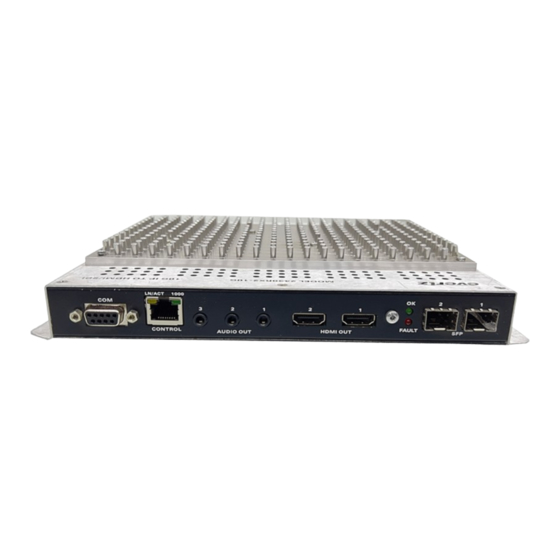

    2430RX2-10G Series 10G Video to HDMI/SDI Converter GETTING STARTED 2.1. REAR PLATE DESCRIPTION Figure 2-1: 2430RX2-10G Rear Plate 2.1.1. Rear Panel Connectors Description COM Port: DVI, VGA and Component cable Supported Resolution: VESA: VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WSXGA+, WUXGA, WQXGA (dual-link).

  • Page 12: Hardware Installation

    2430RX2-10G Series 10G Video to HDMI/SDI Converter 2.3. HARDWARE INSTALLATION NOTE: SFP’s must be ordered separately To successfully install the 2430RX2-10G you will require the following: 1. Unused IP address on the network. 2. 9Pin RS-232 serial cable Before handling this device it is important to minimize the potential effects of static electricity. It is therefore recommended that an ESD strap be worn.

  • Page 13: Specifications

    2430RX2-10G Series 10G Video to HDMI/SDI Converter SPECIFICATIONS 3.1. INPUT Format: Uncompressed SDI over 10G Number of Inputs: Connector: Female LC/UPC 3.2. OUTPUT Number of outputs: 2 (HDMI) Connector type: HDMI Supported resolutions: 525, 624, 720p 59.94/50 Hz, 1080p 59.94/50 Hz and VESA up to WUXGA (1920x1200) 3.3.
  • Page 14 2430RX2-10G Series 10G Video to HDMI/SDI Converter This page left intentionally blank Page - 6 Revision 0.1...

  • Page 15: Webeasy Interface

    2430RX2-10G Series 10G Video to HDMI/SDI Converter WEBEASY INTERFACE 4.1. SYSTEM Figure 4-1: System Page Control Port Control IP Address: This parameter allows user to set IP Address for the control port Netmask: This parameter allows user to set netmask for the control port...
  • Page 16 2430RX2-10G Series 10G Video to HDMI/SDI Converter Data Port Control For each data port the following controls can be configured. IP Address: This parameter allows user to set IP Address for the data port Netmask: This parameter allows user to set netmask for the data port...

  • Page 17: Figure 4-2: System Page Cont

    2430RX2-10G Series 10G Video to HDMI/SDI Converter Figure 4-2: System Page cont. Time Management Time Source: This parameter allows the user to select the time source to be used for system log timestamp., Either Local or NTP. Timezone Offset: This parameter allows the user to set the time zone offset.
  • Page 18 2430RX2-10G Series 10G Video to HDMI/SDI Converter System Control Load Factory Config: This control allows the SNMP Manager to revert the decoder configuration to a known factory recommended set. The manager should read the variable prior to setting, to ensure it is in the 'ready' state.

  • Page 19: Input Control

    2430RX2-10G Series 10G Video to HDMI/SDI Converter 4.2. INPUT CONTROL Figure 4-3: Input Control Page Input Setup For each Input the following controls can be configured. Input Port Enable: This parameter allows the user to enable or disable the input port.
  • Page 20 2430RX2-10G Series 10G Video to HDMI/SDI Converter IGMP V 3 Mode: This parameter allows the user to set IGMPv3 Mode to either include or exclude. IGMP V 3 SSM Src <1-6> IP Address: This parameter allows the user to enter an IGMPv3 SSM Source IP Address.

  • Page 21: Input Monitor

    2430RX2-10G Series 10G Video to HDMI/SDI Converter 4.3. INPUT MONITOR Figure 4-4: Input Monitor Page Input Monitor For both the Main and Backup inputs the following parameters can be monitored. Received On SFP Port: This parameter display the amount of data Received on the SFP Port.

  • Page 22: Output Control

    2430RX2-10G Series 10G Video to HDMI/SDI Converter 4.4. OUTPUT CONTROL Figure 4-5: Output Control Page Video Control For both the video outputs the following controls can be configured. Output Video Color On Loss: This control allows user to select the output video color that will be sent on output when the input stream is missing.

  • Page 23: Notify

    2430RX2-10G Series 10G Video to HDMI/SDI Converter 4.5. NOTIFY Figure 4-6: Notify page Video Notify Video Traps: This control is used to turn video traps on and off. Video Faults: This control checks whether a video fault is currently present.

  • Page 24: Product Features

    2430RX2-10G Series 10G Video to HDMI/SDI Converter 4.6. PRODUCT FEATURES Figure 4-7: Product Features page Product License Product License: This field specifies the product license key. Product Serial Number: This field displays the card serial number, same as the card MIB control.

  • Page 25: Upgrade Procedure

    2430RX2-10G card. If it is not upgrade the firmware using the latest .binary (.bin) files which can be found on the Evertz website. Select Browse and locate the binary (.bin) file on the computer. Then select Upgrade, when the upgrade is complete the 2430RX2-10G will Reboot to apply the firmware upgrades.
  • Page 26 2430RX2-10G Series 10G Video to HDMI/SDI Converter This page left intentionally blank Page - 18 Revision 0.1...
