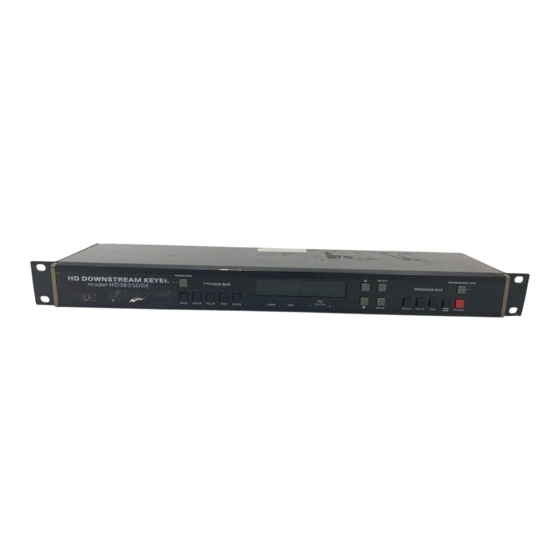

evertz HD9625DSK Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
© Copyright 2003-2007
EVERTZ MICROSYSTEMS LTD.
5288 John Lucas Drive,
Burlington, Ontario, Canada
L7L 5Z9
Phone:
Sales Fax:
Tech Support Phone:
Tech Support Fax:
Internet: Sales:
Tech Support:
Web Page:
Version 2.1.2. June 2007
The material contained in this manual consists of information that is the property of Evertz Microsystems and is
intended solely for the use of purchasers of the HD9625DSK. Evertz Microsystems expressly prohibits the use of
this manual for any purpose other than the operation of the device.
All rights reserved. No part of this publication may be reproduced without the express written permission of
Evertz Microsystems Ltd. Copies of this guide can be ordered from your Evertz products dealer or from Evertz
Microsystems.
HD9625DSK
Instruction Manual
+1 905-335-3700
+1 905-335-3573
+1 905-335-7570
+1 905-335-0909
sales@evertz.com
service@evertz.com
http://www.evertz.com

Advertisement

Table of Contents
loading

Related Manuals for evertz HD9625DSK

Summary of Contents for evertz HD9625DSK

  • Page 1 Version 2.1.2. June 2007 The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of purchasers of the HD9625DSK. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than the operation of the device.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “Dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.
  • Page 4 WARNING Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s authority to operate the equipment. Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface...
  • Page 5 Evertz products are for informational use only and are not warranties of future performance, either express or implied. The only warranty offered by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
  • Page 6 HD9625DSK Instruction Manual This page left intentionally blank REVISION HISTORY Revision 2.1.2...

  • Page 7: Table Of Contents

    1.3. FIRST TIME SETUP......................1-2 1.3.1. Rear Panel Hook Up ....................1-2 1.4. DEFINITIONS ........................1-3 HD9625DSK HARDWARE ......................2-1 2.1. REAR PANEL OVERVIEW ....................2-1 2.2. GPI/O CIRCUITRY AND OPERATION ................2-3 2.3. FRONT PANEL CONTROLS DSK ..................2-5 2.3.1.
  • Page 8 Figure 2-1: HD9625DSK Rear Panel......................2-1 Figure 2-2: Frame Supplied Power for GPI/Os .....................2-4 Figure 2-3: Externally Supplied Power for GPI/Os ..................2-5 Figure 2-4: HD9625DSK Front Panel Control ....................2-5 Figure 2-5: HD9625DSK Front Panel Control ....................2-7 Page ii TABLE OF CONTENTS...

  • Page 9: Getting Started

    The system also features letter boxing, a safe area/safe title, wipes, fades and more. The Evertz HD9625 Downstream Keyer consists of a one RU frame with front panel control, optional remote control panel, and GPI control for stored pre-sets.

  • Page 10: First Time Setup

    DB9 connector labeled SERIAL CONTROL providing automatic control of the unit. The HD9625DSK has a universal power supply that operates on either 115 Volt / 60 Hz or 230 Volt / 50 Hz AC. The power supply auto switches between the voltages. A second redundant power supply purchase option operates in conjunction with the original power supply.

  • Page 11: Definitions

    HD9625DSK Instruction Manual 1.4. DEFINITIONS 4:2:2 The sampling ratio used in the HDTV digital video signal. For every 4 samples of luminance there are 2 samples each of R-Y (Red minus Luminance) and B-Y (Blue minus luminance). 16x9 A wide screen television format such as HDTV in which the aspect ratio of the screen is 16 units wide by 9 high as opposed to the 4x3 of normal TV.
  • Page 12 HD9625DSK Instruction Manual A composite digital video recording format that uses data conforming to SMPTE 244M. Records on 1/2" magnetic tape. A component digital video recording format that uses data conforming to the ITU-R601 standard. Records on 1/2" magnetic tape.
  • Page 13 HD9625DSK Instruction Manual Pixel: The smallest distinguishable and resolvable area in a video image. A single point on the screen. In digital video, a single sample of the picture. Derived from the words picture element. Serial digital: Digital information that is transmitted in serial form. Often used informally to refer to serial digital television signals.
  • Page 14 HD9625DSK Instruction Manual This page left intentionally blank Page 1-6 OVERVIEW Revision 2.1.2...

  • Page 15: Hd9625Dsk Hardware

    • USB TRANSFERS port is for future communications with the PC or other Evertz devices. • GPIO Connector is used to provide Preset selection commands to the DSK. Please refer to the GPIO section of the manual for pin out and connection information.
  • Page 16 Serial component SMPTE 292M video required. • The HD9625DSK has a universal power supply that operates on either 115 Volt / 60 Hz or 230 Volt / 50 Hz AC. The power supply auto switches between the voltages. A second redundant power supply is optional and operates in conjunction with the original power supply.

  • Page 17: Gpi/O Circuitry And Operation

    The GPI to preset map is programmable from the front panel of the HD9625DSK. Please see the Front Panel Controls section for information on assigning GPIs to presets.

  • Page 18: Figure 2-2: Frame Supplied Power For Gpi/Os

    HD9625DSK Instruction Manual HD9625DSK "GPIO" Pin-Out definition table. Pin # Name Description 1 GND Chassis ground 2 GPO2 General purpose output 3 GPO1 General purpose output 4 GPO3 General purpose output 5 GPIC General purpose input Load assigned preset 6 GPO4...

  • Page 19: Front Panel Controls Dsk

    GP+3.3V. 2.3. FRONT PANEL CONTROLS DSK Figure 2-4: HD9625DSK Front Panel Control 2.3.1. TRANSITION This button is used to transfer the PREVIEW BUS material to the PROGRAM BUS using the pre- configured transition type. For information on Transition Types refer to section 3.4. This is similar to the “Take”...

  • Page 20: Preview Bus

    HD9625DSK Instruction Manual 2.3.2. PREVIEW BUS Items selected on the PREVIEW BUS consist of BKG/A, Fill/B, DSK, and BLACK. Items selected in the PREVIEW BUS are automatically routed to the preview output BNCs on the rear panel. The BKG/A, FILL/B DSK and BLACK buttons are mutually exclusive. This means that if you select one, the other items are automatically deselected.

  • Page 21: Pgm Bus Lock

    2.4. FRONT PANEL INDICATORS DSK Figure 2-5: HD9625DSK Front Panel Control 2.4.1. MAIN DISPLAY This sixteen character display is used to show menu items, setting values, mode selections etc.

  • Page 22: Psu Status

    HD9625DSK Instruction Manual 2.4.6. PSU STATUS When the LED is on it indicates that the associated power supply is plugged in and the 12V DC main is functioning. 2.4.7. PROGRAM BUS BKG/A LED ON indicates the program output is set to HD INPUT BGND/A...

  • Page 23: On Screen Menu (Preview Feature Not Yet Implemented)

    HD9625DSK Instruction Manual ON SCREEN MENU (PREVIEW FEATURE NOT YET IMPLEMENTED) Initial release does not include the On Screen portion of the menu system. All function feedback is provided on the 16 character front panel display screen. Please substitute Front Panel display for On Screen menu for this section.

  • Page 24: Matte

    HD9625DSK Instruction Manual 3.2. MATTE The Matte is a black overlay that blacks out video and produces a letterbox effect for the output video. Use this control to set the aspect ratio of the video. The Matte starts at the end of the VBI.

  • Page 25: Transition

    HD9625DSK Instruction Manual 3.4. TRANSITION Transition Type: Select the type on transition you would like applied when the Transition button is pressed. Options are Cut, Fade, Wipe 315, Wipe 270, Wipe 225, Wipe 180, Wipe 135, Wipe 90, Wipe 45 or Wipe 0. (item orders may vary). Transition effects only appear on the program output.
  • Page 26 HD9625DSK Instruction Manual There are 2 types of GPI triggers. The “Mode” setting in each GPI can be set to either Level or Pulse. Level is the traditional setting for the GPI triggers, where the On Closure event happens when the GPI drives the input pin low to ground.

  • Page 27: Desktop Control Panel

    HD9625DSK Instruction Manual DESKTOP CONTROL PANEL 4.1. OVERVIEW The Evertz 9625 Downstream Keyer Desktop Control Panel (DCP) is a remote setup and control hardware interface for the Evertz 9625DSK products. This section provides information on the DCP buttons and control interface. 4.2.
  • Page 28 HD9625DSK Instruction Manual You have been supplied with a 6-foot cable to connect your Remote Front Panel option to your DSK unit. The 9 pin male connector plugs into the back of the main unit body. The 9-pin female plugs into the back of the Desktop or Rack-Mount remote.
  • Page 29 HD9625DSK Instruction Manual Desktop Control Panel Page 4-3 Revision 2.1.2...

  • Page 30: Dcp Panel Button Description

    HD9625DSK Instruction Manual Order Information Cable: WA-T51 Description: 50 Foot External Extender Cable for 9000 series RCP/DCP. Cable: WA-T52 Description: 170 Foot External Extender Cable for 9000 series RCP/DCP. Cable: WA-T53 Description: 200 Foot External Extender Cable for 9000 series RCP/DCP.
  • Page 31 HD9625DSK Instruction Manual The Shaft Encoders functions as a replacement for the up and down arrow keys described in the main DSK manual. This control knob is used to increment and decrement the values selected in the menu system. You can use the shaft encoder to adjust the values, or to change the current selection in the setup menus.
  • Page 32 HD9625DSK Instruction Manual This is a Matte On/Off button. A lit LED indicates that the Matte is enabled. Matte settings can be changed from the Matte menu option. Press the setup button and scroll to the Matte menu item to make changes to the aspect ratio and other aspects of the Matte.
  • Page 33 HD9625DSK Instruction Manual This button locks manual changes to the output video on the program bus. Transition PG M LOCK changes from the take button and GPI triggers are still active and can change program output. This is a quick access into the internal menu system of the DSK unit. This button gives...
  • Page 34 HD9625DSK Instruction Manual This is a quick access into the internal menu system of the DSK unit. This button gives RATE you access to the Rate level of the menu system. This is similar to pressing the Setup button to access the menu system and then using the shaft encoders to select the transition option from the menu.

  • Page 35: Upgrading Firmware

    Note: Firmware downloaded from the FTP section on the Evertz web page (www.evertz.com) it is stored in compressed form in a zip file. If the file extension is “*.exe” you must first run the self-extracting zip file to extract the “*.bin” located within.

  • Page 36: Part Ii - Invoke Upload Mode Via The Front Panel

    Stop bits Flow Control None 5. Power-up the Evertz frame. 5.2.2. Part II – Invoke upload mode via the front panel Note: If you cannot invoke the upload mode via the front panel outlined in Part II then follow the steps in Part III.

  • Page 37: Part Iv - Uploading The New Firmware

    HD9625DSK Instruction Manual 9. While the cursor is replicating press the <CTRL> and <X> keys, this should stop the cursor from replicating. If the Evertz frame continues to boot-up simply cycle the power on the Evertz frame and repeat this step.

  • Page 38: Servicing Instructions

    HD9625DSK Instruction Manual 5.3. SERVICING INSTRUCTIONS CAUTION – These servicing instructions are for use by qualified service personnel only. To reduce risk of electric shock do not perform any servicing instructions in this section of the manual unless you are qualified to do so.

  • Page 39: Index

    HD9625DSK Instruction Manual INDEX ARROWS ............ 2-6 Main Display..........2-7 Matte ............3-2 Bypass..........2-7, 2-8 On Screen Menu ......... 3-1 Overview ............. 1-1 COMM ............2-7 PGM Bus Lock ..........2-8 DCP............. 1-2 POWER SUPPLY ........2-2 DSK ............2-7, 3-2 Preset............
