TR-4800E
Tally Router
User Manual
+1 905-335-3700
+1 905-335-3573
+1 905-335-7570
+1 905-335-7571
sales@evertz.com
http://www.evertz.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-4800E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for evertz TR-4800E

Summary of Contents for evertz TR-4800E

  • Page 1 Version 1.1, Jul 2015 The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of purchasers of the TR-4800E. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than the operation of the device.
  • Page 2 This page left intentionally blank...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “Dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.
  • Page 4 WARNING: DANGEROUSLY HIGH VOLTAGES ARE PRESENT INSIDE THE POWER SUPPLY FRAME. WARNING: TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE THIS EQUIPMENT MAY HAVE MORE THAN ONE POWER SUPPLY CORD. TO REDUCE THE RISK OF ELECTRIC SHOCK, DISCONNECT ALL POWER SUPPLY CORDS BEFORE SERVICING.
  • Page 5 INFORMATION TO USERS IN EUROPE NOTE This equipment with the CE marking complies with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European standards: •...
  • Page 6 WARNING Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s authority to operate the equipment. Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface cables with the shield connected to the chassis ground of the device is a must.

  • Page 7: Table Of Contents

    TR-4800E Tally Router TABLE OF CONTENTS OVERVIEW ........................... 1 SPECIFICATIONS......................... 3 REAR GENERAL PURPOSE INPUTS ................. 3 REAR GENERAL PURPOSE OUTPUTS ................3 FRONT GENERAL PURPOSE I/O (+BP16 OPTION ONLY) ..........3 SERIAL PORTS ........................3 ETHERNET PORT ........................ 3 POWER SUPPLIES ......................
  • Page 8 TR-4800E Tally Router 4.2.3 Opening the Configuration View for the TR-4800E in VistaLINK® Pro ....24 4.2.4 Opening the Alarm View for the TR-4800E in VistaLINK® Pro ........ 25 CONFIGURING THE TALLY ROUTER ................25 4.3.1 Selecting the Wet Voltage Source ................25 4.3.2 Configuring the Front GPIO Binding Posts (+BP16 option only) ......
  • Page 9 Figure 1-1: Front Panel of the TR-4800E ......................1 Figure 1-2: Rear Panel of the TR-4800E ......................1 Figure 1-3: Front Panel of the TR-4800E with 16 Binding Posts (+BP16 option) ..........2 Figure 1-4: Rear Panel View of the TR-4800E with the +BP16 option .............. 2 Figure 1-5: Optional TR4800-BHP Breakout Panel for Rear 48 GPO and 32 GPI ...........
  • Page 10 TR-4800E Tally Router This page left intentionally blank Page - iv Revision 1.1...
  • Page 11 Evertz products are for informational use only and are not warranties of future performance, either expressed or implied. The only warranty offered by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
  • Page 12 TR-4800E Tally Router This page left intentionally blank Page - vi Revision 1.1...

  • Page 13: Overview

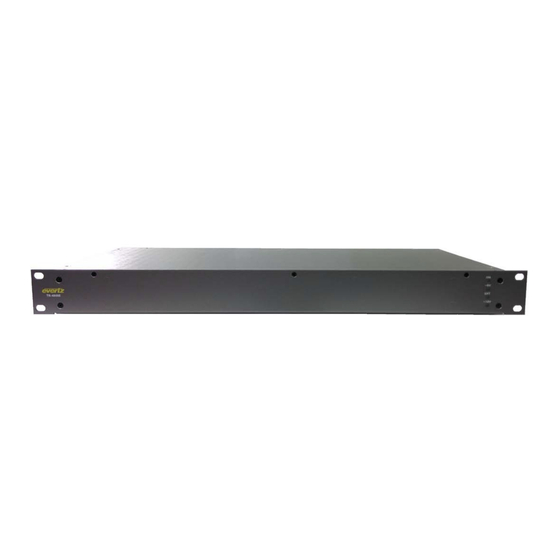

    Tally Router OVERVIEW The TR-4800E Tally Router is an Ethernet-controlled interface for 32 General Purpose Inputs (GPIs) and 48 General Purpose Outputs (GPOs). It is the successor to the TR-3200E. All General Purpose I/O (GPIO) are provided on five, 37-pin D-Sub connectors on the back of the unit. A gigabit 1000baseT Ethernet connection is used to configure and control the unit.

  • Page 14: Figure 1-3: Front Panel Of The Tr-4800E With 16 Binding Posts (+Bp16 Option)

    TR-4800E Tally Router Figure 1-3: Front Panel of the TR-4800E with 16 Binding Posts (+BP16 option) Figure 1-4: Rear Panel View of the TR-4800E with the +BP16 option The +BP16 ordering option adds 16 configurable GPIO to the front panel on binding posts. The rear wet power binding posts are also moved to the front panel.

  • Page 15: Specifications

    TR-4800E Tally Router SPECIFICATIONS REAR GENERAL PURPOSE INPUTS Number of GPIs: Connectors: 2 x D-Subminiature DC-37 female sockets, each with 16 GPI Maximum Voltage: +/- 24 Volts DC Protection: Current limit, approximately 10mA – 15mA. Wet Power: Provided on +WET and –WET pins (isolated from chassis ground)

  • Page 16: Power Supplies

    TR-4800E Tally Router POWER SUPPLIES AC Voltage: Auto-ranging 100 - 240 Volts AC, 50/60Hz Protection: Line fuse and neutral fuse (T2AL250V) Power Factor: > 0.7 Redundant Supply: External +12V DC power supply provided (auto-ranging) Power Consumption Wet Power Off: 20 watts typical (Wet power “none” or “external”)

  • Page 17: Installation

    POWER CONNECTIONS The TR-4800E power supply has an IEC320 C14 AC power inlet. This combines a standard power inlet with a fuse holder and EMI line filter. The inlet is fused from the factory for 120V with two fuses rated for 2 amps (T2AL250V).

  • Page 18: Ethernet Connection

    Tally Router ETHERNET CONNECTION The TR-4800E is equipped with a Gigabit Ethernet port. It can be used with either 100base-TX (100 Mbps) or 1000base-T (1 Gbps) twisted pair Ethernet networks. Category 5e UTP cable or better is required with a maximum length of less than 100 meters (328 feet). The cable must be “straight through”...

  • Page 19: Serial Ports

    The Serial2 port is used for optional Quartz protocol control. Please see section 5.1 for a discussion on how the Quartz protocol is used in the context of the tally router. Refer to Evertz application note AN65 for more information about the Quartz protocol.

  • Page 20: General Purpose Inputs

    TR-4800E Tally Router GENERAL PURPOSE INPUTS There are 32 General Purpose Inputs (GPIs) available on two 37-pin D-Sub connectors on the rear on the tally router. These connectors are labelled “Inputs1 (1-16)” and “Inputs2 (17-32)”. The GPIs are “Wet” meaning they need external voltage to function. The GPI ports are used to read the tallies (GPOs) from products such as a vision mixer (production switcher).

  • Page 21: Table 2-5: Rear Panel Inputs 1 (1-16) Connector Pinout

    TR-4800E Tally Router INPUTS 1 (1-16) Wet Voltage Return WET- WET+ Voltage (5V/12V/EXT) Wet Voltage Return WET- WET+ Voltage (5V/12V/EXT) Wet Voltage Return WET- Wet Input 1 (-) Wet Input 1 (+) Wet Input 2 (-) Wet Input 2 (+)

  • Page 22: Output Ports

    “Output3 (33-48)”. The GPOs are “Dry” meaning no Wet voltage is present. The GPOs can be used to activate tally lights or send triggers to equipment such as the Evertz VIP multiviewers, switchers, and keyers. They can also be used to drive camera tally lamps. The pinout of these connectors are not all the same and care must be taken to use the correct wiring (see Table 2-8, Table 2-9, and Table 2-10).

  • Page 23: Table 2-8: Rear Panel Outputs 1 (1-16) Connector Pinout

    TR-4800E Tally Router OUTPUTS 1 (1-16) Wet Voltage Return WET- WET+ Voltage (5V/12V/EXT) Wet Voltage Return WET- WET+ Voltage (5V/12V/EXT) Wet Voltage Return WET- Dry Output 1 (B) Dry Output 1 (A) Dry Output 2 (B) Dry Output 2 (A)

  • Page 24: Table 2-10: Rear Panel Outputs 2 (33-48) Connector Pinout

    TR-4800E Tally Router OUTPUTS 3 (33-48) Dry Output 48 (A) Dry Output 48 (B) Dry Output 47 (A) Dry Output 47 (B) Dry Output 46 (A) Dry Output 46 (B) Dry Output 45 (A) Dry Output 45 (B) Dry Output 44 (A)

  • Page 25: Wet Power

    Tally Router WET POWER The TR-4800E has a dedicated wet power source that can be used to provide voltage to GPIs and GPOs. This allows the GPIO to be either powered or unpowered depending on the requirements of the equipment that needs to be interfaced to (see section 2.7). This wet power source is provided to all of the rear 37-pin D-Sub connectors as +WET and –WET.

  • Page 26: General Purpose I/O Modes

    GENERAL PURPOSE I/O MODES The TR-4800E tally router is designed to have flexible General Purpose I/O to allow them to be used for a wide range of purposes from driving all types of equipment to illuminating lamps, and reading the state of switches.

  • Page 27: General Purpose Output Modes

    TR-4800E Tally Router 3.7.2 General Purpose Output Modes The default state of GPOs is “normally-open” mode with pulse mode disabled. When the GPO is off, the “A” and “B” contacts are open (normally-open). When the GPO is turned on, the contacts close.

  • Page 28: Front Panel Binding Posts Option (+Bp16)

    Tally Router FRONT PANEL BINDING POSTS OPTION (+BP16) If the TR-4800E is ordered with the +BP16 option, there will be an additional 16 General Purpose I/O (GPIO) channels available on the front panel on standard banana plug binding post connectors. These are called GPIO as they are software-selectable between input (GPI) and output (GPO) modes.

  • Page 29: Binding Post Inputs

    TR-4800E Tally Router Maximum Current 0.15 Amps Maximum Voltage +/- 24V DC < 3.0 Ω Closed Contact Resistance Table 2-12: Front GPIO Channel GPO Electrical Specifications  Do not exceed the maximum voltage specified or the GPO may be damaged.

  • Page 30: Optional Tr4800-Bhp Bulkhead Panel

    TR-4800E Tally Router Maximum GPI Voltage +24 Volts DC Maximum Reverse GPI Voltage -24 Volts DC Voltage to Turn GPI On > +2.0 Volts Voltage to Turn GPI Off < +1.0 Volts ~3mA @ +5V GPI Current ~9mA @ +12V...

  • Page 31: Tr4800-Bhp General Purpose Output Connections

    TR-4800E Tally Router 3.9.1 TR4800-BHP General Purpose Output Connections The rear 48 General Purpose Outputs from the tally router are broken out to 48 terminal blocks across the top of the bulkhead panel. Each GPO has a slide switch below it to select between Wet and Dry modes (see section 2.7.1).

  • Page 32: Tr4800-Bhp General Purpose Input Connections

    TR-4800E Tally Router 3.9.2 TR4800-BHP General Purpose Input Connections The rear 32 General Purpose Inputs from the tally router are broken out to 32 terminal blocks across the bottom of the bulkhead panel. Each GPO has a miniature slide switch below it to select between Wet and Dry modes (see section 2.7.1).

  • Page 33: Configuration

    Tally Router CONFIGURATION The TR-4800E Tally Router is primarily configured and controlled through the Ethernet port using the SNMP and Quartz protocols. The serial ports (see section 2.3) are used for initial configuration and for optional serial-based Quartz protocol control.

  • Page 34: Updating And Using Vistalink Pro

    The VistaLINK® Pro client is a powerful SNMP client that is offered as a free download from the Evertz website (www.evertz.com). It can be used for monitoring and configuring Evertz gear. The full version of VistaLINK® provides a server application for centralized alarm management, which monitors, reports, and logs all incoming trap events and dispatches alerts to all the VistaLINK®...

  • Page 35: Updating Vistalink® With A New Jar File

    Pro client provides an interactive and visual interface to configure and monitor the tally router. This interface is stored in a JAR file. The JAR file for the TR-4800E is named “VLProProd_TR4800E.jar”. In order to recognize and display the graphical configuration for the tally ®...

  • Page 36: Applying A Jar Update Vistalink® Pro

    “Hide/Show Tree”. If the hardware node is not visible, check that it is enabled in the “Tree” menu under “Properties…”. The TR-4800E should show up as a 1RU network graphic, listed by its IP address: . The network tree entry for the TR-4800E can be renamed to any helpful description by choosing the “Update Description…”...

  • Page 37: Opening The Alarm View For The Tr-4800E In Vistalink® Pro

    4.2.4 Opening the Alarm View for the TR-4800E in VistaLINK® Pro The Alarm view can be accessed by right-clicking on the TR-4800E in the Navigation Tree and selecting “View Alarm”. This will open up an alarm window that pulls the alarm log from the VistaLINK®...

  • Page 38: Configuring The Front Gpio Binding Posts (+Bp16 Option Only)

    4.3.2 Configuring the Front GPIO Binding Posts (+BP16 option only) When the TR-4800E has been ordered with the +BP16 option, there will be 16 GPIO available on the front panel through banana-type binding posts. Each of these GPIO can be configured as a GPI or a GPO, Wet or Dry.

  • Page 39: Operation

    QUARTZ REMOTE CONTROL PROTOCOL A full discussion on the Quartz protocol is outside the scope of this document. Please refer to Evertz application note AN65 for detail on the format of the Quartz protocol. The Quartz protocol control can be done through the Serial2 port, or more commonly through a TCP/IP connection.

  • Page 40: Magnum Integration

    TR-4800E Tally Router MAGNUM INTEGRATION 5.2.1 MAGNUM-TALLY License Admin->License management Page - 28 Revision 1.1...

  • Page 41: Adding The Tally Router To Magnum

    Add new Tally router device, use port 9676 UPGRADING THE FIRMWARE The firmware in the TR-4800E is stored in a FLASH EEPROM. From time to time firmware updates will be provided to add additional features to the unit. Check the Evertz web site for information on firmware releases (www.evertz.com).

  • Page 42: Performing A Firmware Upgrade Through The Serial Port

    Figure 4-1: VistaLINK® Pro Upgrade Firmware Dialog Click the Browse button and select the new firmware BIN file that was downloaded from the Evertz website (Image file). Then click the Start button. Answer “Yes” if you are sure you want to upgrade.
