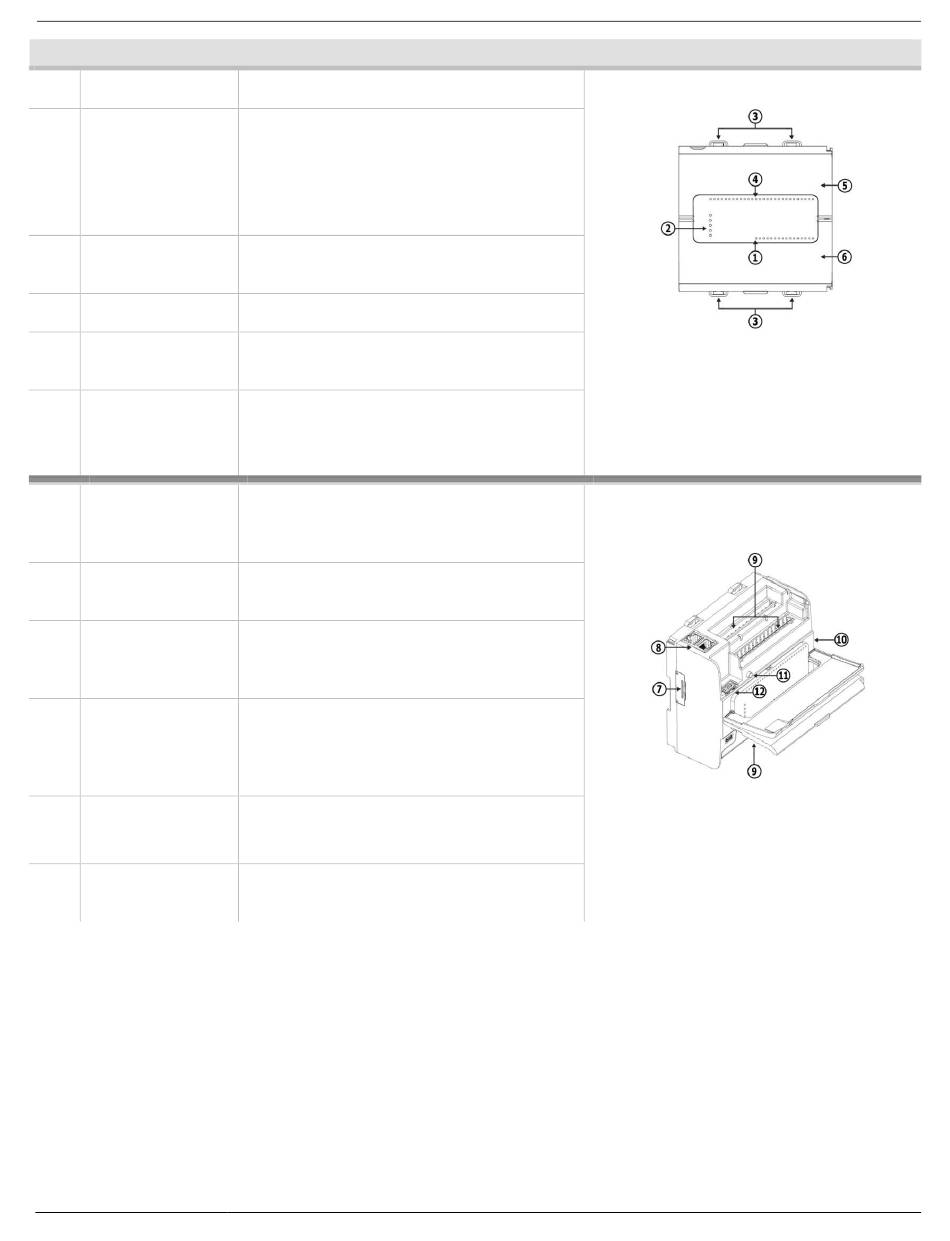

Product Diagram
1 Output LEDs
2 Status LEDs
3 DIN-rail clips
4 Input LEDs
5 Top Door,
Closed
6 Bottom Door,
Closed
7 Uni-COM™ Jack
8 Ethernet ports
9 Input/Output
connection
points
10 I/O Bus
connector
11 CONFIRM
Button
12 USB Host port
4
Green / Red LEDs
Tricolor LEDs, Green/Red/Orange
From top to bottom: RUN, ERROR,
USB, BATT. LOW, and FORCE.
Note that LED indications are listed in
the product's technical specifications.
Clips at top and bottom physically
support the device
Green / Red LEDs
Covers the Confirm button and the
USB Host port
Covers the internal door protecting the
battery and microSD slot.
Connection port for Uni-COM CB
modules*. Shipped covered; leave
cover in place when not in use.
Two ports for Ethernet
communications.
Model-dependent. Present in models
with built-in I/O configurations.
(Not shown) Connection point for Uni-
I/O™ modules and I/O expansion
adapters, shipped covered. Leave
covered when not in use.
Used to implement and confirm USB
Actions.
Provides the interface for external USB
devices.
