QUICK START GUIDE
b. To improve the viewing experience of the software user
interface, the user can set the custom scale size of a
display of PC or laptop by following these steps:
1. Open settings then click on System.
2. Go to Display.
3. In the Scale and layout section, choose the 100%
scale setting by using the scale drop-down box.
4. Restart the software to apply changes. Note that
6 is based on Windows 10.
c. To verify the hardware communication, load the
ADATE304 Default Test Conditions.sbus file. If the EVAL-
ADATE304BBCZ successfully communicates with the PC,
the software user interface (see
default values (see the
information). If the user interface does not reflect the default
values, perform the following steps:
1. Close the ADATE304 Evaluation Board Software.
2. Disconnect the USB cable.
3. Turn off the power supply.
4. Activate the power supply again.
5. Reconnect the USB cable.
6. Open the ADATE304 Evaluation Board Software, the
command prompt displays configuration success (see
Figure
ditions.sbus file to confirm if the user interface reflects
the default values of the registers (see
analog.com
Arrow.com.
Downloaded from

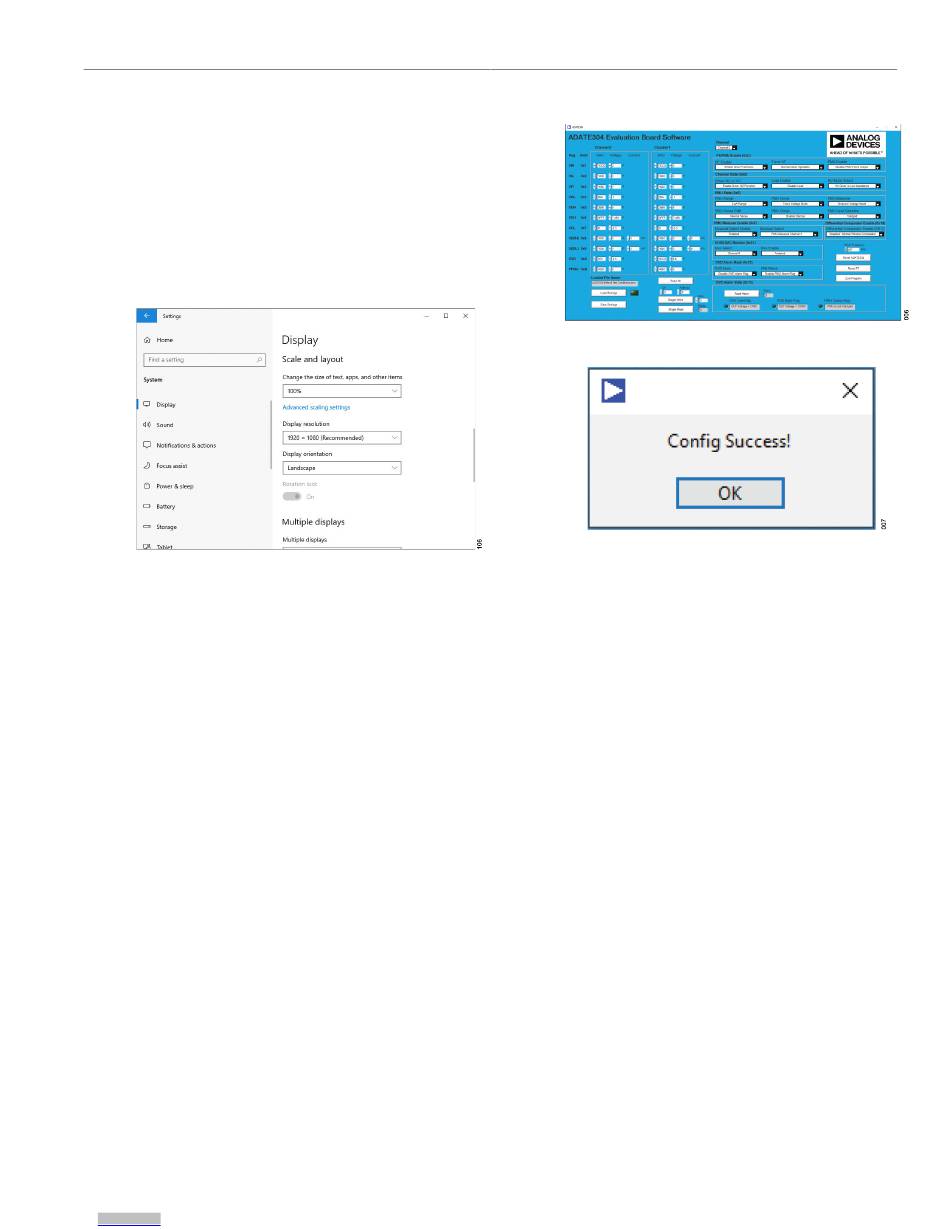

Figure 6. Scale Setting
