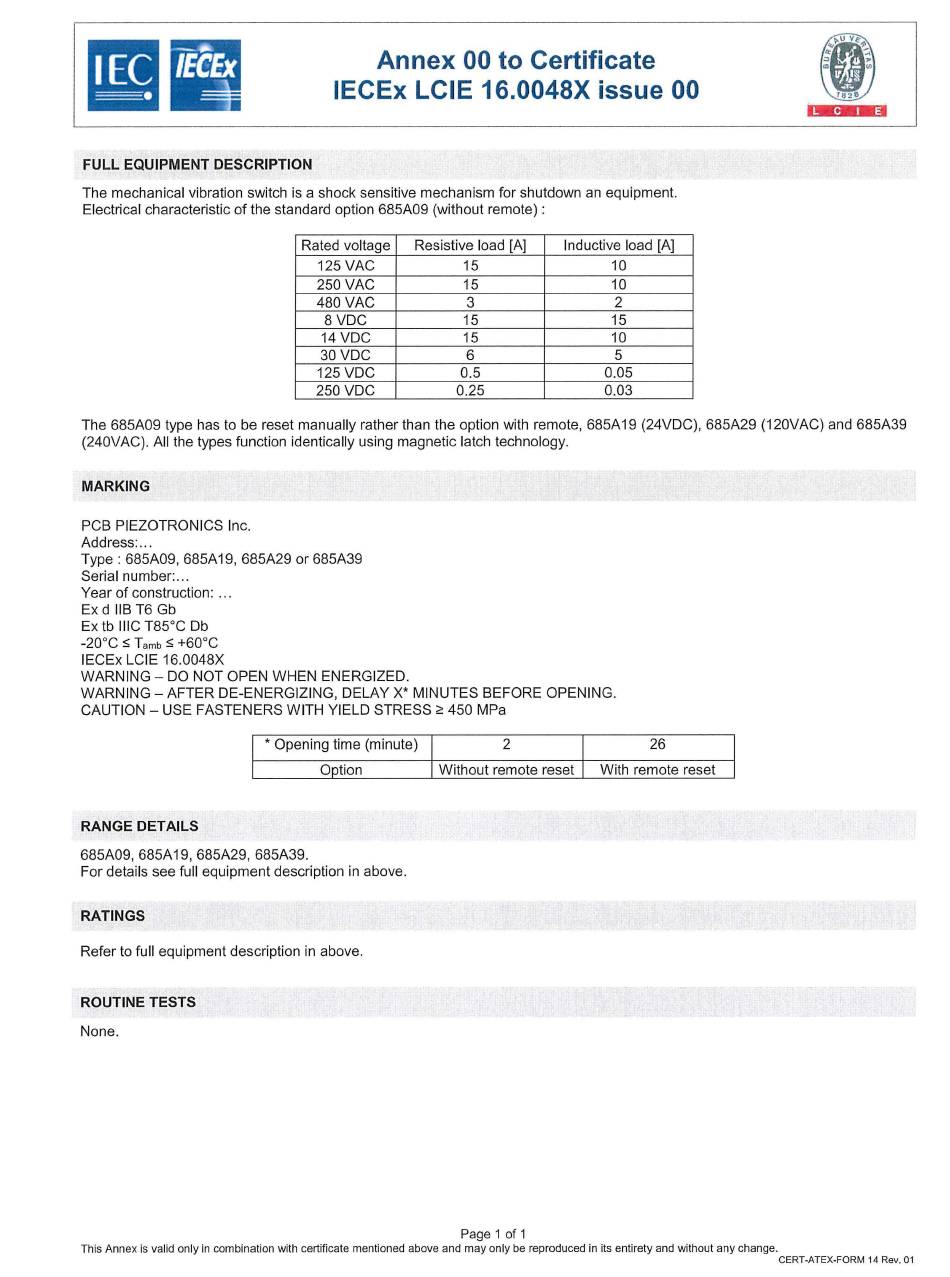

Annex 00 to Certificate
lECEx LCIE 16.0048X issue 00
FULL EQUIPMENT DESCRIPTION
The mechanical vibration switch is a shock sensitive mechanism for shutdown an equipment.
Electrical characteristic of the standard option 685A09 (without remote)
Rated voltage Resistive load [A] Inductive load [A]
125 VAC
15 10
250 VAC 15 10
480 VAC 3 2
8VDC 15 15
14 VDC
15 10
30 VDC 6 5
125 VDC 0.5 0.05
250 VDC 0.25 0.03
The 685A09 type has to be reset manually rather than the option with remote, 685A1 9 (24VDC), 685A29 (120VAC) and 685A39
(240VAC). All the types function identically using magnetic latch technology.
MARKING
PCB PIEZOTRONICS Inc.
Address:...
Type : 685A09, 685A1 9, 685A29 or 685A39
Serial number:...
Year of construction:
Ex d IIB T6 Gb
Ex tb 1110 T85°C Db
-200C
Temb :5
+60CC
lECEx LCIE 16.0048X
WARNING
-
DO NOT OPEN WHEN ENERGIZED.
WARNING
-
AFTER DE-ENERGIZING, DELAY X* MINUTES BEFORE OPENING.
CAUTION
-
USE FASTENERS WITH YIELD STRESS
~!
450 MPa
*
Opening time (minute) 2 26
Option Without remote reset With remote reset
RANGE DETAILS
685A09, 685A19, 685A29, 685A39.
For details see full equipment description in above.
RATINGS
Refer to full equipment description in above.
ROUTINE TESTS
None.
Page 1 of 1
