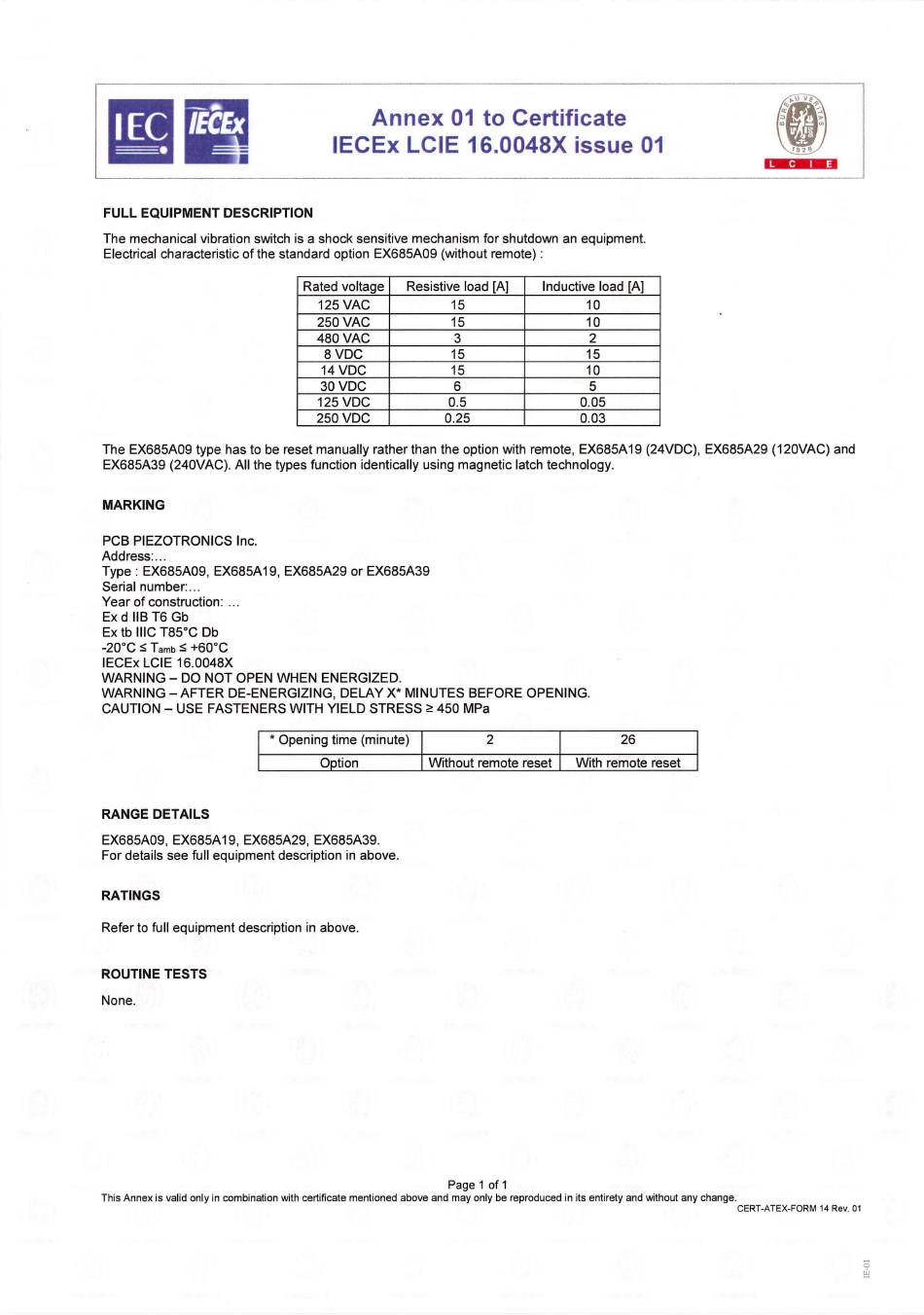

Annex 01 to Certificate
=
lECEx LCIE 16.0048X issue 01
I
FULL EQUIPMENT DESCRIPTION
The mechanical vibration switch is a shock sensitive mechanism for shutdown an equipment.
Electrical characteristic of the standard option EX685A09 (without remote):
Rated voltage
Resistive load [A]
Inductive load [A]
125 VAC 15 10
250 VAC 15 10
480 VAC 3 2
8VDC 15 15
14 VDC 15 10
30 VDC 6 5
125 VDC 0.5 0.05
250 VDC 0.25 0.03
The EX685A09 type has to be reset manually rather than the option with remote, EX685A19 (24VDC), EX685A29 (120VAC) and
EX685A39 (240VAC). All the types function identically using magnetic latch technology.
MARKING
PCB PIEZOTRONICS Inc.
Address:...
Type: EX685A09, EX685A1 9, EX685A29 or EX685A39
Serial number:...
Year of construction:
Ex IIB 16 Gb
Ex tb IlIC T85°C Db
-20CC
:5 Tamt :5
+60C
lECEx LCIE 16.0048X
WARNING
-
DO NOT OPEN WHEN ENERGIZED.
WARNING -AFTER DE-ENERGIZING, DELAY X* MINUTES BEFORE OPENING.
CAUTION
-
USE FASTENERS WITH YIELD STRESS
~
450 MPa
*
Opening time (minute) 2 26
Option Without remote reset With remote reset
RANGE DETAILS
EX685A09, EX685A19, EX685A29, EX685A39.
For details see full equipment description in above.
RATINGS
Refer to full equipment description in above.
ROUTINE TESTS
None.
Page
1
of
1
This Annex is valid only in combination with certificate mentioned above and may only be reproduced in its entirety and without any change.
