PCB Piezotronics IMI SENSORS EX685A09 Installation And Operating Manual page 16

4
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
o
B 6.38 [162.1]
o 5.89 [149.7]
4.18 [106.1]
1
2.17 [55.2]
A
.16 [4.1]
1 PLUG NOT SHOWN IN VIEW FOR CLARITY
4
3
ETCHING LABEL
COVER MOUNTING SCREW
(5mm HEX KEY REQUIRED)
COVER
ENCLOSURE
3/4 - 14 NPT
CONDUIT PORT
MOUNTING PLATE
3
2
RESET SWITCH
SENSITIVITY
ADJUSTMENT
SCREW
GROUND SCREW
5.55 [141.0]
5.00 [127.0]
3.00 [76.2]
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN INCHES DIMENSIONS IN MILLIMETERS
[ IN BRACKETS ]
DECIMALS XX ±.03 DECIMALS X ± 0.8
XXX ±.010 XX ± 0.25
` `
ANGLES 2 DEGREES ANGLES 2 DEGREES
CABLE TOLERANCES IN ENGLISH CABLE TOLERANCES IN METRIC
1"≤ LENGTH < 1' = +1"/ - 0
2.54cm ≤ LENGTH < 30.5cm = +2.54cm/ - 0
1'≤ LENGTH < 5' = +2"/ - 0
30.5cm ≤ LENGTH < 1.5m = +5.1cm/ - 0
5'≤ LENGTH < 100' = +6"/ - 0 1.5m ≤ LENGTH < 30.5m = +15.2cm/ - 0
30.5m ≤ LENGTH = +30.5cm/ - 0
100'≤ LENGTH = +1'/ - 0
FILLETS AND RADII FILLETS AND RADII
.003 - .005 0.07 - 0.13
2
1
REVISIONS
REV DESCRIPTION
NR RELEASED TO DRAFTING
5.25 [133.4]
5.00 [127.0]
2.32 [59.0]
4X
4X
4X .38 [9.7]
MOUNTING PLATE DETAIL
SCALE .4X
DRAWN CHECKED ENGINEER
NJF 12/13/23 JDM 12/13/23 LAB 12/13/23
3425 WALDEN AVE. DEPEW, NY 14043
TITLE
(716) 684-0001 E-MAIL: sales@pcb.com

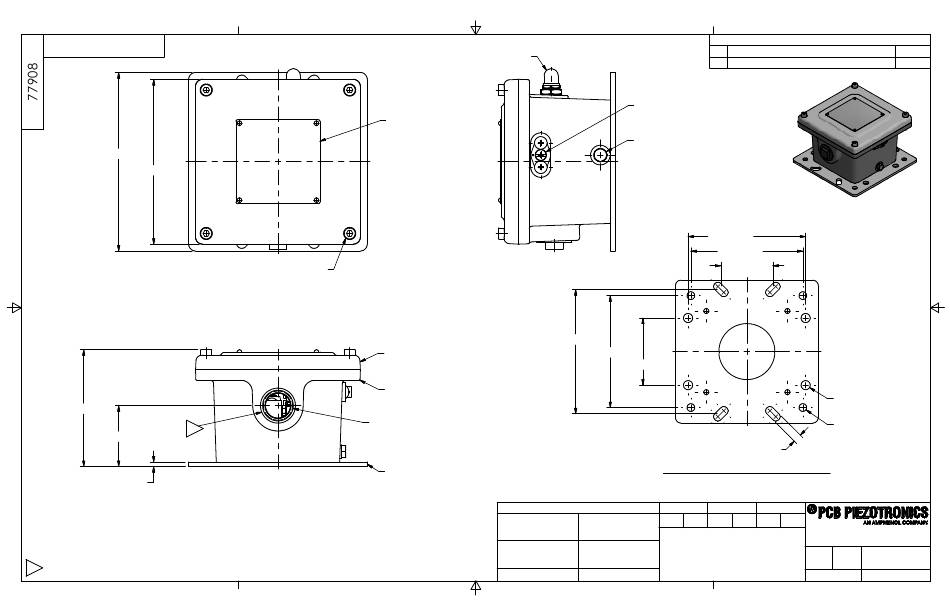

OUTLINE DRAWING
SHEET
CODE
MECHANICAL VIBRATION SWITCH
IDENT. NO.
EX685A09, A19, A29, A39
52681
SCALE: .5X
1
DIN
54129
B
n n
.41 [ 10.3] THRU
n n
.34 [ 8.7] THRU
A
DWG. NO.
77908
B
SHEET 1 OF 1
