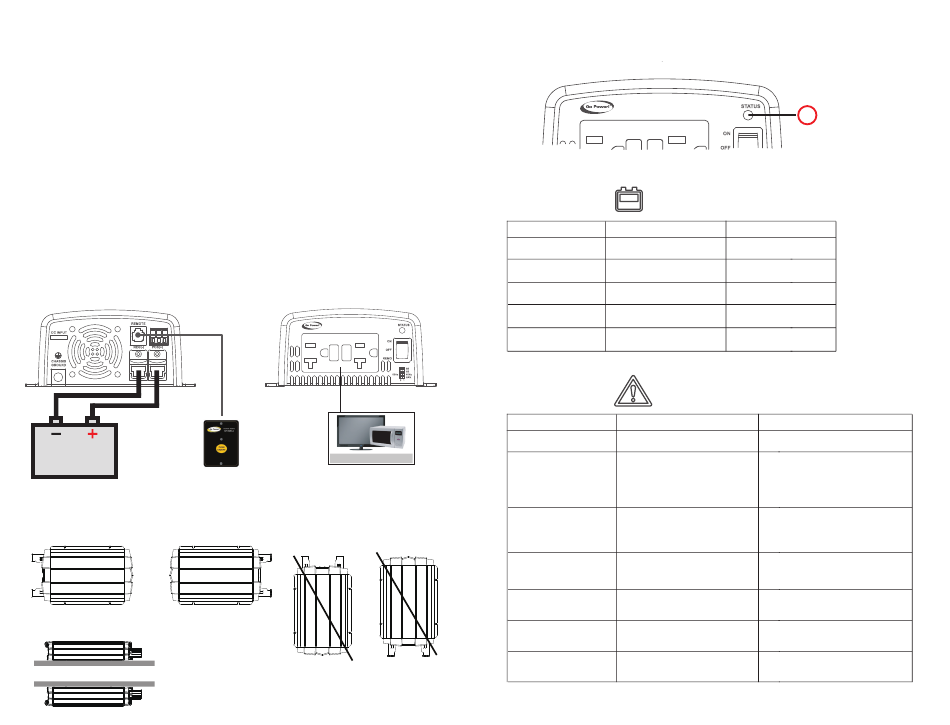

Installation and Wiring - Overview
The GP-ISW should be located as close to the batteries as possible but
not within the same compartment. The length and size of the DC Cables
will affect performance. Long DC wires tend to lose efficiency and reduce
the overall performance of the Inverter/Charger.
For optimum Inverter performance the GP-ISW must be installed so the
front and rear air vents are not blocked or obstructed in any way. Do not
install the GP-ISW in an area with limited air flow. Allow as much space
around the Inverter as possible, leaving at least 4 inches of airspace
clearance around all ventilation areas.
Tools and Materials Needed
• Flathead Screwdriver (for wire terminals)
• Philips Screwdriver (for mounting screws)
Battery
GP-SWR-A
Remote Control
Mounting Orientations
HORIZONTAL WALL MOUNT, BASE DOWN
HORIZONTAL MOUNT,
BASE UP
HORIZONTAL MOUNT,
BASE DOWN
PURE SINE WAVE INVERTER
LOAD
VERTICAL MOUNT, DO NOT MOUNT
THE GP-ISW IN THIS CONFIGURATION
LED Indicators
PURE SINE WAVE INVERTER
Input Voltage Level
LED Status DC 12V
Red < 11.0V
Orange 11.0 ~ 11.5V
Green 11.5 ~ 15.0V
Orange 15.0 ~ 15.5V
Red < 15.5V
Input Voltage Level
LED Status Status
Green
Normal
Over Current Protection/
Over Load Protection (AC
Red
output short-circuit and over
load)
Under Voltage Protection/
Red Blink (Input DC voltage under
spec)
Over Voltage Protection
Red Fast Blink
(Input DC voltage over spec)
Device startup process
Orange
abnormal
Under Temperature Protection/
Orange Fast Blink
(Heat sink temp. under -20°C)
Over Temperature Protection
Orange Slow Blink
(Heat sink temp. over 80°C)
See user manual for complete instructions at gpelectric.com
2
DC 24V
< 22.0V
22.0 ~ 23.0V
23.0 ~ 30.0V
30.0 ~ 31.0V
> 31.0V
Recovery Point
12.5V @ DC12V System
25V @ DC24V System
14.5V @ DC12V System
29V @ DC24V System
-
> 0°C
(Heat sink temperature)
< 60°C
(Heat sink temperature)
