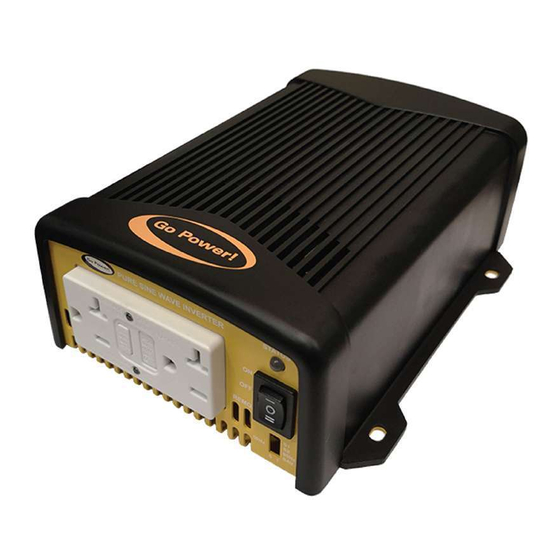

Go Power GP-ISW-400 Quick Start Manual

Speci cations
Note: Both 12V and 24V inverter specifications are listed below.
GP-ISW200
Continuous Output Power 200 W (VA)
Maximum Surge Rating 250 W (VA)
Output Waveform
Output Voltage Range ± 3%
Input Voltage
12 V: 89%
24 V: 91%
12 V: <0.5A
No Load Current Draw / Powersave
24 V: <0.4A
Input Protection Reverse Polarity (Fuse) / Under Voltage / Over Voltage
Output Protection
Low Battery Alarm ± 0.3 V
(± 0.5 V for 24 V inverters)
Low Battery Shutdown ± 0.3 V
(± 0.5 V for 24 V inverters)
Operating Temperature Range
Storage Temperature Range
Cooling
AC Output Connections
5.91 x 2.68 x 7.36 inch
Dimensions (W x H x L)
(150 x 68 x 187 mm)
Weight 3.5 lbs (1.6 kg)
Warranty
Inverter Install Kits
Remotes (Optional)
Regulations and Safety
Warnings
Do not open or disassemble the Inverter. Attempting to do so may cause risk of electrical shock or fire.
We guarantee this product against defects in materials and workmanship for a period of 24 months
from the date of purchase. In case you need to repair or replace any defective power inverters, please
contact your local Go Power! distributor.
This warranty will be considered void if the unit has been misused, altered, or accidentally damaged.
Go Power! is not liable for anything that occurs as a result of the user's fault.
Please read the Owner's Manual BEFORE connecting to the supply.
You can view and download the manual at
https://gpelectric.info/ISW200400Manual
GP-ISW400
400 W (VA)
800 W (VA)
Pure Sine Wave
100 - 120 VAC (Dip Switch Selectable)
12 V: 10 - 16 VDC
24 V: 20 - 32 VDC
12 V:88%
24 V: 89%
12 V: <1A @ 12VDC
24 V: <0.5 @ 24VDC
Short Circuit / Overload / Over Temperature
12 V: 10 V
24 V: 21 V
12 V: 10 V
24 V: 20 V
-4˚ F - 140˚ F (-20˚ C - 60˚ C)
-22˚ F - 158˚ F (-30˚ C - 70˚ C)
Temperature and Load Controller Cooling Fan
Dual GFCI Outlet
5.91 x 2.68 x 7.36 inch
(150 x 68 x 187 mm)
3.5 lbs (1.6 kg)
2 Years
GP-DC-KIT1
GP-ISW-R / GP-SWR-A
3
PURE SINE WAVE INVERTER
ON / OFF / Remote Main Switch
1
LED Indicator
2
7
8
DC Input Terminal
5
Green Terminal
6
Find tech tips, manuals and support at gpelectric.com
GP-ISW-200/400
Pure Sine Wave Inverter
Quick Start Guide
2
1
4
AC Output
3
Function Switch
4
6
5
Remote Port (RJ-11)
7
Chassis Ground
8
