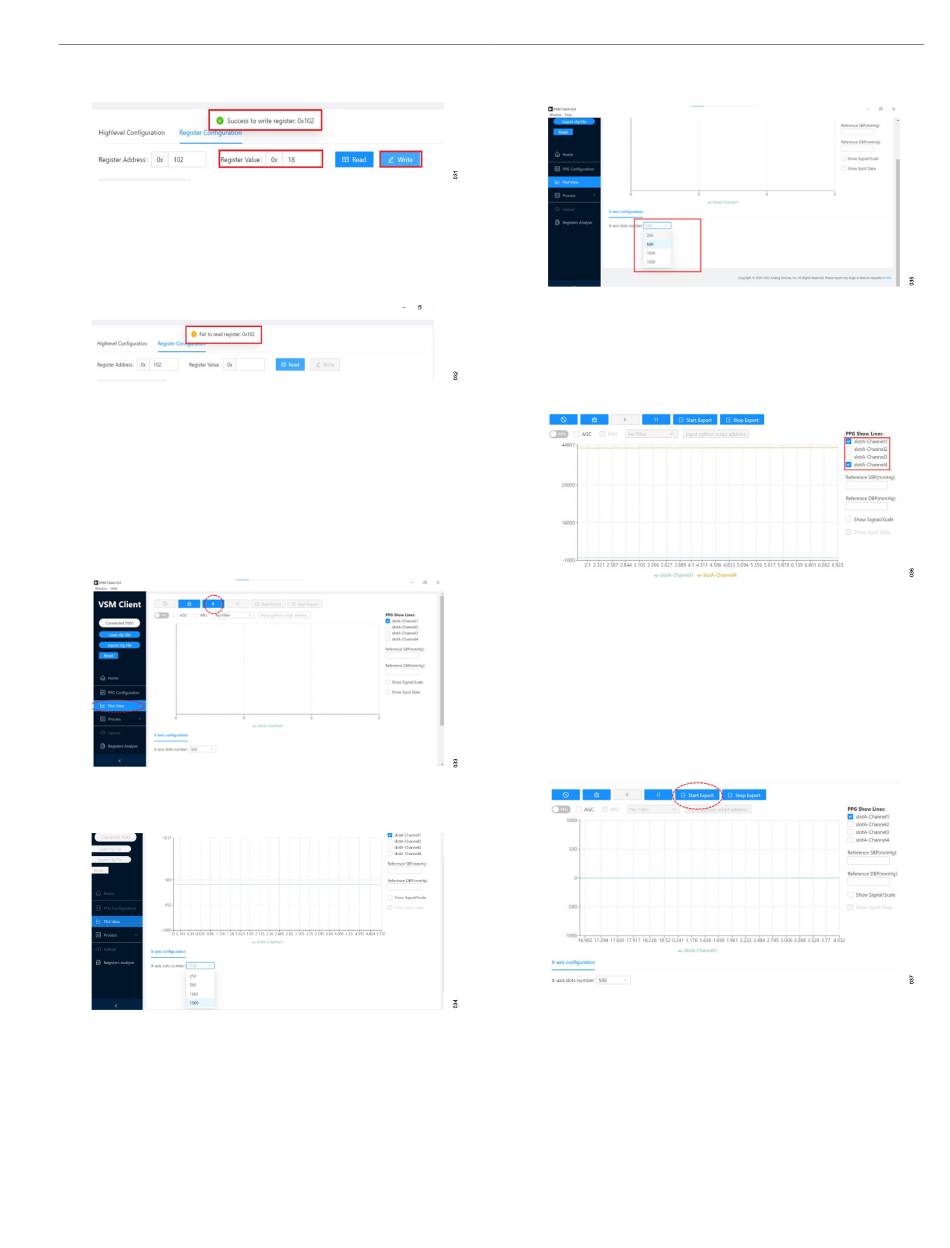

Figure 31. Writing Individual Register
6. If a Fail to read register or Fail to write register pop-up
appears (see Figure 32), check whether the device is discon-
nected or broken. If it still fails, reopen the VSM Client software
and restart the EVAL-VSMUCZ board.
Figure 32. Error Message when Configuring Individual Register

RECEIVE THE DATA

Take the following steps to receive data from the first in, first out
(FIFO) after running the EVAL-ADPD7000Z:
1. After connecting the device and loading the configuration file,
click Plot View to view the Plot View interface and click the run
button (see Figure 33).
Figure 33. Plot View Interface
2. The waveform appears in the Plot View page (see
Figure 34. Waveform
3. To adjust the dots number on the x-axis, select a value from the
X-axis dots number dropdown menu (see
analog.com
4. To view the waveforms of different slots and channels, select
5. Click Start Export to begin exporting the data received (see
Figure 34).
Figure 35).
EVAL-ADPD7000
Figure 35. Change X-Axis Dots Number
the check boxes under the PPG Show Lines: (see
36). Figure 36 shows slotA-Channel1 and slotA-Channel4
selected.
Figure 36. Select Slot and Channel Waveforms
Figure 37), and click Stop Export to stop exporting the data lo-
cally (see Figure 38). The exported data is saved in an .xlsx file.
If the export is successful, a Success to export data pop-up
appears (see Figure 39) noting the location of the .xlsx file as
follows: C:\Analog Devices\VSM Client\VSM_Client\Export.
In the Export folder, the file name notes the date, time, and
corresponding function of the export (see
Figure 37. Start Export
Figure
Figure 40).
