Analog Devices EVAL-ADPD7000 Manual page 6

User Guide
POWER ON THE SYSTEM
4. Select the EVAL-VSMUCZ from the list of devices (in this
example, Figure 14 shows the device as B8-7425A2). The
device is now connected (see

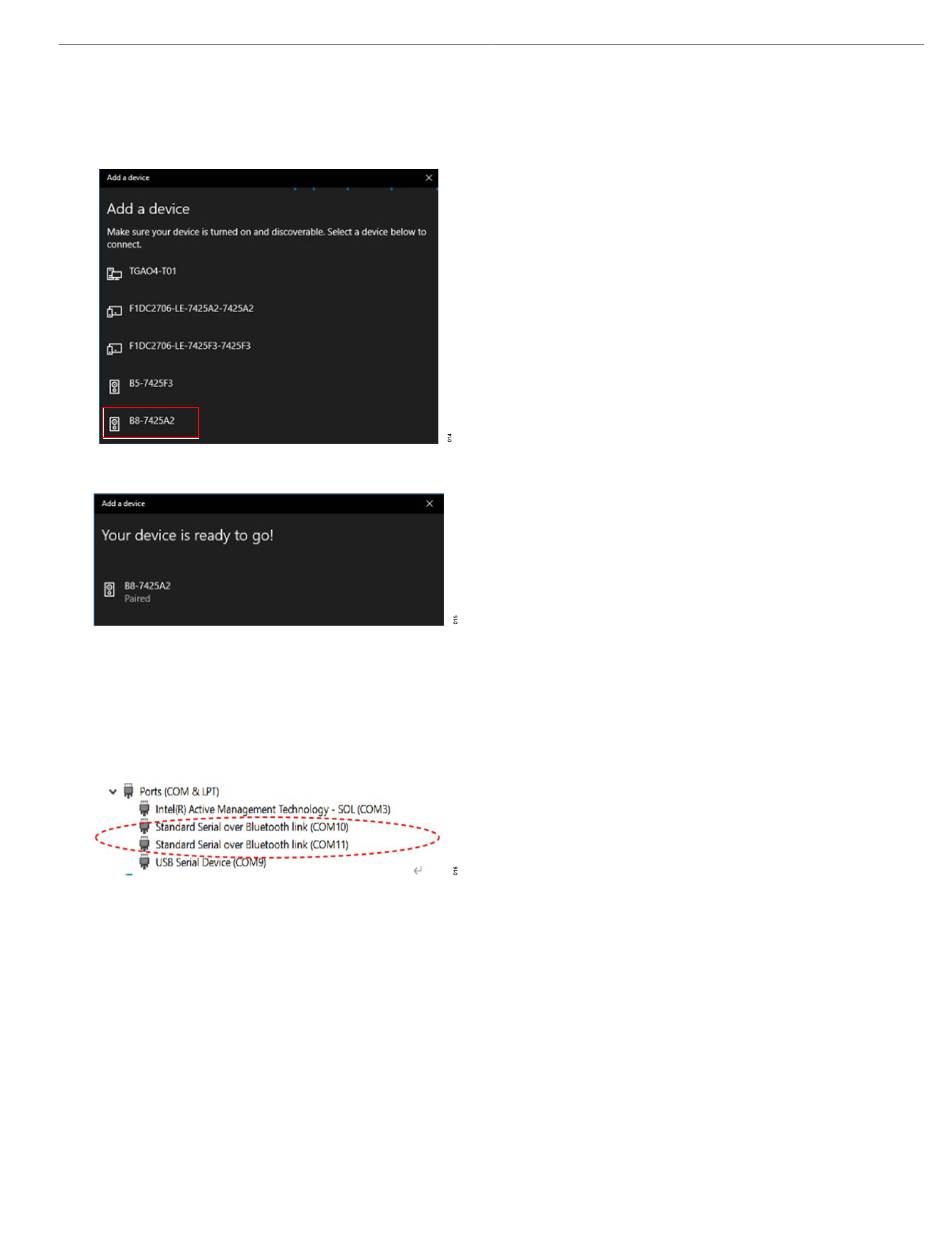

Figure 14. Select EVAL-VSMUCZ
Figure 15. Device Connected
After adding the EVAL-VSMUCZ, two Bluetooth serial ports
appear in the Device Manager window. For example, the
Standard Serial over Bluetooth link (COM10) and Standard
Serial over Bluetooth link (COM11) shown in
user selects one of these two ports in the VSM Client software.
Figure 16. Device Manager
analog.com
Figure 15).
Figure 16. The
EVAL-ADPD7000
Rev. 0 | 6 of 24
