User Guide

PREPARATION AND SETUP

EVAL-ADPD7000Z COMPONENTS

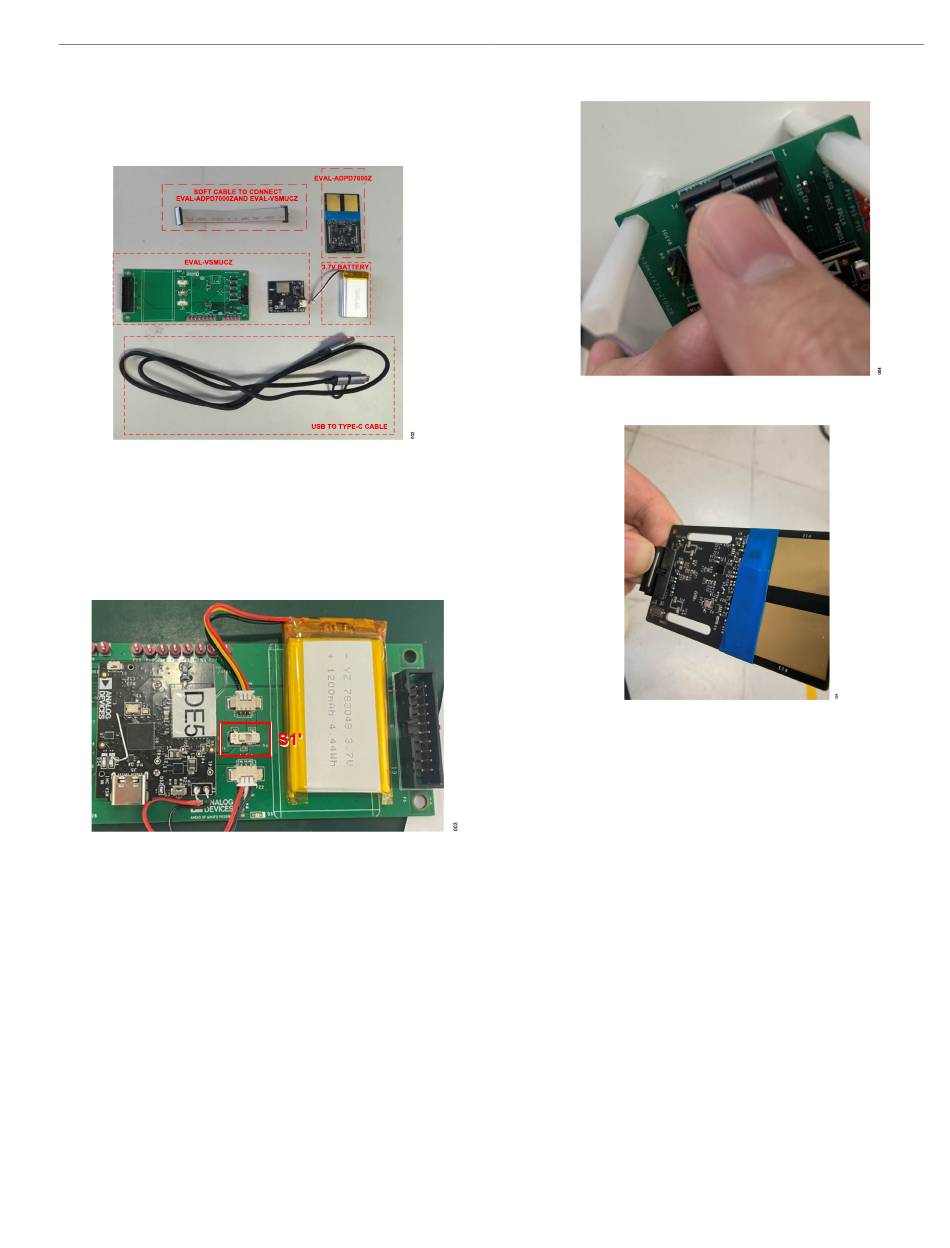

Figure 2 shows the components needed for evaluation.
Figure 2. EVAL-ADPD7000Z Demonstration Kit Components

PCB CONNECTION

Take the following steps to connect the printed circuit board (PCB).
1. Connect the battery to the connector on the
board. Ensure that the S1' switch is OFF (see
Figure 3. Battery Connected to the EVAL-ADPD7000Z
2. Connect the EVAL-VSMUCZ board to the EVAL-ADPD7000Z
(see Figure 4 and Figure 5). Ensure that the EVAL-VSMUCZ
and EVAL-ADPD7000Z have the same pin order, and that the
pin numbers match.
analog.com
EVAL-VSMUCZ
Figure 3).
EVAL-ADPD7000
Figure 4. EVAL-VSMUCZ Connection
Figure 5. EVAL-ADPD7000Z Connection
The blue tape shown in Figure 5
between the board and the skin.
is used for electrical isolation
Rev. 0 | 3 of 24
