User Guide

VSM CLIENT

FIND THE DEVICE ON THE VSM CLIENT

Take the following steps to find the device on the VSM Client
software:
1. After installing the VSM Client, power on the EVAL-ADPD7000Z
and launch the VSM Client.
2. Click Click to connect in the start interface of the VSM Client
(see Figure 17).

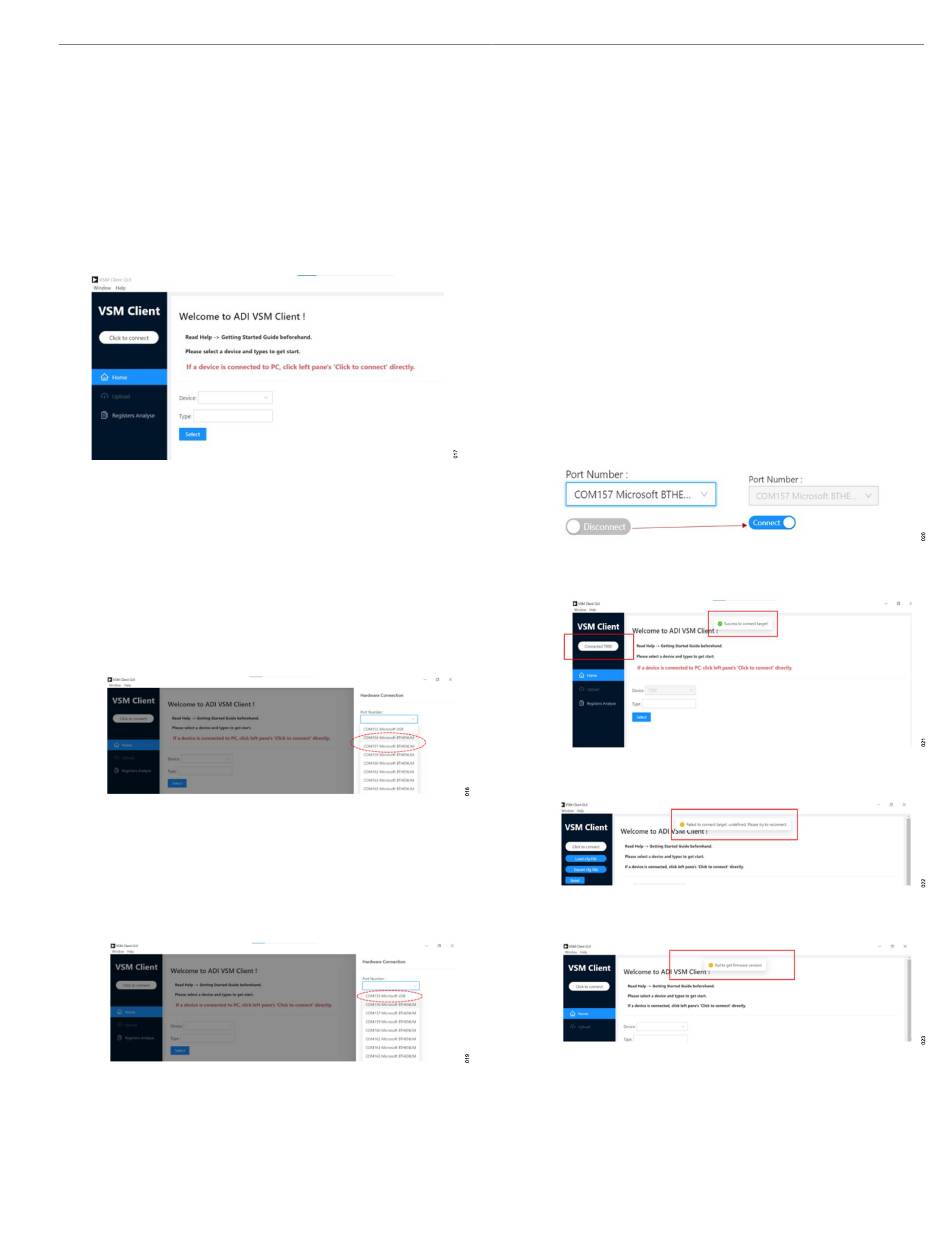

Figure 17. Start Interface of the VSM Client
3. In the Hardware Connection pane, select the communication
(COM) port according to the connection method as follows:
a. If using a Bluetooth connection, two ports are available. In
the example shown in
Microsoft BTHENUM and COM157 Microsoft BTHENUM.
Select one of the two ports. If the following steps cannot
be completed successfully with the selected port, select a
different port.
Figure 18. Bluetooth Connection COM Port
b. If using a cable connection, only one port is available (see
Figure 19). In the example shown in
is COM155 Microsoft USB. The COM serial port numbers
shown are examples only. Refer to the Device Manager for
the COM serial port numbers.
Figure 19. Cable Connection COM Port
The COM serial port numbers shown are examples only.
Refer to the Device Manager for the COM serial port
numbers.
analog.com
Figure 18, these ports are COM156
Figure 19, the port
EVAL-ADPD7000
4. Toggle the connection switch to Connect (see
When connected, a Success to connect target! pop-up ap-
pears at the top of the VSM Client window (see
and the Click to connect button changes to display Connect-
ed 7000. In addition, if using a Bluetooth connection, when
connected, a blue light in the black board of the EVAL-VSMUCZ
comes on. To disconnect the device, toggle the connection
switch to Disconnect. The following pop-up messages can
appear if the connection is unsuccessful:
a. Failed to connect target: undefined. Please try to recon-
nect. If this pop-up appears (see
other COM port and reconnect.
b. Fail to get firmware version! if this pop-up appears (see
Figure 23), the firmware version may not match the soft-
ware version. Update the firmware in the kit. For details on
updating the firmware, see the EVAL-ADPD7000Z product
page.
Figure 20. Toggle Connection Switch
Figure 21. Connection Successful
Figure 22. Failed to Connect Target Error
Figure 23. Failed to Get Firmware Version Error
5. From the Type dropdown menu, select one or more among the
four functions: ECG, PPG, BIOZ, or EDA (see
Select to enter the configuration interface.
Figure 20).
Figure 21),
Figure 22), select the
Figure 24). Click
Rev. 0 | 7 of 24
